接口自动化测试框架

本文介绍一个接口自动化测试框架。

Python+unittest+requests

实现结果：读取Excel接口测试用例并执行，输出测试报告。

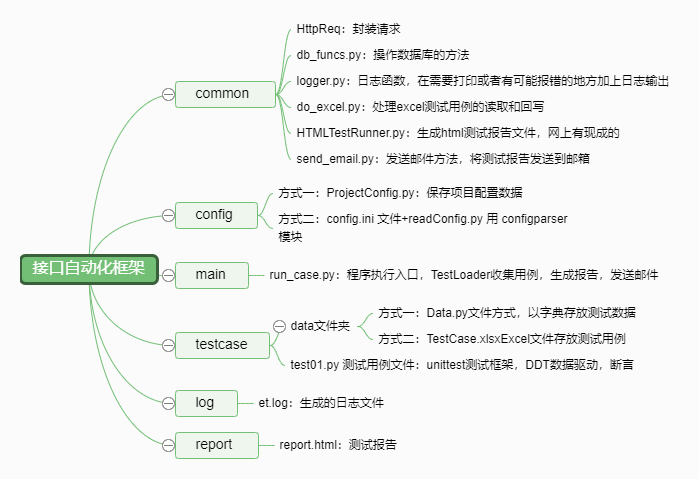

框架脑图

如图，各个模块及作用如上。

处理数据库

db_funcs用来处理数据库，实现数据库数据的读取操作。（如果没有用到则不需要）

import sqlite3
from config.ProjectConfig import ETConfig
from common.logger import write_logdef execute_db(sql):"""连接接口项目sqlite数据库，并执行sql语句:param sql: sql语句:return:"""try:# 打开数据库连接conn = sqlite3.connect("{0}\\studentManagementSystem\\db.sqlite3".format(ETConfig.PROJECT_DIR))# 新建游标cursor = conn.cursor()# 执行sqlcursor.execute(sql)# 获取执行结果result = cursor.fetchall()# 关闭游标、提交连接、关闭连接cursor.close()conn.commit()conn.close()return resultexcept sqlite3.OperationalError as e:write_log.error("数据库连接，执行失败：{}".format(e))def init_db():"""初始化数据库，删除掉departments的所有数据:return:"""execute_db("delete from departments;")if __name__ == '__main__':init_db()

处理Excel

用来对写在Excel中的测试用例进行读取，和测试结果的写回。


from openpyxl import load_workbook
class DoExcel:"""读写Excel文件"""def get_data(self,filename,sheetname):wb=load_workbook(filename)sheet=wb[sheetname]test_data=[]#读取Excel数据存入列表for i in range(2,sheet.max_row+1):row_data={}row_data['case_id'] = sheet.cell(i, 1).value #第一列为case_idrow_data['module']=sheet.cell(i,2).valuerow_data['title']=sheet.cell(i,3).valuerow_data['headers'] = sheet.cell(i, 4).valuerow_data['Cookie']=sheet.cell(i,5).valuerow_data['method'] = sheet.cell(i, 6).valuerow_data['url'] = sheet.cell(i, 7).valuerow_data['data'] = sheet.cell(i,8).valuerow_data['expected_code'] = sheet.cell(i, 9).value #预期状态码row_data['actual_code'] = sheet.cell(i, 10).value #实际状态码row_data['response']=sheet.cell(i,11).valuerow_data['auth']=sheet.cell(i,13).valuerow_data['file']=sheet.cell(i,14).valuetest_data.append((row_data))return test_data#写入Excel方法def write_back(self,filename,sheet_name,i,k,value):#i为写入的行k为写入的列wb=load_workbook(filename)sheet=wb[sheet_name]sheet.cell(i,k).value=value#写入表格第14列wb.save(filename)if __name__ == '__main__':test_data=DoExcel().get_data("D:/接口实战/接口自动化用例.xlsx",'storm')# print(test_data)DoExcel().write_back("D:/接口实战/接口自动化用例.xlsx",'storm',2,5)

封装请求方法

对请求方法进行封装，通过传入的方法，来调用对于的request方法

#封装请求，让代码更简洁，更具有可读性，并且更好维护
import requests
from  common.logger import write_log
class HttpReq(object):"""利用requests封装get请求和post请求需要传递的参数"""def __init__(self):self.headers = {"Content-Type": "application/json",# "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/98.0.4758.102 Safari/537.36" 伪装user-agent}@staticmethoddef http_request(url,data, http_method, headers=None, cookies=None, auth=None, file=None):try:if http_method.upper() == "GET":res = requests.get(url, data=data, headers=headers, cookies=cookies, auth=auth, files=file)return reselif http_method.upper() == "POST":res = requests.post(url, data=data, headers=headers, cookies=cookies, auth=auth, files=file)return reselse:# print("输入的请求方法不对")write_log.info("输入的请求方法不对")except Exception as e:# print("请求报错了:{0}".format(e))write_log.error("请求报错了:{0}".format(e))raise eETReq = HttpReq()

日志模块

本模块用来生成执行测试用例时产生的日志

import logging
import os
from logging import handlers
from config.ProjectConfig import ETConfigdef logger():# os.makedirs("{}logs".format(ETConfig.Log_DIR), exist_ok=True)#os.makedirs() 方法用于递归创建目录。log = logging.getLogger("{}\\et.log".format(ETConfig.Log_DIR))format_str = logging.Formatter('%(asctime)s [%(module)s] %(levelname)s [%(lineno)d] %(message)s', '%Y-%m-%d %H:%M:%S')# 按天录入日志，最多保存7天的日志handler = handlers.TimedRotatingFileHandler(filename=("{}/et.log".format(ETConfig.Log_DIR)), when='D', backupCount=7, encoding='utf-8')log.addHandler(handler)log.setLevel(logging.INFO)handler.setFormatter(format_str)return logwrite_log = logger()
write_log.info("你好")

发送邮件

本模块实现发送邮件功能，通过附件将html报告发送给对应的邮箱。

from email.mime.text import MIMEText
from email.mime.multipart import MIMEMultipart
from config.ProjectConfig import ETConfig
from common.logger import write_log
import smtplib
import time
class sendEmail:# 发送邮件函数def send_mail(self):"""发送邮件:return:"""# 打开报告文件# 邮箱信息self.smtpserver = ETConfig.EMAIL_CONFIG['EMAIL_SERVER']self.user = ETConfig.EMAIL_CONFIG['EMAIL_USER']self.password = ETConfig.EMAIL_CONFIG['EMAIL_PWD']self.sender = ETConfig.EMAIL_CONFIG['EMAIL_SENDER']self.receiver = ETConfig.EMAIL_CONFIG['EMAIL_RECEIVER']self.report_dir=ETConfig.Report_DIR# # html报告路径# self.report_dir = "{}report".format((ETConfig.Report_DIR))with open('{}\\et_result.html'.format(self.report_dir), 'rb') as f:mail_body = str(f.read(), encoding="utf-8")msg = MIMEMultipart('mixed')msg_html = MIMEText(mail_body, 'html', 'utf-8')msg_html["Content-Disposition"] = 'attachment; filename="TestReport.html"'msg.attach(msg_html)msg_html1 = MIMEText(mail_body, 'html', 'utf-8')msg.attach(msg_html1)#附件msg['Subject'] = u'自动化测试报告 {}'.format(time.strftime("%Y-%m-%d", time.localtime()))msg['From'] = u'AutoTest <%s>' % self.sendermsg['To'] = self.receiver# msg['Cc'] = self.cctry:smtp = smtplib.SMTP()smtp.connect(self.smtpserver)smtp.login(self.user, self.password)smtp.sendmail(self.sender, self.receiver, msg.as_string())smtp.quit()write_log.info("发送邮件成功！")except Exception as e:write_log.error("发送邮件失败：{}".format(e))

封装配置

ProjectConfig.py用来对项目用到的配置进行进行封装。

import os
class ProjectConfig(object):
#封装配置version="v1.0"url="XXX"
# 替换为你本地的接口项目路径（注意不是自动化项目路径）PROJECT_DIR = "C:\\Users\\010702\\PycharmProjects\\easytest\\接口环境\\"# 自动化测试项目目录TEST_DIR = "D:\APItest"Log_DIR="D:\\APItest\\log"Report_DIR="D:\\APItest\\report"
#邮件配置信息EMAIL_CONFIG={"EMAIL_SERVER":"smtp.qq.com",#服务器"EMAIL_USER":"XXX","EMAIL_PWD":"XXXXXXmdhje",#授权码"EMAIL_SENDER":"XXX","EMAIL_RECEIVER":"XXX"}
ETConfig=ProjectConfig()

测试用例模块

getUserStorm.py测试用例文件。


#storm项目获取用户信息 DDT+Excel Excel有几条数据，就执行几次用例
import unittest
import requests
import json
from config.ProjectConfig import ETConfig
from testcase.data.DepartmentData import ADD_DATA
from ddt import ddt,data,unpack
from common.wrapers import *
#这里竟然可以只导入一个对象
from common.HttpReq import ETReq
from common.doExcel import DoExcel
from common.HttpReq import HttpReq
from common.is_json import IsJson
from common.logger import write_log
import warnings
@ddt
class GetUserTest(unittest.TestCase):test_data = DoExcel().get_data("D:/接口实战/接口自动化用例.xlsx", 'getuser')#只要哪一行有值，就会被读为一条用例@classmethoddef setUpClass(cls):write_log.info("------------------")"""获取用户信息"""def setUp(self):warnings.simplefilter('ignore',ResourceWarning)def tearDown(self):pass@write_case_log()@data(*test_data)def test_get_user_info(self,item):print("正在执行测试用例{0}".format(item['title']))r=HttpReq().http_request(url=item['url'],data=(item['data']),http_method=item['method'])# print("响应文本为:"+r.text)try:self.assertEqual(item['expected_code'], r.json()['code'])  # 预期结果和直接返回的状态码比较TestResult='PASS'# print("测试用例执行成功")write_log.info("测试用例执行成功")except AssertionError as e:TestResult='FAIL'# print("执行用例出错(0)".format(e))write_log.error("执行用例出错{0}".format(e))raise efinally:DoExcel().write_back("D:/接口实战/接口自动化用例.xlsx", 'getuser',item['case_id']+1,10,r.json()['code'])DoExcel().write_back("D:/接口实战/接口自动化用例.xlsx", 'getuser',item['case_id']+1,11,r.text)DoExcel().write_back("D:/接口实战/接口自动化用例.xlsx", 'getuser',item['case_id']+1,12,TestResult)#写入结果# r=IsJson(r)# self.assertEqual(item['expected'],r['code'])#结果和响应结果中的code边角if __name__ == '__main__':# unittest.main()suite=unittest.TestSuite()suite.addTest(GetUserTest("test_get_user_info"))# suite.addTest(AddDepartmentTest("test_add_department_2"))runner=unittest.TextTestResult()test_result=runner.run(suite)

执行用例

run.py用来执行用例，并生成测试报告。

import unittest
import platform
import os.path
from common.logger import write_log
from config.ProjectConfig import ETConfig
from common.HTMLTestRunnerCNs import HTMLTestRunner
from common.send_email import sendEmail
class RunCase(object):report_dir=ETConfig.Report_DIR#执行用例函数def run_case(self):# 运行测试用例并生成html测试报告with open('{}//et_result.html'.format(self.report_dir), 'wb') as fp:try:write_log.info("RunCase执行用例--开始")suite = unittest.TestSuite()tests = unittest.defaultTestLoader.discover('..\\testcase', pattern='*Storm.py')suite.addTest(tests)runner = HTMLTestRunner(stream=fp, title=u'自动化测试报告', description=u'运行环境：{}'.format(platform.platform()),tester="istester")runner.run(suite)write_log.info("RunCase执行用例--结束")except Exception as e:write_log.error("RunCase执行用例，生成报告失败：{}".format(e))if __name__ == '__main__':test = RunCase()#创建对象test.run_case()#调用测试用例执行函数sendEmail().send_mail()#调用发送邮件函数
