本系列所有的代码和数据都可以从陈强老师的个人主页上下载：Python数据程序
参考书目：陈强.机器学习及Python应用. 北京：高等教育出版社, 2021.
本系列基本不讲数学原理，只从代码角度去让读者们利用最简洁的Python代码实现机器学习方法。
梯度提升也是属于集成方法，最早的提升法是Adaboost，后来拓宽到梯度提升法GBM，然后又有了一些改进的版本，例如XGboost，LightGBM，都是目前竞赛，项目会采用的主流算法。是真正的具有使用做项目的价值。
首先采用GBM去拟合正弦函数，观察估计器个数对于拟合曲线的影响。
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.ensemble import GradientBoostingRegressornp.random.seed(1)
x = np.random.uniform(0, 1, 500)
y = np.sin(2 * np.pi * x) + np.random.normal(0, 0.1, 500)
data = pd.DataFrame(x, columns=['x'])
data['y'] = y

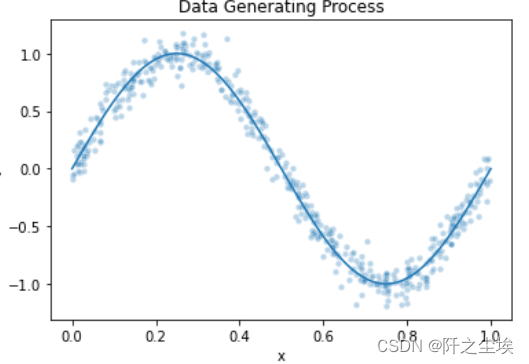

w = np.linspace(0, 1, 100)# Plot the DGP
sns.scatterplot(x='x', y='y', s=20, data=data, alpha=0.3)
plt.plot(w, np.sin(2 * np.pi * w))
plt.title('Data Generating Process')

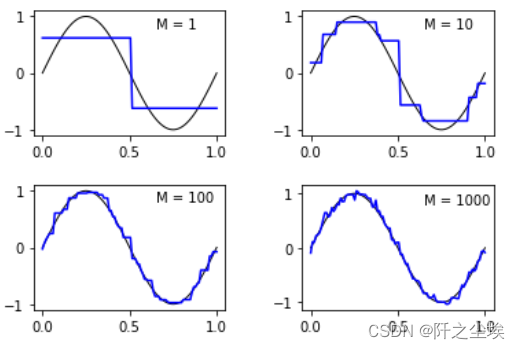

拟合
for i, m in zip([1, 2, 3, 4], [1, 10, 100, 1000]):model = GradientBoostingRegressor(n_estimators=m, max_depth=1, learning_rate=1, random_state=123)model.fit(x.reshape(-1, 1), y)pred = model.predict(w.reshape(-1, 1))plt.subplot(2, 2, i)plt.plot(w, np.sin(2 * np.pi * w), 'k', linewidth=1)plt.plot(w, pred, 'b')plt.text(0.65, 0.8, f'M = {m}')
plt.subplots_adjust(wspace=0.4, hspace=0.4)## GBM for Regression on Boston Housing Data
可以看出，估计器个数越多，回归结果越来越接近真实值。
回归提升法的Python案例
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.model_selection import train_test_split
from sklearn.model_selection import KFold, StratifiedKFold
from sklearn.model_selection import RandomizedSearchCV
from sklearn.metrics import mean_squared_error
from sklearn.linear_model import LinearRegressionfrom sklearn.ensemble import AdaBoostClassifier
from sklearn.ensemble import GradientBoostingClassifier
from sklearn.ensemble import GradientBoostingRegressor
from sklearn.datasets import load_boston
from sklearn.metrics import cohen_kappa_score
from sklearn.metrics import plot_roc_curve
from sklearn.inspection import plot_partial_dependence依旧采用波士顿房价数据集。
Boston = load_boston()
X = pd.DataFrame(Boston.data, columns=Boston.feature_names)
y = Boston.target
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=1)model = GradientBoostingRegressor(random_state=123)
model.fit(X_train, y_train)
model.score(X_test, y_test)
gbm的参数太多了，网格化搜不完，使用随机搜索超参数
# Choose best hyperparamters by RandomizedSearchCVparam_distributions = {'n_estimators': range(1, 300), 'max_depth': range(1, 10),'subsample': np.linspace(0.1,1,10), 'learning_rate': np.linspace(0.1, 1, 10)}
kfold = KFold(n_splits=10, shuffle=True, random_state=1)
model = RandomizedSearchCV(estimator=GradientBoostingRegressor(random_state=123),param_distributions=param_distributions, cv=kfold, n_iter=300, random_state=0)

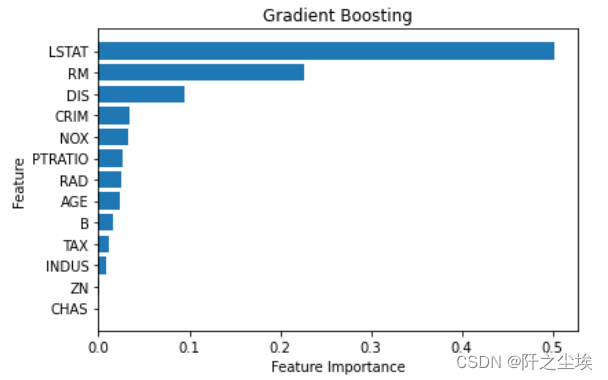

model.fit(X_train, y_train)model.best_params_model = model.best_estimator_model.score(X_test, y_test)和随机森林一样，可以画变量重要性图
sorted_index = model.feature_importances_.argsort()
plt.barh(range(X.shape[1]), model.feature_importances_[sorted_index])
plt.yticks(np.arange(X.shape[1]), X.columns[sorted_index])
plt.xlabel('Feature Importance')
plt.ylabel('Feature')
plt.title('Gradient Boosting')
plt.tight_layout()

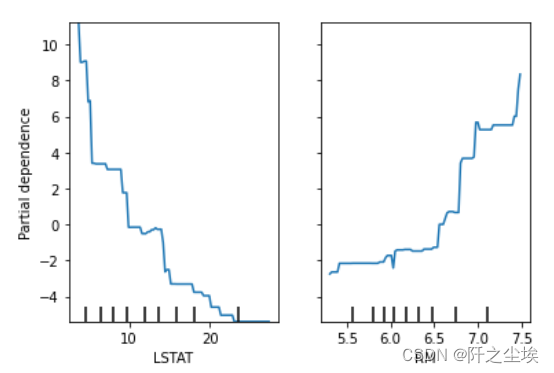

偏依赖图
plot_partial_dependence(model, X_train, ['LSTAT', 'RM'])

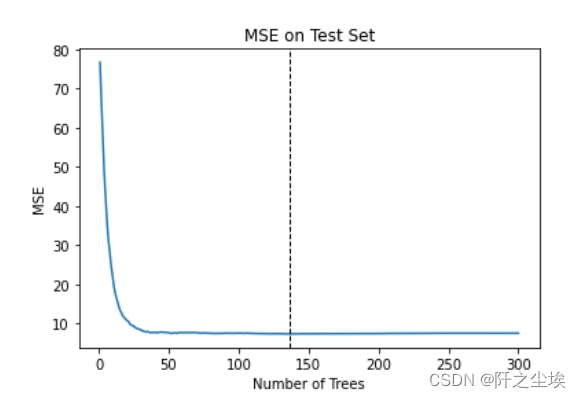

手工循环找最优超参数n（估计器的个数）
# Number of trees and prediction performance
scores = []
for n_estimators in range(1, 301):model = GradientBoostingRegressor(n_estimators=n_estimators, subsample=0.5, max_depth=5, learning_rate=0.1, random_state=123)model.fit(X_train, y_train)pred = model.predict(X_test)mse = mean_squared_error(y_test, pred)scores.append(mse)index = np.argmin(scores)
range(1, 301)[index]plt.plot(range(1, 301), scores)
plt.axvline(range(1, 301)[index], linestyle='--', color='k', linewidth=1)
plt.xlabel('Number of Trees')
plt.ylabel('MSE')
plt.title('MSE on Test Set')
137时mse最小
分类提升法的Python案例
采用一个玻璃种类的多分类数据集，读取数据，划分训练测试集
#多分类问题
### Boosting for Multiple Classification
Glass = pd.read_csv('Glass.csv')
Glass.shapeX = Glass.iloc[:, :-1]
y = Glass.iloc[:, -1]
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, stratify=y, random_state=0)model = GradientBoostingClassifier(random_state=123)
model.fit(X_train, y_train)
model.score(X_test, y_test)随机搜参
param_distributions = {'n_estimators': range(1, 300),'max_depth': range(1, 10),'subsample': np.linspace(0.1, 1, 10),'learning_rate': np.linspace(0.1, 1, 10)}
kfold = StratifiedKFold(n_splits=5, shuffle=True, random_state=1)
model = RandomizedSearchCV(estimator=GradientBoostingClassifier(random_state=123),param_distributions=param_distributions, n_iter=50, cv=kfold, random_state=66)
model.fit(X_train, y_train)model.best_params_model = model.best_estimator_

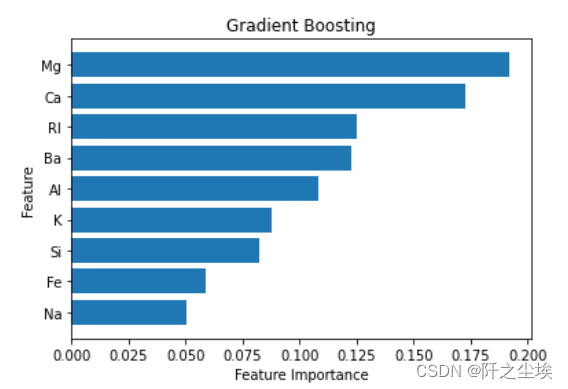

model.score(X_test, y_test)变量重要性排序图
sorted_index = model.feature_importances_.argsort()
plt.barh(range(X.shape[1]), model.feature_importances_[sorted_index])
plt.yticks(np.arange(X.shape[1]), X.columns[sorted_index])
plt.xlabel('Feature Importance')
plt.ylabel('Feature')
plt.title('Gradient Boosting')

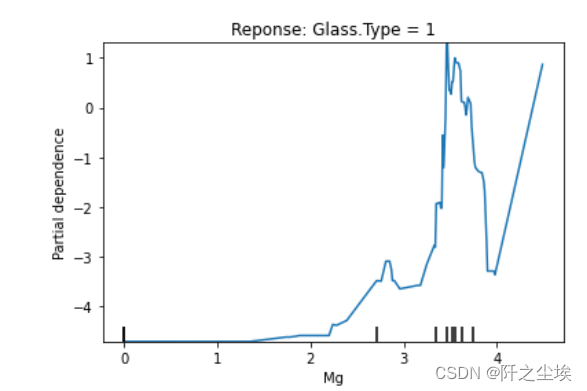

偏依赖图
# Partial Dependence Plot
plot_partial_dependence(model, X_train, ['Mg'], target=1)
plt.title('Reponse: Glass.Type = 1')

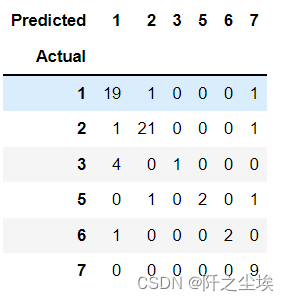

计算混淆矩阵
# Prediction Performance
prob = model.predict_proba(X_test)
prob[:3, :]pred = model.predict(X_test)
pred[:5]pd.crosstab(y_test, pred, rownames=['Actual'], colnames=['Predicted'])
XGboos的Pythont案例
### XGBoost for Boston Housing Data# conda install py-xgboost
import xgboost as xgbX, y= load_boston(return_X_y=True)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=1)objective='reg:squarederror'参数表示回归问题
model = xgb.XGBRegressor(objective='reg:squarederror', n_estimators=300, max_depth=6, subsample=0.6, colsample_bytree=0.8, learning_rate=0.1, random_state=0)
model.fit(X_train, y_train)
model.score(X_test, y_test)计算误差
pred = model.predict(X_test)
rmse = np.sqrt(mean_squared_error(y_test, pred))
rmse交叉验证找超参数
params = {'objective': 'reg:squarederror', 'max_depth': 6, 'subsample': 0.6,'colsample_bytree': 0.8, 'learning_rate': 0.1}dtrain = xgb.DMatrix(data=X_train, label=y_train)
type(dtrain)results = xgb.cv(dtrain=dtrain, params=params, nfold=10, metrics="rmse",num_boost_round=300, as_pandas=True, seed=123)

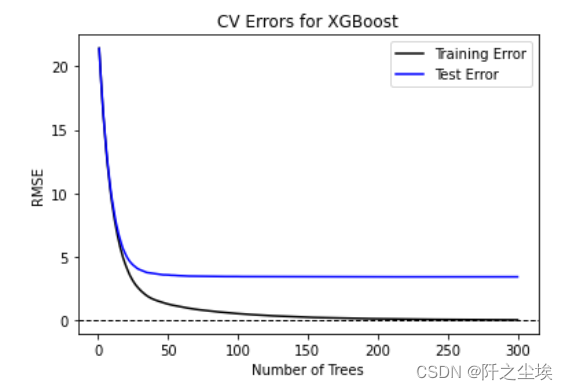

results.shaperesults.tail()# Plot CV Errors
plt.plot(range(1, 301), results['train-rmse-mean'], 'k', label='Training Error')
plt.plot(range(1, 301), results['test-rmse-mean'], 'b', label='Test Error')
plt.xlabel('Number of Trees')
plt.ylabel('RMSE')
plt.axhline(0, linestyle='--', color='k', linewidth=1)
plt.legend()
plt.title('CV Errors for XGBoost')
xgboost的分类问题
### XGBoost for spam Dataspam = pd.read_csv('spam.csv')
X = spam.iloc[:, :-1]
y = spam.iloc[:, -1]
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, stratify=y, random_state=0)model = xgb.XGBClassifier(objective='binary:logistic', n_estimators=300, max_depth=6, subsample=0.6, colsample_bytree=0.8, learning_rate=0.1, random_state=0)
model.fit(X_train, y_train)binary:logistic表是使用逻辑损失函数去分类
计算混淆矩阵
model.score(X_test, y_test)prob = model.predict_proba(X_test)
prob[:5, :]pred = model.predict(X_test)
pred[:5]pd.crosstab(y_test, pred, rownames=['Actual'], colnames=['Predicted'])
xgboost和lightgbm用法还有很多，后面应该还会单独出一章
