MFC tabcontrol切换界面

article/2025/10/10 0:17:36

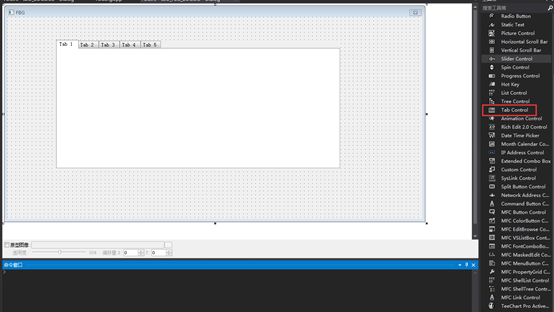

1.添加控件tabcontrol。

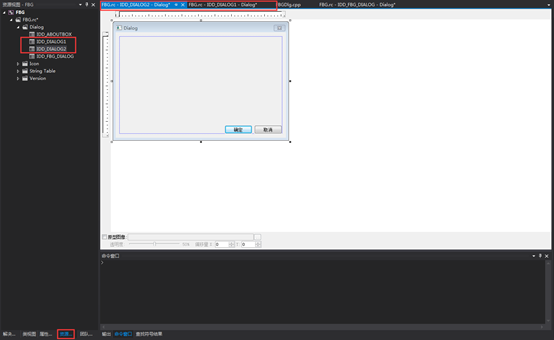

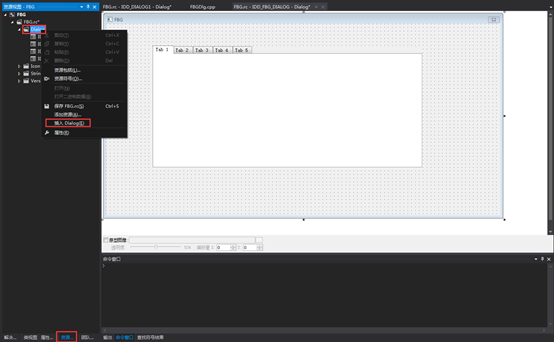

2.切换到资源界面->Dialog->插入Dialog，创建两个Dialog界面。

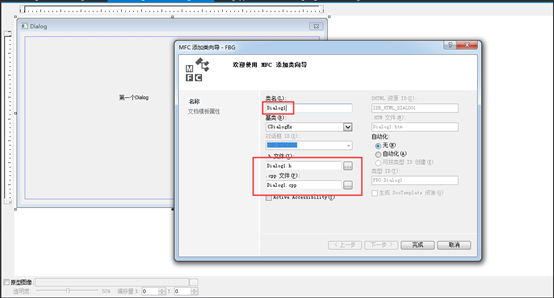

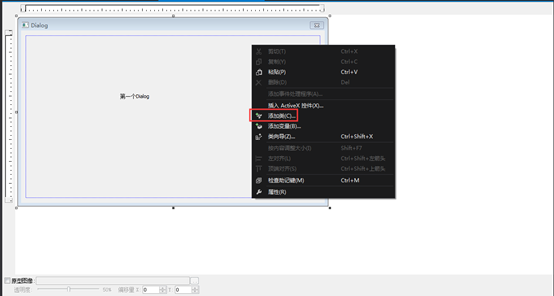

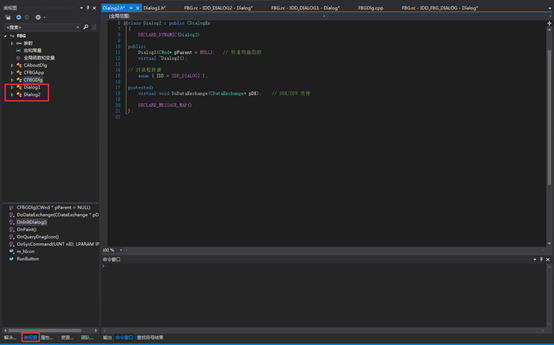

3.为新建的两个Dialog添加类，在新建的Dialog界面右键类向导添加对应的类。

4.添加TabSheet.cpp 和TabSheet.h 这两个文件从网上下载即可，具体源码如下：

TabSheet.cpp：

// TabSheet.cpp : implementation file
#include "stdafx.h"
#include "TabSheet.h"
#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif
/
// CTabSheet
CTabSheet::CTabSheet()
{  m_nNumOfPages = 0;  m_nCurrentPage = 0;
}  CTabSheet::~CTabSheet()
{
}  BEGIN_MESSAGE_MAP(CTabSheet, CTabCtrl)  //{{AFX_MSG_MAP(CTabSheet)  ON_WM_LBUTTONDOWN()  //}}AFX_MSG_MAP
END_MESSAGE_MAP()  /
// CTabSheet message handlers  BOOL CTabSheet::AddPage(LPCTSTR title, CDialog *pDialog,UINT ID)
{  if( MAXPAGE == m_nNumOfPages )  return FALSE;  m_nNumOfPages++;  m_pPages[m_nNumOfPages-1] = pDialog;  m_IDD[m_nNumOfPages-1] = ID;  m_Title[m_nNumOfPages-1] = title;  return TRUE;
}  void CTabSheet::SetRect()
{  CRect tabRect, itemRect;  int nX, nY, nXc, nYc;  GetClientRect(&tabRect);  GetItemRect(0, &itemRect);  nX=itemRect.left;  nY=itemRect.bottom+1;  nXc=tabRect.right-itemRect.left-2;  nYc=tabRect.bottom-nY-2;  m_pPages[0]->SetWindowPos(&wndTop, nX, nY, nXc, nYc, SWP_SHOWWINDOW);  for( int nCount=1; nCount < m_nNumOfPages; nCount++ )  m_pPages[nCount]->SetWindowPos(&wndTop, nX, nY, nXc, nYc, SWP_HIDEWINDOW);  }  void CTabSheet::Show()
{  for( int i=0; i < m_nNumOfPages; i++ )  {  m_pPages[i]->Create( m_IDD[i], this );  InsertItem( i, m_Title[i] );  }  m_pPages[0]->ShowWindow(SW_SHOW);  for( int i=1; i < m_nNumOfPages; i++)  m_pPages[i]->ShowWindow(SW_HIDE);  SetRect();  }  void CTabSheet::OnLButtonDown(UINT nFlags, CPoint point)
{  CTabCtrl::OnLButtonDown(nFlags, point);  if(m_nCurrentPage != GetCurFocus())  {  m_pPages[m_nCurrentPage]->ShowWindow(SW_HIDE);  m_nCurrentPage=GetCurFocus();  m_pPages[m_nCurrentPage]->ShowWindow(SW_SHOW);  //      m_pPages[m_nCurrentPage]->SetFocus();  }
}  int CTabSheet::SetCurSel(int nItem)
{  if( nItem < 0 || nItem >= m_nNumOfPages)  return -1;  int ret = m_nCurrentPage;  if(m_nCurrentPage != nItem )  {  m_pPages[m_nCurrentPage]->ShowWindow(SW_HIDE);  m_nCurrentPage = nItem;  m_pPages[m_nCurrentPage]->ShowWindow(SW_SHOW);  //      m_pPages[m_nCurrentPage]->SetFocus();  CTabCtrl::SetCurSel(nItem);  }  return ret;
}  int CTabSheet::GetCurSel()
{  return CTabCtrl::GetCurSel();
} //释放page资源
void CTabSheet::Free()
{CTabCtrl::DeleteAllItems();for( int i=0; i < m_nNumOfPages; i++ )  {  m_pPages[i]->DestroyWindow();m_IDD[i] = NULL;m_Title[i] = NULL;}  m_nCurrentPage = 0;m_nNumOfPages = 0;//CTabCtrl::DestroyWindow();  //注意不要将this指针释放了
}

TabSheet.h

#if !defined(AFX_TABSHEET_H__42EE262D_D15F_46D5_8F26_28FD049E99F4__INCLUDED_)
#define AFX_TABSHEET_H__42EE262D_D15F_46D5_8F26_28FD049E99F4__INCLUDED_  #if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
// TabSheet.h : header file
//  /
// CTabSheet window
#define MAXPAGE 16  class CTabSheet : public CTabCtrl
{  // Construction
public:  CTabSheet();  // Attributes
public:  // Operations
public:  // Overrides  // ClassWizard generated virtual function overrides  //{{AFX_VIRTUAL(CTabSheet)  //}}AFX_VIRTUAL  // Implementation
public:  int GetCurSel();  int SetCurSel(int nItem);  void Show();  void Free();void SetRect();  BOOL AddPage(LPCTSTR title, CDialog *pDialog, UINT ID);  virtual ~CTabSheet();  // Generated message map functions
protected:  LPCTSTR m_Title[MAXPAGE];  UINT m_IDD[MAXPAGE];  CDialog* m_pPages[MAXPAGE];  int m_nNumOfPages;  int m_nCurrentPage;  //{{AFX_MSG(CTabSheet)  afx_msg void OnLButtonDown(UINT nFlags, CPoint point);  //}}AFX_MSG  DECLARE_MESSAGE_MAP()
};  /  //{{AFX_INSERT_LOCATION}}
// Microsoft Visual C++ will insert additional declarations immediately before the previous line.  #endif // !defined(AFX_TABSHEET_H__42EE262D_D15F_46D5_8F26_28FD049E99F4__INCLUDED_)

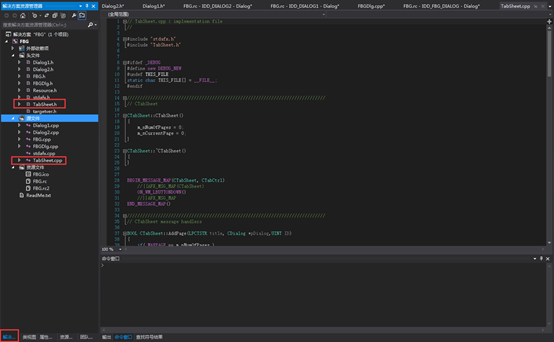

5.将TabSheet.cpp和TabSheet.h添加到工程中。
