Mysql基于Amoeba_读写分离搭架

一、Amoeba简介

Amoeba是一个以MySQL为底层数据存储，并对应用提供MySQL协议接口的proxy。它集中地响应应用的请求，依据用户事先设置的规则，将SQL请求发送到特定的数据库上执行。基于此可以实现负载均衡、读写分离、高可用性等需求，

Amoeba相当于一个SQL请求的路由器，目的是为负载均衡、读写分离、高可用性提供机制，而不是完全实现它们。需要结合使用MySQL的 Replication等机制来实现副本同步等功能

二、Amoeba搭建过程

在搭建amoeba过程中，我们首先需要准备环境，这里我们提供了三台Linux服务器，分别是：

Amoeba for MySQL：centos-node5(主机名）

master：centos-node6

slave：centos-node7

Amoeba 服务器，master 主服务器，slave 从服务器，服务上分别都安装了，Jdk1.7以上版本，相关jdk安装参考

http://blog.csdn.net/liulihui1988/article/details/51985517;

并且已经安装了相关的主从数据库，相关安装参考：

http://blog.csdn.net/liulihui1988/article/details/79066755

Linux 命令下载地址：

wget http://nchc.dl.sourceforge.net/project/amoeba/Amoeba%20for%20mysql/2.x/amoeba-mysql-binary-2.1.0-RC5.tar.gz

Amoeba 安装

命令创建amoeba文件夹，在/usr/local/amoeba目录下执行下载以上地址

mkdir /usr/local/amoeba

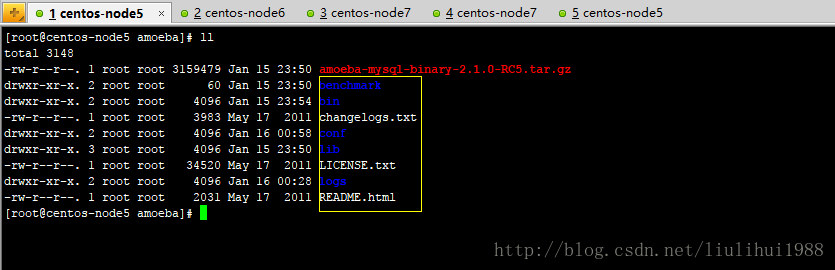

执行以下命令解压在当前文件夹下

# tar xvf amoeba-mysql-binary-2.1.0-RC5.tar.gz

这里写图片描述

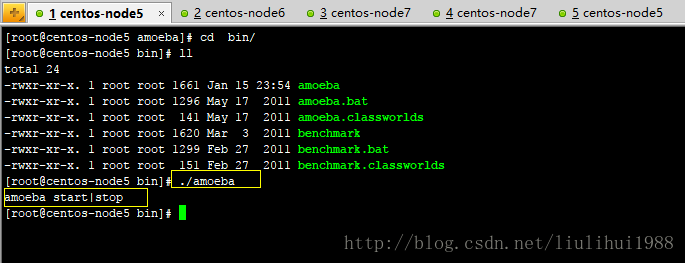

验证Amoeba是否安装成功的命令在 /usr/local/amoeba/bin/ 目录下执行，

# ./amoeba

这里写图片描述

如上图，表示安装成功

修改配置文件 dbServer.xml

dbServer.xml 文件在 /usr/local/amoeba/conf/目录下命令编辑

# vim dbServer.xml

需要修改的代码部分

 <!-- 数据库连接配置的公共部分 --><dbServer name="abstractServer" abstractive="true"><factoryConfig class="com.meidusa.amoeba.mysql.net.MysqlServerConnectionFactory"><property name="manager">${defaultManager}</property><property name="sendBufferSize">64</property><property name="receiveBufferSize">128</property><!-- mysql port 端口号 --><property name="port">3306</property><!-- mysql schema amoeba 访问主从数据库真实库--><property name="schema">test</property><!-- mysql user 主从数据库分配给Amoeba访问数据的用户名 --><property name="user">proxyuser</property><!--  mysql password 主从数据库分配给Amoeba访问数据的密码--><property name="password">123456</property></factoryConfig><poolConfig class="com.meidusa.amoeba.net.poolable.PoolableObjectPool"><property name="maxActive">500</property><property name="maxIdle">500</property><property name="minIdle">10</property><property name="minEvictableIdleTimeMillis">600000</property><property name="timeBetweenEvictionRunsMillis">600000</property><property name="testOnBorrow">true</property><property name="testWhileIdle">true</property></poolConfig></dbServer><!-- Master 的独立部分，也就只有 IP 了这里 写了主机名 --><dbServer name="master"  parent="abstractServer"><factoryConfig><!-- mysql ip --><property name="ipAddress">centos-node6</property></factoryConfig></dbServer><!-- Slave 的独立部分，也就只有 IP 了这里 写了主机名 ,如果有多个Slave服务器，可以配置多个dbServer --><dbServer name="slave"  parent="abstractServer"><factoryConfig><!-- mysql ip --><property name="ipAddress">centos-node7</property></factoryConfig></dbServer><!-- 数据库池，虚拟服务器，实现读取的负载均衡，如果有多个Slave，则<property name="poolNames">slave1,slave2</property>用逗号隔开 --><dbServer name="slaves" virtual="true"><poolConfig class="com.meidusa.amoeba.server.MultipleServerPool"><!-- Load balancing strategy: 1=ROUNDROBIN , 2=WEIGHTBASED , 3=HA--><property name="loadbalance">1</property><!-- Separated by commas,such as: server1,server2,server1 --><property name="poolNames">slave</property></poolConfig></dbServer>

修改amoeba.xml文件，设置读写分离

 <proxy><!-- service class must implements com.meidusa.amoeba.service.Service --><service name="Amoeba for Mysql" class="com.meidusa.amoeba.net.ServerableConnectionManager"><!-- Amoeba 端口号 ，客户端client 链接amoeba端口号，不能和主从数据库 冲突--><property name="port">8066</property><!-- bind ipAddress --><!--<property name="ipAddress">127.0.0.1</property>--><property name="manager">${clientConnectioneManager}</property><property name="connectionFactory"><bean class="com.meidusa.amoeba.mysql.net.MysqlClientConnectionFactory"><property name="sendBufferSize">128</property><property name="receiveBufferSize">64</property></bean></property><property name="authenticator"><bean class="com.meidusa.amoeba.mysql.server.MysqlClientAuthenticator"><!-- Amoeba 账号 ，客户端client 链接amoeba端 账号--><property name="user">root</property><!-- Amoeba 账号 ，客户端client 链接amoeba端 密码--><property name="password">root</property><property name="filter"><bean class="com.meidusa.amoeba.server.IPAccessController"><property name="ipFile">${amoeba.home}/conf/access_list.conf</property></bean></property></bean></property></service><!-- server class must implements com.meidusa.amoeba.service.Service --><service name="Amoeba Monitor Server" class="com.meidusa.amoeba.monitor.MonitorServer"><!-- port --><!--  default value: random number<property name="port">9066</property>--><!-- bind ipAddress --><property name="ipAddress">127.0.0.1</property><property name="daemon">true</property><property name="manager">${clientConnectioneManager}</property><property name="connectionFactory"><bean class="com.meidusa.amoeba.monitor.net.MonitorClientConnectionFactory"></bean></property></service><runtime class="com.meidusa.amoeba.mysql.context.MysqlRuntimeContext"><!-- proxy server net IO Read thread size --><property name="readThreadPoolSize">20</property><!-- proxy server client process thread size --><property name="clientSideThreadPoolSize">30</property><!-- mysql server data packet process thread size --><property name="serverSideThreadPoolSize">30</property><!-- per connection cache prepared statement size  --><property name="statementCacheSize">500</property><!-- query timeout( default: 60 second , TimeUnit:second) --><property name="queryTimeout">60</property></runtime></proxy><!--Each ConnectionManager will start as threadmanager responsible for the Connection IO read , Death Detection--><connectionManagerList><connectionManager name="clientConnectioneManager" class="com.meidusa.amoeba.net.MultiConnectionManagerWrapper"><property name="subManagerClassName">com.meidusa.amoeba.net.ConnectionManager</property><!--default value is avaliable Processors<property name="processors">5</property>--></connectionManager><connectionManager name="defaultManager" class="com.meidusa.amoeba.net.MultiConnectionManagerWrapper"><property name="subManagerClassName">com.meidusa.amoeba.net.AuthingableConnectionManager</property><!--default value is avaliable Processors<property name="processors">5</property>--></connectionManager></connectionManagerList><!-- default using file loader --><dbServerLoader class="com.meidusa.amoeba.context.DBServerConfigFileLoader"><property name="configFile">${amoeba.home}/conf/dbServers.xml</property></dbServerLoader><queryRouter class="com.meidusa.amoeba.mysql.parser.MysqlQueryRouter"><property name="ruleLoader"><bean class="com.meidusa.amoeba.route.TableRuleFileLoader"><property name="ruleFile">${amoeba.home}/conf/rule.xml</property><property name="functionFile">${amoeba.home}/conf/ruleFunctionMap.xml</property></bean></property><property name="sqlFunctionFile">${amoeba.home}/conf/functionMap.xml</property><property name="LRUMapSize">1500</property><!-- 默认数据库，主数据库 --><property name="defaultPool">master</property><!-- 写数据库 --><property name="writePool">master</property><!-- 读数据库，dbServer.xml 中配置的 虚拟数据库，数据库池 --><property name="readPool">slaves</property><property name="needParse">true</property></queryRouter>
