使用kmse实现服务的权限校验
通过一个简单的实例说明开发者如何通过kmse进行服务间的权限校验。
一、准备客户端和服务端两个demo

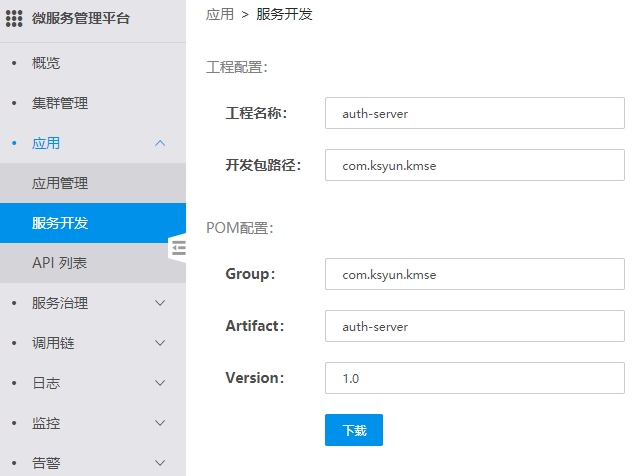

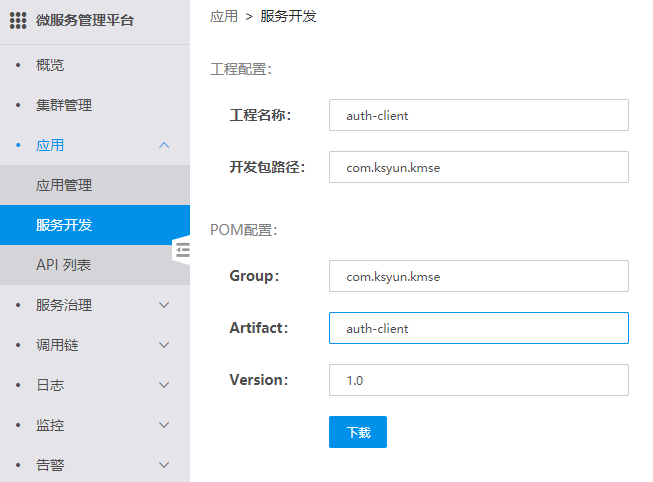

这里演示如何快速实践服务鉴权功能。假如现在有两个微服务 auth-client 和 auth-server，想实现 auth-client 调用 auth-server 时，auth-server 对请求做鉴权。参考服务开发文档，下载auth-server和auth-client两个demo。
查看依赖，实践服务鉴权只需要依赖以下maven组件，调用端和被调用端都只需要如下依赖。
org.springframework.boot
spring-boot-starter
org.springframework.boot
spring-boot-starter-web
org.springframework.cloud
spring-cloud-starter-openfeign
com.ksyun.kmse
spring-cloud-kmse-starter-authentication
${version}
因为auth-server是被调用方，所以在auth-server的bootstrap.yaml文件中写入鉴权配置，配置中两个版本属性(VERSION，subset)，两个服务名属性(spring.application.name,auth-policy.http[0].route[0].destination.host)必须一致。配置的意思是创建一个名称为auth-rule-1的鉴权规则，该条规则的意思是禁止应用名称前缀为“auth-client”的请求来访问auth-server应用。
VERSION: v1
auth-policy:
http:
- match:
- applicationName:
endUser:
prefix: "auth-client"
name: auth-rule-1
route:
- destination:
host: auth-server
subset: v1
type: black-list
spring:
application:
name: auth-server
server:
port: 8080
在auth-client的yaml中写入鉴权需要的参数，这些参数在系统中会自动注入，现在手工填写，应用名称为auth-client，版本为v1：
VERSION: v1
server:
port: 8081
spring:
application:
name: auth-client
准备测试的java代码，auth-server端提供服务的controller:
package com.ksyun.kmse.controller;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RequestMapping({"/server"})
@RestController
public class AccountController {
private static final Logger log = LoggerFactory.getLogger(AccountController.class);
public AccountController() {
}
@RequestMapping({"/{id}"})
public String account(@PathVariable("id") Integer id) {
log.info("调用server " + id);
return id + "";
}
}
auth-client端提供的远程调用client:
package com.ksyun.kmse.client;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
@FeignClient(name = "auth-server", url = "http://127.0.0.1:8080")//如果使用注册中心可以不使用显式的url配置
public interface OrderClient {
@GetMapping("/server/{id}")
String getById(@PathVariable Integer id);
}
auth-client端提供的测试访问入口controller：
package com.ksyun.kmse.controller;
import com.ksyun.kmse.client.OrderClient;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RequestMapping({"/client"})
@RestController
public class AccountController {
private static final Logger log = LoggerFactory.getLogger(AccountController.class);
public AccountController() {
}
@Autowired
private OrderClient server;
@GetMapping({"/{id}"})
public String account(@PathVariable("id") Integer id) {
log.info("调用参数 " + id);
String result = server.getById(id);
log.info("远程调用结果 " + result);
return result;
}
}
至此两个测试应用准备完毕。
二、对服务鉴权进行测试
步骤一中的鉴权配置含义是"不允许applicationname前缀等于’auth-client’的请求访问"。 调用auth-client的测试接口 http://127.0.0.1:8081/client/1。

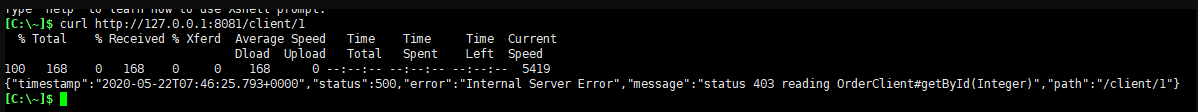

发现auth-server返回http验证码为403。
将auth-server的配置改为如下：
VERSION: v1
auth-policy:
http:
- match:
- applicationName:
endUser:
prefix: "Aclient"
name: auth-rule-1
route:
- destination:
host: auth-server
subset: v1
type: black-list
spring:
application:
name: auth-server

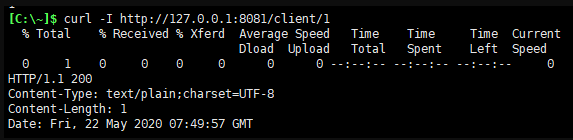

这个配置的含义是"不允许applicationname前缀等于Aclient的请求访问"。 重启auth-server后，再次调用测试接口，返回http状态码为200。
将auth-server的配置改为如下，测试后缀拦截：
VERSION: v1
auth-policy:
http:
- match:
- applicationName:
endUser:
suffix: "ent"
name: auth-rule-1
route:
- destination:
host: auth-server
subset: v1
type: black-list
spring:
application:
name: auth-server
这个配置的含义是"不允许applicationname后缀等于ent的请求访问"。 重启auth-server后，再次调用测试接口，返回http状态码为403，请求被拦截。
依次类推还有如下的请求场景：
#匹配请求来源url
auth-policy:
http:
- match:
- APIPath: "/auth-server/1"
#匹配请求来源ip
auth-policy:
http:
- match:
- IP: "127.0.0.1"
#匹配请求http方法
auth-policy:
http:
- match:
- Method: "GET"
#匹配应用版本
auth-policy:
http:
- match:
- applicationVersion: "v1"
#前缀匹配
auth-policy:
http:
- match:
- applicationName:
endUser:
prefix: "a"
#后缀匹配
auth-policy:
http:
- match:
- applicationName:
endUser:
suffix: "b"
#精准匹配
auth-policy:
http:
- match:
- applicationName:
endUser:
exact: "c"
#正则匹配，例如正整数
auth-policy:
http:
- match:
- applicationName:
endUser:
regular: "[1-9]\d*"
