微信小程序接入腾讯IM即时通讯，实现在线聊天

最近在帮朋友写一个二手交易平台，买卖双方在线沟通的功能(类似于某鱼）

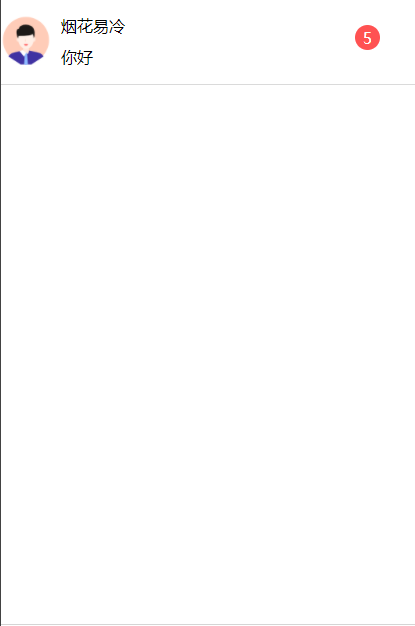

先上传做完的效果图，后续再更新源码，目前实现了消息列表显示未读数量，显示最后一条信息内容，收到信息后刷新列表。
聊天页面

在这里插入图片描述
不要吐槽页面，因为这是一个万能的Java攻城狮写的。。。

-----------------------------------------------------2021-07-19-----------------------------------------------

会话列表代码

<!--pages/msg/msg.wxml-->
<view style="height:500px;width:100%;"><block wx:for="{{data}}" wx:for-index="idx" wx:for-item="item" wx:key="item" ><view style="display:flex; border-bottom: 1px solid #9999995c;padding-top: 15px;padding-bottom:15px"  bindtap="godateils" data-info="{{item}}"><view><image src="../../images/head.png" style="width:50px;height:50px"></image></view><view style="display:block;    width: 71%;    margin-left: 10px;"><view>{{item.userProfile.nick}}</view><view style="padding-top: 10px;">{{item.lastMessage.messageForShow}}</view></view><view style=" padding-top: 10px;" wx:if="{{item.unreadCount!=0}}"><view class="unreadCount">{{item.unreadCount}}</view></view></view></block>
</view>

/* pages/msg/msg.wxss */
.unreadCount{background: #ff0000ad;width: 25px;height: 25px;color: #fff;border-radius: 50%;text-align: center;line-height: 25px;
}

// pages/msg/msg.js
const app = getApp()
const {getDatePattern,isJSON
} = getApp().require('utils/util');
let DATA_APP = getApp() && getApp().globalData || {};
let DATA_TIM = DATA_APP.TIM || {};
let TIM_MSG = [];
const config = require("../../config.js");
import {loginTIM
} from '../../plugin/im-init.js'
Page({/*** 页面的初始数据*/data: {data: [],},/*** 生命周期函数--监听页面加载*/onLoad: function (options) {this.init();},init() {loginTIM(getApp().globalData)},/*** 生命周期函数--监听页面初次渲染完成*/onReady: function () {var that = this;wx.showLoading({title: '数据拉取中...',})setTimeout(() => {let promise = DATA_TIM.getConversationList();promise.then(function (imResponse) {const conversationList = imResponse.data.conversationList; // 会话列表，用该列表覆盖原有的会话列表that.data.data = conversationListconsole.log("第一次打印===" + JSON.stringify(conversationList))that.getUser(0)console.log(JSON.stringify(that.data.data))}).catch(function (imError) {console.warn('getConversationList error:', imError); // 获取会话列表失败的相关信息});}, 3000);wx.event.on('received', (e) => {var that = this;let promise = DATA_TIM.getConversationList();promise.then(function (imResponse) {const conversationList = imResponse.data.conversationList; // 会话列表，用该列表覆盖原有的会话列表that.data.data = conversationListthat.getUser(0)}).catch(function (imError) {console.warn('getConversationList error:', imError); // 获取会话列表失败的相关信息});});},/*** 生命周期函数--监听页面显示*/onShow: function () {var that = this;let promise = DATA_TIM.getConversationList();promise.then(function (imResponse) {const conversationList = imResponse.data.conversationList; // 会话列表，用该列表覆盖原有的会话列表that.data.data = conversationListconsole.log("第一次打印===" + JSON.stringify(that.data.data))console.log("第一次打印===" + JSON.stringify(that.data.data.length))that.getUser(0)console.log(JSON.stringify(that.data.data))}).catch(function (imError) {console.warn('getConversationList error:', imError); // 获取会话列表失败的相关信息});},getUser: function (i) {var that = this;console.log(i)console.log("进入getuser")console.log(that.data.data.length)console.log(JSON.stringify(that.data.data))if (i == that.data.data.length) {console.log("返回")console.log("runt===" + JSON.stringify(that.data.data))that.setData({"data": that.data.data})wx.hideLoading({success: (res) => {},})return;}console.log("开始请求啊")wx.request({url: app.globalData.domain + '/api/member/getByOpenid',data: {token: app.globalData.token,openid: that.data.data[i].userProfile.userID},success: function (res) {console.log("查询完成=="+JSON.stringify(res))if (res.data.member.length > 0) {if(res.data.member[0].doctorName==""||res.data.member[0].doctorName==null){that.data.data[i].userProfile.nick = res.data.member[0].nickname}else{that.data.data[i].userProfile.nick = res.data.member[0].doctorName}}that.getUser(i+1)},fail:function(err){console.log("请求失败了")}})},godateils: function (e) {console.log(JSON.stringify(e))console.log(JSON.stringify())wx.navigateTo({url: '../chat/chat?userid=' + e.currentTarget.dataset.info.userProfile.userID,})},/*** 生命周期函数--监听页面隐藏*/onHide: function () {},/*** 生命周期函数--监听页面卸载*/onUnload: function () {},/*** 页面相关事件处理函数--监听用户下拉动作*/onPullDownRefresh: function () {},/*** 页面上拉触底事件的处理函数*/onReachBottom: function () {},/*** 用户点击右上角分享*/onShareAppMessage: function () {}
})

聊天页面

<view class="chat-area"><scroll-view scroll-into-view="{{ colToView }}" scroll-y="true" bindscrolltoupper="onLoadMore"bindtap="onHideSendMore"><view class="loader-wrap" wx:if="{{showLoading}}"><text class="loader"></text></view><block wx:for="{{ arrMsg }}" wx:key="index"><view class="{{ item.from === colUserId?'':'chat-his'}}"><view wx:if="{{item.type == 'TIMImageElem'}}" class="chat-row flex-box-end" id="msg-{{index}}"><view class="chat-img"><image wx:if="{{item.status=='success'}}" class="chat-pic" mode="heightFix" lazy-load="{{true}}"src="{{item.payload.imageInfoArray[0].url}}" bindtap="previewImage"data-url="{{item.payload.imageInfoArray[2].url}}"></image><image wx:elif="{{item.status=='fail'}}" class="chat-pic" mode="heightFix" lazy-load="{{true}}"src="{{item.sendPic}}" data-url="{{item.payload.imageInfoArray[2].url}}"><view class="chat-progress">发送失败</view></image><image wx:else class="chat-pic" mode="heightFix" lazy-load="{{true}}" src="{{item.sendPic}}"data-url="{{item.payload.imageInfoArray[2].url}}"><view class="chat-progress"><text class="loader"></text><text>{{colPercent}}%</text></view></image></view><view class="chat-head"><image class="chat-headPortrait" src="../../images/head.png"></image></view></view><view wx:else class="chat-row flex-box-end" id="msg-{{index}}"><view class="chat-main"><!--  <view class="left-chat-name">{{ item.from }}</view>--><view class="chat-msg">{{ item.payload.text }}</view><view class="chat-time">{{ item.timeFormat }}</view></view><view class="chat-head"><image class="chat-headPortrait" src="../../images/head.png"></image></view></view></view></block></scroll-view><view class="chat-footer"><view class="chat-input-box"><input bindinput='onInputMsg' bindconfirm='TIM_createMsg' value="{{colSendMsg}}" placeholder='输入内容'class="input" cursor-spacing="20"></input><view class='footer-send' bindtap='TIM_createMsg'>发送</view></view><view class="open-more" wx:if="{{showSendMore}}"></view></view>
</view>

wxss

view,text,image{box-sizing: border-box;
}.flex-box-start{display: flex;justify-content: start;
}.flex-box-end{display: flex;justify-content: flex-end;
}.chat-area{width: 100%;height: calc(100vh - 120rpx);background-color: #f9f9f9;font-weight: 400;/*padding-bottom: 140rpx;*/
}.chat-area > scroll-view{position: relative;height: 100%;padding: 20rpx 20rpx 10rpx 20rpx;box-sizing: border-box;
}.chat-his .flex-box-end{flex-direction: row-reverse;justify-content: flex-start!important;
}.chat-his .chat-main{align-items: flex-start!important;
}.chat-his .chat-msg{background: #ffffff!important;color: #000000;
}.chat-his .chat-msg:before{content: '';position: absolute;width: 0;height: 0;border-width: 14rpx 20rpx;border-style: solid;border-color: transparent white transparent transparent;left: -40rpx;top: 30rpx;
}.chat-his .chat-msg:after{display: none;
}.chat-his .chat-head{margin-right: 30rpx;margin-left: 0!important;
}.chat-his .chat-img{justify-content: flex-start!important;
}.chat-his .chat-custom .item:after{background: #000000!important;
}.chat-headPortrait{width: 100%;height: 100%;border-radius: 50%;
}.chat-head{width: 100rpx;height: 100rpx;margin-left: 30rpx;flex: none;
}.chat-end{display: flex;align-items: center;justify-content: center;font-size: 24rpx;color: #8B8B8B;margin-bottom: 40rpx;
}.chat-main{width: 100%;display: flex;flex-direction: column;align-items: flex-end;
}.chat-row{margin: 30rpx 0;
}.chat-name{font-size: 26rpx;color: #7C7C7C;padding-left: 20rpx;margin-bottom: 10rpx;
}.chat-time{font-size: 24rpx;color: #b7b7b7;padding-left: 12rpx;margin-top: 16rpx;
}.chat-msg{display: inline-block;position: relative;max-width: calc(100% - 100rpx);background-color: #0093A2;padding: 26rpx 30rpx;border-radius: 10rpx;font-size: 28rpx;word-wrap: break-word;color: #FEFEFE;margin-left: 6rpx;/*font-weight: bold;*/min-height: 90rpx;
}.chat-msg:after{content: '';position: absolute;width: 0;height: 0;border-width: 14rpx 20rpx;border-style: solid;border-color: transparent transparent transparent #0093A2;right: -40rpx;top: 30rpx;
}.chat-custom .row{display: flex;width: 100%;margin: 10rpx 0;
}.chat-custom .row-left{width: 150rpx;flex: none;
}.chat-custom .row-right{flex: auto;white-space: initial;
}.chat-custom .row .item{position: relative;margin-right: 32rpx;
}.chat-custom .item:after{content: '';width: 2rpx;height: 30rpx;background: #ffffff;position: absolute;right: -16rpx;top: 50%;transform: translateY(-50%);
}.chat-custom .row .item:last-child:after{width: 0;
}.btn-wrap{display: flex;flex-direction: column;align-items: center;
}.btn-wrap .item{width: 80%;display: flex;align-items: center;justify-content: center;height: 100rpx;margin: 20rpx 0;border-radius: 20rpx;background: dodgerblue;color: white;font-size: 40rpx;font-weight: bold;z-index: 9999;
}/* 图片消息 */
.chat-img{width: 100%;margin: 30rpx 0;display: flex;flex-grow: 1;justify-content: flex-end;
}.chat-pic {max-width: 360rpx;height: 360rpx;background-repeat: no-repeat;background-size: center;background-position: center;border-radius: 4rpx;position: relative;
}.chat-progress{position: absolute;left: 0;right: 0;top: 0;bottom: 0;margin: auto;display: flex;flex-direction: column;justify-content: center;align-items: center;background-color: rgba(29, 29, 29, 0.548);color: #fff;
}@keyframes loader {0% {-webkit-transform:rotate(0deg);transform:rotate(0deg);}100% {-webkit-transform:rotate(360deg);transform:rotate(360deg);}
}.loader {border-top:8rpx solid rgba(0,0,0,0.1);border-right:8rpx solid rgba(0,0,0,0.1);border-bottom:8rpx solid rgba(0,0,0,0.1);border-left:8rpx solid #555;transform:translateZ(0);animation:loader 600ms infinite linear;transition:all 500ms ease;opacity:1;
}.loader,.loader:after {border-radius:50%;width:40rpx;height:40rpx;
}/* 底部样式 */
.chat-footer{position: fixed;bottom: 0;left: 0;width: 100%;background:rgba(248,248,248,1);box-sizing: border-box;
}.chat-input-box{display: flex;justify-content: space-between;align-items: center;background: #ffffff;padding: 20rpx 25rpx;
}.chat-wait{display: flex;align-items: center;justify-content: center;height: 120rpx;background: #ffffff;font-size: 26rpx;
}.msg-icon{width: 58rpx;height: 58rpx;
}.chat-input-box .input{height:76rpx;line-height: 76rpx;background:rgba(255,255,255,1);border: none;border-radius:6rpx;font-size: 30rpx;padding:0 30rpx;display: flex;flex-direction: row;align-items: center;position: relative;flex-grow: 1;background: #F1F1F1;
}.inputArea{width: 100%;height: 98%;flex-grow: 1;
}
.placeHolder{position: absolute;font-size: 26rpx;color: #cccccc;height: 100%;box-sizing: border-box;top: 0;z-index: 0;
}
.footer-send{height: 76rpx;border-radius: 12rpx;display: flex;justify-content: center;align-items: center;font-size: 26rpx;margin-left: 20rpx;padding: 0 10rpx;
}
.footer-send-item{font-size: 60rpx;font-weight: bold;
}
.footer-h{position: fixed;top: 100px;
}
.more{display: flex;justify-content: center;align-items: center;
}
.more-text{padding: 6rpx 14rpx;background:rgba(216,216,216,1);border-radius:4rpx;color: #FFFFFF;font-size: 20rpx;margin: 30rpx auto;
}.open-more{display: flex;flex-wrap: wrap;padding: 40rpx 0;min-height: 360rpx;
}.open-more-item{flex-basis: 25%;display: flex;flex-direction: column;align-items: center;justify-items: center;
}.open-more-item .msg-img{width: 100rpx;height: 100rpx;margin-bottom: 16rpx;
}.open-more-item .msg-text{font-size: 28rpx;color: #888888;
}.loader-wrap {display: flex;align-items: center;justify-content: center;height: 80rpx;width: 100%;opacity:1;z-index:99;color: #b7b7b7;font-size: 28rpx;
}.loader-tip{background: #E7E7E7;display: flex;align-items: center;justify-content: center;color: #8B8B8B;padding:20rpx 30rpx;font-size: 24rpx;border-radius: 6rpx;
}.loader {border-top:8rpx solid rgba(0,0,0,0.1);border-right:8rpx solid rgba(0,0,0,0.1);border-bottom:8rpx solid rgba(0,0,0,0.1);border-left:8rpx solid #555;transform:translateZ(0);animation:loader 600ms infinite linear;transition:all 500ms ease;opacity:1;
}.loader,.loader:after {border-radius:50%;width:40rpx;height:40rpx;
}@keyframes loader {0% {-webkit-transform:rotate(0deg);transform:rotate(0deg);}100% {-webkit-transform:rotate(360deg);transform:rotate(360deg);}
}.z-btn-wrap{display: flex;align-items: center;justify-content: center;height: 120rpx;background: #ffffff;
}.z-btn{background: #06CAD8;color: #ffffff;display: flex;justify-content: center;align-items: center;padding: 24rpx 40rpx;font-size: 32rpx;font-weight: 500;border-radius: 10rpx;min-width: 400rpx;
}

js`

import TIM from "../../plugin/tencentIM/tim-wx-sdk.js";const app = getApp()
const {getDatePattern,isJSON
} = getApp().require('utils/utils');let DATA_APP = getApp() && getApp().globalData || {};
let DATA_TIM = DATA_APP.TIM || {};
let TIM_MSG = [];Page({data: {colToView: '',colUserId: '',colUserOtherId: '',colSendMsg: '',colPercent: 0,pageLastLength: 1,pageNext: '',pageCompleted: '',showSendMore: false,showLoading: false,showThree: false,showEnd: false,arrMsg: [],arrImg: [],},onLoad(options) {this.data.colUserId = app.openidthis.data.colUserOtherId = options.useridconsole.log(this.data.colUserId)console.log(this.data.colUserOtherId)console.log(JSON.stringify(DATA_APP))this.TIM_getMsgList();this.setData({colUserId: this.data.colUserId})//订阅初始化获取聊天记录wx.event.on('conversationInit', () => {this.TIM_getMsgList();});//订阅收到消息wx.event.on('received', (e) => {this.TIM_setGlobalMsg(e, 'received');});},//im获取消息、打开某个会话时，第一次拉取消息列表TIM_getMsgList() {this.onShowLoading();let param = {conversationID: 'C2C' + this.data.colUserOtherId,count: 15,nextReqMessageID: this.data.pageNext};let promise = DATA_TIM.getMessageList(param);promise.then((imResponse) => {console.log(JSON.stringify(imResponse))// 将某会话下所有未读消息已读上报let promise = DATA_TIM.setMessageRead({conversationID: imResponse.data.messageList[0].conversationID});promise.then(function (imResponse) {// 已读上报成功，指定 ID 的会话的 unreadCount 属性值被置为0}).catch(function (imError) {// 已读上报失败console.warn('setMessageRead error:', imError);});this.TIM_setGlobalMsg(imResponse, 'load', true);});},//im获取消息、打开某个会话时，第一次拉取消息列表TIM_getMsgListMore() {this.onShowLoading();let param = {conversationID: 'C2C' + this.data.colUserOtherId,count: 15,nextReqMessageID: this.data.pageNext};let promise = DATA_TIM.getMessageList(param);promise.then((imResponse) => {this.TIM_setGlobalMsg(imResponse, 'load');});},//im创建文本消息TIM_createMsg() {let param = {to: this.data.colUserOtherId,conversationType: TIM.TYPES.CONV_C2C,payload: {text: this.data.colSendMsg}};let message = DATA_TIM.createTextMessage(param);this.TIM_sendMessageFun(message);this.onClearInput();},// im创建图片- 选择图片TIM_createPhoto(e) {let that = this;let name = e.currentTarget.dataset.name;if (name === 'album') {that.TIM_createPhotoNow(name)} else if (name === 'camera') {wx.getSetting({success: function (res) {if (!res.authSetting['scope.camera']) { // 无权限，跳转设置权限页面wx.authorize({scope: 'scope.camera',success: function () {that.TIM_createPhotoNow(name)}})} else {that.TIM_createPhotoNow(name)}}})}},// im创建图片- 创建完成TIM_createPhotoNow(name) {let that = this;let colUserId = this.data.colUserId;wx.chooseImage({sourceType: [name],count: 1,success: (res) => {// 在发送之前先push进去一张图片let messageList = that.data.arrMsg;let data = {type: 'TIMImageElem',send: true,from: colUserId,showSendMore: res.tempFilePaths[0]};messageList.push(data);that.setData({arrMsg: messageList});that.onHideSendMore();that.pageScrollToBottom(true);// 2. 创建消息实例，接口返回的实例可以上屏let message = DATA_TIM.createImageMessage({to: that.data.colUserOtherId, // 消息的接收方,conversationType: TIM.TYPES.CONV_C2C,payload: {file: res},onProgress: (event) => {event = event || 0;that.setData({colPercent: event * 100})}});that.TIM_sendMessageFun(message, 'TIMImageElem')}})},//im发送-处理TIM_sendMessageFun(message, type) {console.log(message)DATA_TIM.sendMessage(message).then((imResponse) => {// 发送成功if (type === 'TIMImageElem') {let messageList = this.data.arrMsg;console.log(JSON.stringify(arrMsg))messageList.pop();this.setData({arrMsg: messageList})}this.TIM_setGlobalMsg(imResponse, 'send');this.onHideSendMore();this.onClearInput();}).catch((imError) => {console.warn('发送失败:', imError);})},//im处理数据TIM_setGlobalMsg(imResponse, type, loadFirst) {console.log('消息列表', imResponse);if (type === 'send' || type === 'received') {let data = {};if (type === 'received') {data = imResponse.data[0];// this.setData({//     showThree:false,// })} else {data = imResponse.data.message || {};}let arrMsg = this.data.arrMsg;let arrImg = this.data.arrImg;if (data.type === 'TIMImageElem') {arrImg.push(data.payload.imageInfoArray[0].url);}if (data.type === 'TIMCustomElem') {data.dataCustom = isJSON(data.payload.data) ? JSON.parse(data.payload.data) : {};}data.timeFormat = getDatePattern(new Date(data.time * 1000), 'yyyy-MM-dd HH:mm');arrMsg.push(data);for (var i = 0; i < arrMsg.length; i++) {console.log("循环打印==" + JSON.stringify(arrMsg[i]))}console.log(JSON.stringify(arrMsg[0].from))this.setData({arrMsg: arrMsg,arrImg: arrImg,}, () => {this.pageScrollToBottom(true)});} else {let data = imResponse.data || {};let arrData = data.messageList || [];let arrImg = [];arrData = arrData.map(x => {if (x.type === 'TIMImageElem') {arrImg.push(x.payload.imageInfoArray[0].url);}if (x.type === 'TIMCustomElem') {x.dataCustom = isJSON(x.payload.data) ? JSON.parse(x.payload.data) : {};}x.timeFormat = getDatePattern(new Date(x.time * 1000), 'yyyy-MM-dd HH:mm')return x});arrImg = arrImg.concat(this.data.arrImg);TIM_MSG = arrData.concat(this.data.arrMsg); // 全局消息列表this.setData({'arrMsg': TIM_MSG,'arrImg': arrImg,'pageNext': data.nextReqMessageID, // 用于续拉，分页续拉时需传入该字段。'pageCompleted': data.isCompleted, // 表示是否已经拉完所有消息。'pageLastLength': arrData.length //用户定位滚动位置}, () => {this.onHideLoading();this.pageScrollToBottom(loadFirst)});}},//实时更新输入框的数据onInputMsg(e) {this.setData({'colSendMsg': e.detail.value})},onClearInput() {this.setData({'colSendMsg': ''})},//显示加载框onShowLoading() {this.setData({'showLoading': true});},//隐藏加载框onHideLoading() {this.setData({'showLoading': false});},// 点更多出现图片和相册onShowSendMore() {this.setData({showSendMore: true})},// 点击屏幕 发消息更多的弹框下去onHideSendMore() {this.setData({showSendMore: false})},// 预览previewImage(e) {let url = e.currentTarget.dataset.url;wx.previewImage({current: url, // 当前显示图片的http链接urls: this.data.arrImg})},//滚动到页面底部pageScrollToBottom(isBottom) {let index = null;if (isBottom) {index = 'msg-' + (this.data.arrMsg.length - 1);} else {index = 'msg-' + 0;}this.setData({colToView: index})},//加载更多onLoadMore() {if (!this.data.pageCompleted) {this.TIM_getMsgListMore()}},});
