1. DenseNet论文详解

Abstract:

如果在靠近输入和靠近输出层之间包含更短的连接，那么卷积神经网络可以很大程度上更深，更准确和高效地进行训练。根据这一结果，我们提出了DenseNet（密集卷积网络）: 对于每一层，所有前一层地特征图作为输入，而这一层地特征图用作所有后续层地输入。优势有：缓解了梯度消失问题，加强了特征传播，鼓励特征复用，并很大程度上减小了参数的数量。

1.1. Introduction

随着卷积神经网络的不断加深，出现了一个问题——关于输入或梯度在经过很多层到达网络的终点（或起点）时，它可能会消失。对于此问题的解决方法：

1. ResNet和Highway Networks通过identity connection将信号从一层绕传到另一层
2. Stochastic depth在训练期间随机掉落层来缩短ResNet，以允许更好的信息和梯度流动
3. FractalNets重复组合多个具有不同数量卷积块的平行层序列，以获得较大的标称深度，同时在网络中保持许多短路径

这些方法都有一个共同点：创建了从早期层到后期层的短路径

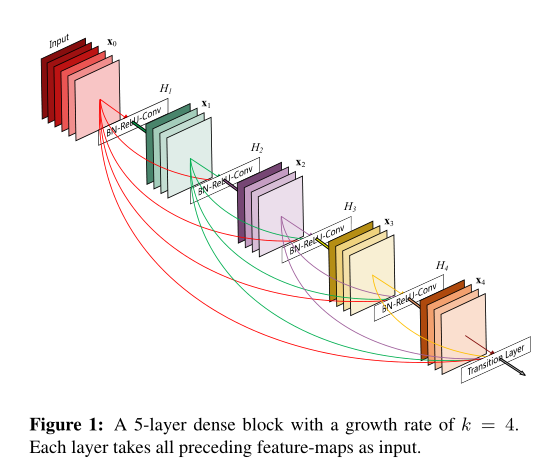

为了确保网络中各层之间最大的信息流，我们将所有层直接连接到彼此。为了保持前馈性质，每一层都从所有前面的层获得额外的输入，并将自己的特性映射传递给所有后续层。与resnet相比，我们从来没有在将特性传递到一个层之前通过累加来组合它们，相反，我们通过特征连接来组合它们。我们将此方法称为DenseNet

DenseNet的优势：

• 改进了信息和梯度的流动，使得易于训练
• 密集连接具有正则化效益，减少了训练集规模较小的过拟合问题

1.2. DenseNets

1.2.1 Compare nets

• Traditional nets: $$x_l=H_l(x_{l-1})$$
• ResNets：$$x_l=H_l(x_{l-1})+x_{l-1}$$
• DenseNets：$$x_l=H_l([x_0,x_1,\dots ,x_{l-1}])$$

参数说明：

• $x_0$：卷积网络得输入的单个图像
• 此网络有$L$层，每一层实现一个非线性变换$H_l$，其中$l$表示第$l$层
• $x_l$：第$l$层的输出

1.2.2 Architecture of net

Composite function：定义为3个连续操作的复合函数

• BN：batch normalization
• ReLU：rectified linear unit
• Conv：convolution

Pooling layers

当feature-map的大小发生改变时，$x_l=H_l([x_0,x_1,\dots ,x_{l-1}])$中的拼接操作是不可行的，需要通过下采样层来改变feature-map的大小，下采样层的组成为：

• BN层
• 1x1卷积层
• 平均层化层

Growth rate

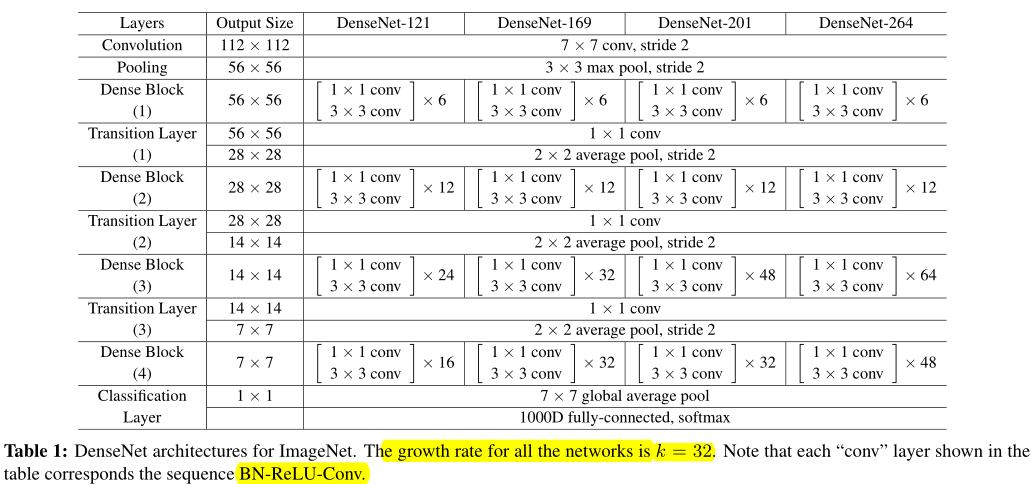

如果每个函数$H_l$产生$k$个feature-maps，那么可以得出第$l$层有$k_0+k\cdot (l-1)$个输入feature-maps，其中$k_0$是输入层的通道数，我们将k作为网络的growth rate。从表1，可知growth rate为32

Bottleneck layers

虽然每一层只产生$k$个feature-maps，但是由于输入很多，我们需要在每一次3x3卷积之前引入一个1x1卷积以减少feature-maps的数量，从而减小参数并提高效率，在实验中，我们发现这种设计对DenseNet很有效，我们让每个1x1卷积产生$4k$个特征图，这样我们的函数$H_l$为：

• BN
• ReLU
• Conv(1x1)
• BN
• ReLU
• Conv(3x3)

Compression
为了进一步提高模型紧凑型，我们可以减少transition layer输出的特征图数量。如果dense block包含m个特征图，我们让dense block后的transition latyer生成$\lfloor \theta m\rfloor$个特征图，其中$\theta$为压缩因子，在我们的实验中设置$\theta =0.5$

Implementation Details

1. 在进入第一个dense block时，对输入图像进行16（或为growth rate两倍）输出通道的卷积
2. 对于3x3卷积，输入的四周用一个像素填充0，以保证feature-map的大小不变
3. 使用1x1卷积，然后使用2x2平均池化作为两个dense block的过渡层
4. 在最后一个dense block的末端，执行一个全局平均池化，然后加一个softmax分类器

2. 基于Pytorch代码复现

2.1 模型搭建

import torch.nn as nn
import torch
from torchvision import modelsclass _DenseLayer(nn.Module):def __init__(self, num_input_features, growth_rate, bn_size, drop_rate=0):super(_DenseLayer, self).__init__()self.drop_rate = drop_rateself.dense_layer = nn.Sequential(nn.BatchNorm2d(num_input_features),nn.ReLU(inplace=True),nn.Conv2d(in_channels=num_input_features, out_channels=bn_size * growth_rate, kernel_size=1, stride=1, padding=0, bias=False),nn.BatchNorm2d(bn_size * growth_rate),nn.ReLU(inplace=True),nn.Conv2d(in_channels=bn_size * growth_rate, out_channels=growth_rate, kernel_size=3, stride=1, padding=1, bias=False))self.dropout = nn.Dropout(p=self.drop_rate)def forward(self, x):y = self.dense_layer(x)if self.drop_rate > 0:y = self.dropout(y)return torch.cat([x, y], dim=1)class _DenseBlock(nn.Module):def __init__(self, num_layers, num_input_features, bn_size, growth_rate, drop_rate=0):super(_DenseBlock, self).__init__()layers = []for i in range(num_layers):layers.append(_DenseLayer(num_input_features + i * growth_rate, growth_rate, bn_size, drop_rate))self.layers = nn.Sequential(*layers)def forward(self, x):return self.layers(x)class _TransitionLayer(nn.Module):def __init__(self, num_input_features, num_output_features):super(_TransitionLayer, self).__init__()self.transition_layer = nn.Sequential(nn.BatchNorm2d(num_input_features),nn.ReLU(inplace=True),nn.Conv2d(in_channels=num_input_features, out_channels=num_output_features, kernel_size=1, stride=1, padding=0, bias=False),nn.AvgPool2d(kernel_size=2, stride=2))def forward(self, x):return self.transition_layer(x)class DenseNet(nn.Module):def __init__(self, num_init_features=64, growth_rate=32, blocks=(6, 12, 24, 16), bn_size=4, drop_rate=0, num_classes=1000):super(DenseNet, self).__init__()self.features = nn.Sequential(nn.Conv2d(in_channels=3, out_channels=num_init_features, kernel_size=7, stride=2, padding=3, bias=False),nn.BatchNorm2d(num_init_features),nn.ReLU(inplace=True),nn.MaxPool2d(kernel_size=3, stride=2, padding=1))num_features = num_init_featuresself.layer1 = _DenseBlock(num_layers=blocks[0], num_input_features=num_features, growth_rate=growth_rate, bn_size=bn_size, drop_rate=drop_rate)num_features = num_features + blocks[0] * growth_rateself.transtion1 = _TransitionLayer(num_input_features=num_features, num_output_features=num_features // 2)num_features = num_features // 2self.layer2 = _DenseBlock(num_layers=blocks[1], num_input_features=num_features, growth_rate=growth_rate, bn_size=bn_size, drop_rate=drop_rate)num_features = num_features + blocks[1] * growth_rateself.transtion2 = _TransitionLayer(num_input_features=num_features, num_output_features=num_features // 2)num_features = num_features // 2self.layer3 = _DenseBlock(num_layers=blocks[2], num_input_features=num_features, growth_rate=growth_rate, bn_size=bn_size, drop_rate=drop_rate)num_features = num_features + blocks[2] * growth_rateself.transtion3 = _TransitionLayer(num_input_features=num_features, num_output_features=num_features // 2)num_features = num_features // 2self.layer4 = _DenseBlock(num_layers=blocks[3], num_input_features=num_features, growth_rate=growth_rate, bn_size=bn_size, drop_rate=drop_rate)num_features = num_features + blocks[3] * growth_rateself.avgpool = nn.AdaptiveAvgPool2d((1, 1))self.fc = nn.Linear(num_features, num_classes)def forward(self, x):x = self.features(x)x = self.layer1(x)x = self.transtion1(x)x = self.layer2(x)x = self.transtion2(x)x = self.layer3(x)x = self.transtion3(x)x = self.layer4(x)x = self.avgpool(x)x = torch.flatten(x, start_dim=1)x = self.fc(x)return xdef DenseNet121(num_classes):return DenseNet(blocks=(6, 12, 24, 16), num_classes=num_classes)def DenseNet169(num_classes):return DenseNet(blocks=(6, 12, 32, 32), num_classes=num_classes)def DenseNet201(num_classes):return DenseNet(blocks=(6, 12, 48, 32), num_classes=num_classes)def DenseNet264(num_classes):return DenseNet(blocks=(6, 12, 64, 48), num_classes=num_classes)def read_densenet121():device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')model = models.densenet121(pretrained=True)model.to(device)print(model)def get_densenet121(flag, num_classes):if flag:net = models.densenet121(pretrained=True)num_input = net.classifier.in_featuresnet.classifier = nn.Linear(num_input, num_classes)else:net = DenseNet121(num_classes)return net

2.2 训练结果如下

1. 训练数据集与验证集大小以及训练参数

Using 3306 images for training, 364 images for validation
Using cuda GeForce RTX 2060 device for training
lr: 0.0001
batch_size: 16

2. 使用自己定义的网络训练结果

[epoch 1/10] train_loss: 1.209 val_acc: 0.626
[epoch 2/10] train_loss: 1.035 val_acc: 0.588
[epoch 3/10] train_loss: 0.980 val_acc: 0.679
[epoch 4/10] train_loss: 0.902 val_acc: 0.670
[epoch 5/10] train_loss: 0.838 val_acc: 0.698
[epoch 6/10] train_loss: 0.805 val_acc: 0.712
[epoch 7/10] train_loss: 0.825 val_acc: 0.717
[epoch 8/10] train_loss: 0.765 val_acc: 0.742
[epoch 9/10] train_loss: 0.759 val_acc: 0.755
[epoch 10/10] train_loss: 0.732 val_acc: 0.687
Best acc: 0.755
Finished Training
Train 耗时为：440.4s

3. 使用预训练模型参数训练结果

[epoch 1/10] train_loss: 0.505 val_acc: 0.909
[epoch 2/10] train_loss: 0.306 val_acc: 0.931
[epoch 3/10] train_loss: 0.240 val_acc: 0.920
[epoch 4/10] train_loss: 0.209 val_acc: 0.898
[epoch 5/10] train_loss: 0.191 val_acc: 0.931
[epoch 6/10] train_loss: 0.198 val_acc: 0.918
[epoch 7/10] train_loss: 0.152 val_acc: 0.940
[epoch 8/10] train_loss: 0.157 val_acc: 0.929
[epoch 9/10] train_loss: 0.143 val_acc: 0.940
[epoch 10/10] train_loss: 0.150 val_acc: 0.923
Best acc: 0.940
Finished Training
Train 耗时为：478.8s
