步骤一:获取模板ID
1、通过模版消息管理接口获取模版ID(详见模版消息管理)

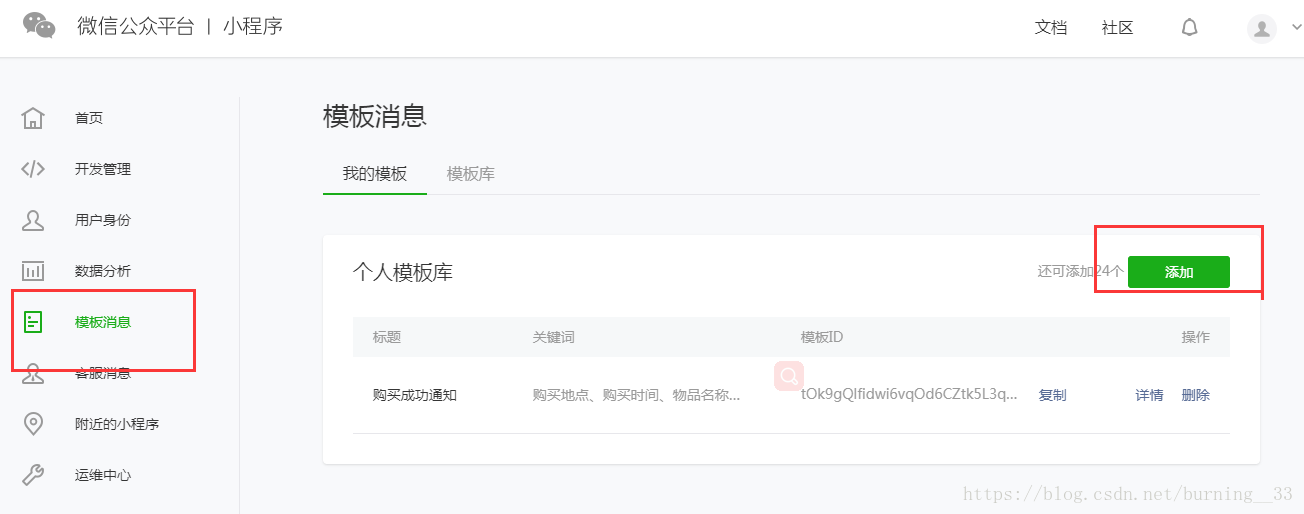

2、在微信公众平台手动配置获取模版ID
登录
https://mp.weixin.qq.com

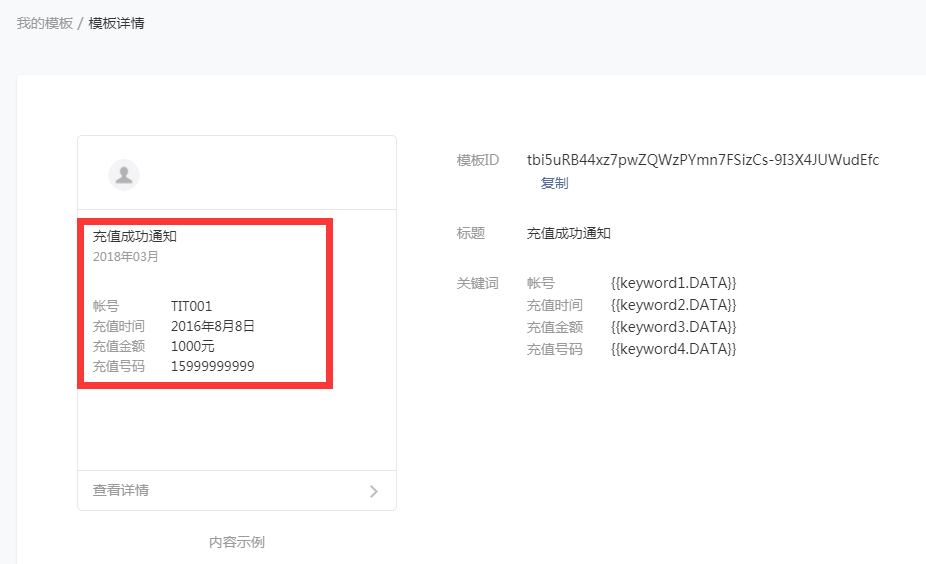

获取模板,如果没有合适的模板,可以申请添加新模板,审核通过后可使用,
步骤二:页面搭建
页面的
<form/>
组件,属性report-submit
为true
时,可以声明为需发模板消息,此时点击按钮提交表单可以获取formId
,用于发送模板消息。或者当用户完成支付行为,可以获取prepay_id
用于发送模板消息。
我写了个充值成功的demo,使用form组件提交表单是发送模板消息,页面如下(比较丑,主要测试):
html
<form bindsubmit="formSubmit" report-submit='true'><view class="section"><view class="section__title">input</view><input name="input" placeholder="please input here" /></view><view class="btn-area"><text>---模板消息发送要在真机上测试,否则不能获取正确的formid----</text><button formType="submit">发送模板消息</button></view>
</form>
步骤三:获取 access_token(发送模板消息的接口需要用到的参数)

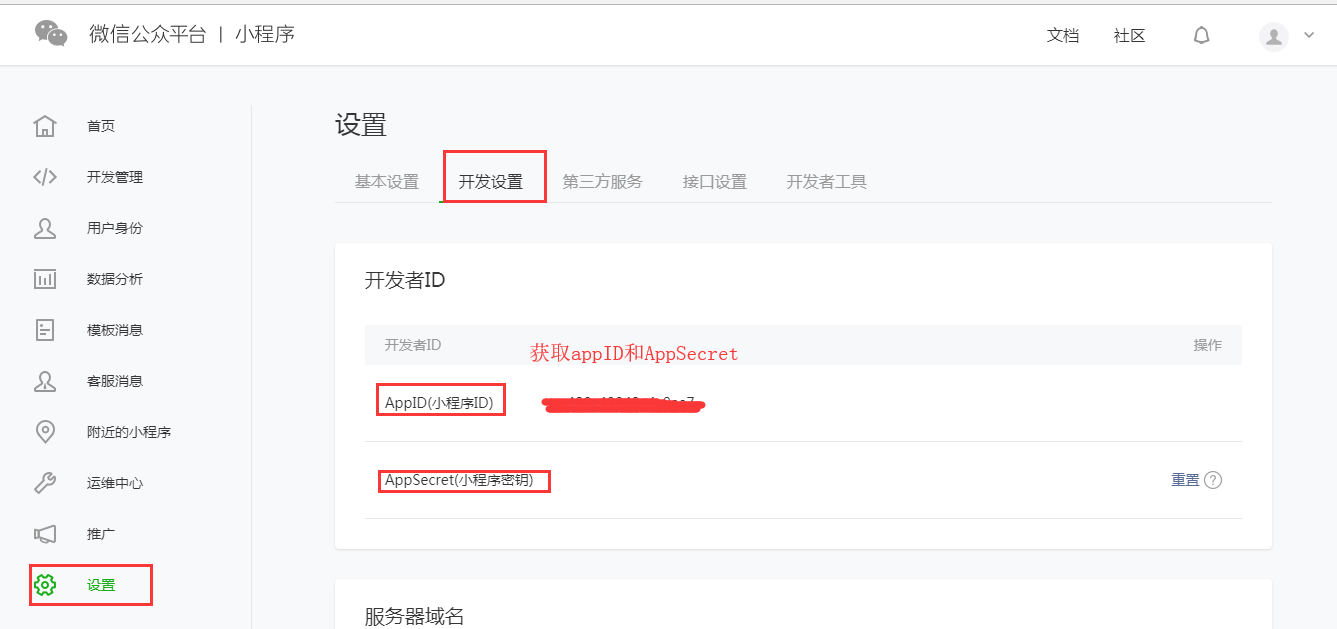

开发者可以使用 AppID 和 AppSecret 调用本接口来获取 access_token。 AppID 和 AppSecret 可 登录微信公众平台官网-设置-开发设置 中获得(需要已经绑定成为开发者,且帐号没有异常状态)。 AppSecret 生成后请自行保存 ,因为在公众平台每次生成查看都会导致 AppSecret 被重置。注意调用所有微信接口时均需使用 https 协议。
接口地址:
https://api.weixin.qq.com/cgi-bin/token?grant_type=client_credential&appid=APPID&secret=APPSECRET
参数:
grant_type:获取 access_token 填写 client_credential
appid和secret都是通过上面获取到的
当前页面加载时获取access_token(下面的appid和secret填写自己登录公众平台获取到的值)
/*** 页面的初始数据*/data: {access_token:''},/*** 生命周期函数--监听页面加载*/onLoad: function (options) {var _this = this;wx.request({url: 'https://api.weixin.qq.com/cgi-bin/token',data:{grant_type:'client_credential',appid:'',secret:''},method:'get',success:function(res){_this.setData({access_token: res.data.access_token})}})}
步骤三:获取openid(发送模板消息的接口需要用到的参数)
openid是在app.js中微信登录成功后返回的code参数(用户登录凭证(有效期五分钟)。开发者需要在开发者服务器后台调用 api,使用 code 换取 openid 和 session_key 等信息)来获得openid。代码如下:
//app.js
App({onLaunch: function () {// 展示本地存储能力var logs = wx.getStorageSync('logs') || []logs.unshift(Date.now())wx.setStorageSync('logs', logs)let _this = this;// 登录wx.login({success: res => {// 发送 res.code 到后台换取 openId, sessionKey, unionIdconsole.log(res.code)var code = res.codeif (res.code) {//发起网络请求wx.request({url: 'https://api.weixin.qq.com/sns/jscode2session',data: {appid: '',secret: '',js_code: code,grant_type: 'authorization_code'},success: function (res) {// console.log(res.data.openid)_this.globalData.openid = res.data.openid;}})} else {console.log('登录失败!' + res.errMsg)}}})
步骤四:发送模板消息
接口地址 :(ACCESS_TOKEN 需换成上文获取到的 access_token)
https://api.weixin.qq.com/cgi-bin/message/wxopen/template/send?access_token=ACCESS_TOKEN
请求方式 :post请求
参数:
touser(必填): 接收者(用户)的 openid
template_id(是): 所需下发的模板消息的id(上面已经说明)
page(否): 点击模板卡片后的跳转页面,仅限本小程序内的页面。支持带参数,(示例index? foo=bar)。该字段不填则模板无跳转。
form_id(是): 表单提交场景下,为 submit 事件带上的 formId ;支付场景下,为本次支付 的 prepay_id
data(是): 模板内容,不填则下发空模板
color(否): 模板内容字体的颜色,不填默认黑色
emphasis_keyword(否):模板需要放大的关键词,不填则默认无放大
form表单提交时,执行formSubmit函数:
formSubmit: function (e) {var _this=this;console.log(_this.data.access_token,'access_token')console.log(app.globalData.openid,'openid')console.log(e.detail.formId,'formid');//formid是设置了form的属性report-submit为true时,通过e.detail.formId获取wx.request({url: 'https://api.weixin.qq.com/cgi-bin/message/wxopen/template/send?access_token=' + _this.data.access_tokendata:{"touser": app.globalData.openid,"template_id": 'tbi5uRB44xz7pwZQWzPYmn7FSizCs-9I3X4JUWudEfc',"form_id": e.detail.formId,"data": {"k eyword1": {"value": "339208499","color": "#173177"},"keyword2": {"value": "2018年3月26日","color": "#173177"},"keyword3": {"value": "1000元","color": "#173177"},"keyword4": {"value": "15999999999","color": "#173177"}},"emphasis_keyword": "keyword3.DATA" },method:'post',header: {'content-type': 'application/json' // 默认值},success: function (res) {console.log(res.data)}})},
到这里,模板消息就可以成功发送了,但是在开发者工具上测试发现formId的值是‘the formId is a mock one’,查了一下: formId需要在真实的手机上才会生成,小程序开发工具是一个模拟环境,所以获取不到,会提示‘the formId is a mock one’
然后在真机中测试就成功了:
