SDWebImage的主流程

SDWebImage提供了UIImageView的分类来实现从网络端下载数据并缓存到内存和磁盘。非常的流行,现在就主流程分析下.

主要的学习链接：SDWebImage源码解读 - 简书

SDWebImage有如下特点：

提供了UIImageView和UIButton的分类。以支持加载网络图片并缓存。
一个异步的图片下载器
提供异步的内存和磁盘缓存，并自动处理缓存过期和缓存大小设置。
后台图片解压缩处理。
确保同一个URL不会被下载多次。
确保主线程永远不会阻塞。

一.储备知识

SDWebImage中每一个下载任务都是一个SDWebImageDownloaderOperation，而SDWebImageDownloaderOperation又是继承自NSOperation，所以每一个下载任务对应一个NSOperation。在SDWebImage中使用SDWebImageDownloader来管理
多个下载任务，在SDWebImageDownloader中有一个downloadedQueue这个属性，这个属性是NSOperationQueue类型的，也就是用NSOperationQueue来管理NSOperation。

NSOperation和NSOperationQueue

NSOperation是一个抽象类，用来表示与单个任务相关联的代码和数据。

我们可以把一个NSOperation对象加入到一个operation queue中，让这个operation queue去决定什么时候执行这个operation。当使用operation queue去管理operation时，轮到某个operation执行时实际是去执行这个operation的start方法，所以我们一个operation对象实际要执行的任务应该放在start方法里面。如果我们不想使用operation queue，也可以通过手动调用NSOperation的start方法来执行任务。

只要当一个operation对象的所有依赖都执行完成的时候，其才可以变成熟ready状态，然后才可以被执行。如果一个operation没有添加依赖，直接加入了operation queue中，那么就会按照加入队列的先后顺序，当这个operation的前一个operation执行完成以后，其状态才会变成ready，才能被执行。

NSOperation对象有下列四个比较重要的状态：

isCancelled
isExecuting
isFinished
isReady

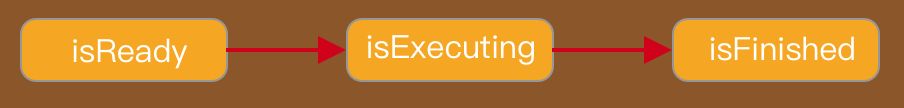

其中isExecuting， isFinished， isReady这三种状态相当于是operation对象的生命周期：

框架的主要类和一次图片加载的主要流程

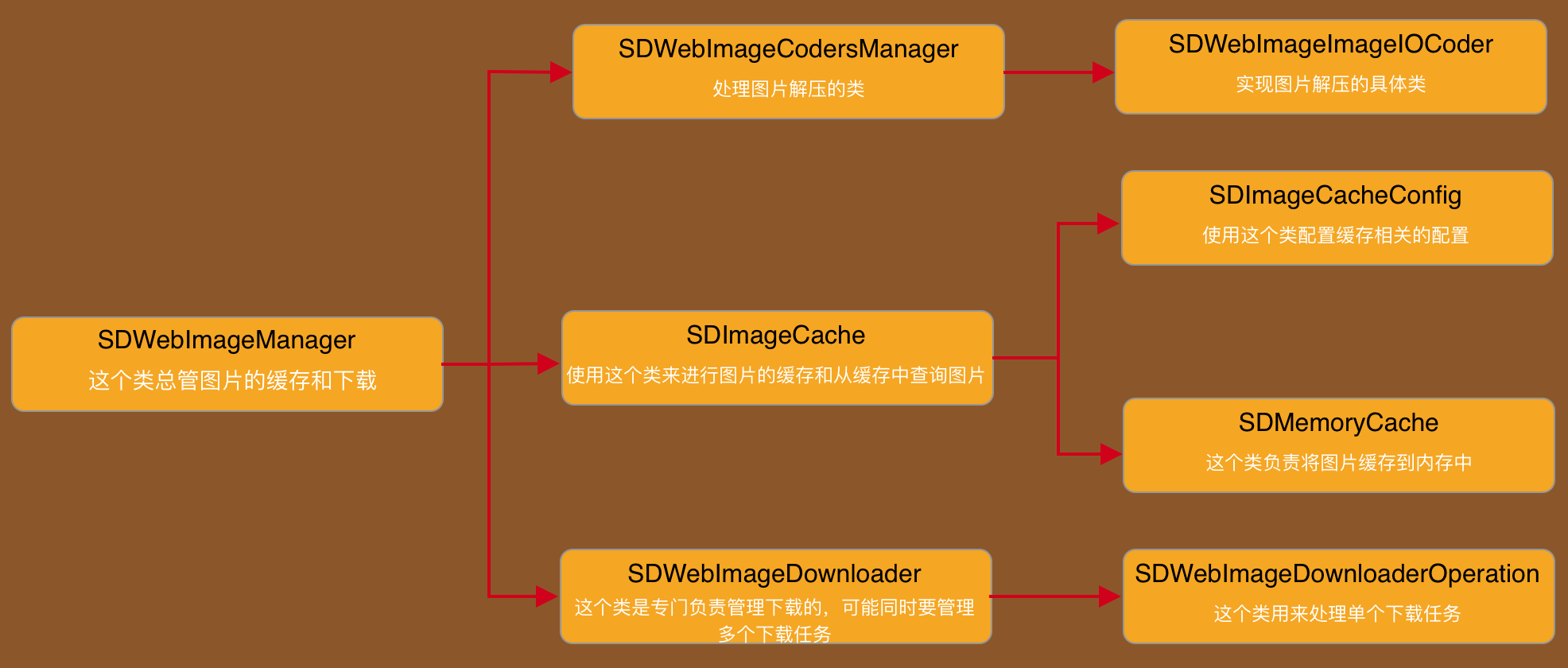

框架的主要类

从上图也可以看出，整个框架主要分为管理者 , 图片的下载，图片的缓存，和处理解压图片相关的类。

下载

SDWebImageDownloader：实际的下载功能和配置提供者，使用了单例的设计模式。
SDWebImageDownloaderOperation：继承自NSOperation，是一个异步的NSOperation,封装了NSURLSession进行实际的下载任务。

缓存处理

SDImageCache：继承自NSCache，实际处理内存cache和磁盘cache。
SDImageCacheConfig：缓存处理的配置。
SDWebImageCoder：定义了编码解码的协议，从而可以实现面向协议编程。

功能类

SDWebImageManager：宏观的从整体上管理整个框架的类。
SDWebImagePrefetcher：图片的预加载管理。

图片的编码解码处理

SDWebImageCodersManager：实际的编码解码功能处理，使用了单例模式。
在子线程预解码图片生成位图, 在需要显示的时候就不需要在主线程解码了
主流图片加载库所使用的预解码究竟干了什么

源码分析

这一部分我们进行详细的源码分析。

1. UIImageVIew的类别

// 1.1 UIImageView类别给出的接口
- (void)sd_setImageWithURL:(nullable NSURL *)url placeholderImage:(nullable UIImage *)placeholder {[self sd_setImageWithURL:url placeholderImage:placeholder options:0 progress:nil completed:nil];
}// 1.2 调到了这里,这里有调到UIVIew的类别
- (void)sd_setImageWithURL:(nullable NSURL *)urlplaceholderImage:(nullable UIImage *)placeholderoptions:(SDWebImageOptions)optionsprogress:(SDWebImageDownloaderProgressBlock)progressBlockcompleted:(SDExternalCompletionBlock)completedBlock {[self sd_internalSetImageWithURL:urlplaceholderImage:placeholderoptions:optionsoperationKey:nilsetImageBlock:nilprogress:progressBlockcompleted:completedBlock];
}

2. 调到了UIView的类别

// 2.UIView的类别
- (void)sd_internalSetImageWithURL:(nullable NSURL *)urlplaceholderImage:(nullable UIImage *)placeholderoptions:(SDWebImageOptions)optionsoperationKey:(nullable NSString *)operationKeysetImageBlock:(nullable SDSetImageBlock)setImageBlockprogress:(nullable SDWebImageDownloaderProgressBlock)progressBlockcompleted:(nullable SDExternalCompletionBlock)completedBlock {NSString *validOperationKey = operationKey ?: NSStringFromClass([self class]);[self sd_cancelImageLoadOperationWithKey:validOperationKey];objc_setAssociatedObject(self, &imageURLKey, url, OBJC_ASSOCIATION_RETAIN_NONATOMIC);if (!(options & SDWebImageDelayPlaceholder)) {dispatch_main_async_safe(^{[self sd_setImage:placeholder imageData:nil basedOnClassOrViaCustomSetImageBlock:setImageBlock];});}if (url) {// check if activityView is enabled or notif ([self sd_showActivityIndicatorView]) {[self sd_addActivityIndicator];}__weak __typeof(self)wself = self;// 找manager问图片,然后处理找到的情况id <SDWebImageOperation> operation = [SDWebImageManager.sharedManager loadImageWithURL:url options:options progress:progressBlock completed:^(UIImage *image, NSData *data, NSError *error, SDImageCacheType cacheType, BOOL finished, NSURL *imageURL) {// 假设已经找到了__strong __typeof (wself) sself = wself;[sself sd_removeActivityIndicator];if (!sself) {return;}dispatch_main_async_safe(^{if (!sself) {return;}// 找到了就回调if (image && (options & SDWebImageAvoidAutoSetImage) && completedBlock) {completedBlock(image, error, cacheType, url);return;} else if (image) {// 找了图片,但是completedBlock为nil,用默认的回调[sself sd_setImage:image imageData:data basedOnClassOrViaCustomSetImageBlock:setImageBlock];[sself sd_setNeedsLayout];} else {// 没找到图片,还是用占位图if ((options & SDWebImageDelayPlaceholder)) {[sself sd_setImage:placeholder imageData:nil basedOnClassOrViaCustomSetImageBlock:setImageBlock];[sself sd_setNeedsLayout];}}if (completedBlock && finished) {completedBlock(image, error, cacheType, url);}});}];[self sd_setImageLoadOperation:operation forKey:validOperationKey];} else {dispatch_main_async_safe(^{[self sd_removeActivityIndicator];if (completedBlock) {completedBlock(nil, error, SDImageCacheTypeNone, url);}});}
}

前面的调用比较简单,现在到了第3步SDWebImageManager类的loadImageWithURL:方法看起：

/// 3.在这里加载图片,核心的核心. 检查内存,硬盘,网络下载
- (id <SDWebImageOperation>)loadImageWithURL:(nullable NSURL *)urloptions:(SDWebImageOptions)optionsprogress:(nullable SDWebImageDownloaderProgressBlock)progressBlockcompleted:(nullable SDInternalCompletionBlock)completedBlock {// Invoking this method without a completedBlock is pointlessNSAssert(completedBlock != nil, @"If you mean to prefetch the image, use -[SDWebImagePrefetcher prefetchURLs] instead");// Very common mistake is to send the URL using NSString object instead of NSURL. For some strange reason, Xcode won't// throw any warning for this type mismatch. Here we failsafe this error by allowing URLs to be passed as NSString.if ([url isKindOfClass:NSString.class]) {url = [NSURL URLWithString:(NSString *)url];}// Prevents app crashing on argument type error like sending NSNull instead of NSURLif (![url isKindOfClass:NSURL.class]) {url = nil;}__block SDWebImageCombinedOperation *operation = [SDWebImageCombinedOperation new];__weak SDWebImageCombinedOperation *weakOperation = operation;// 检查是否有过失败记录了,如果下载失败过,就不重复尝试了BOOL isFailedUrl = NO;if (url) {@synchronized (self.failedURLs) {isFailedUrl = [self.failedURLs containsObject:url];}}if (url.absoluteString.length == 0 || (!(options & SDWebImageRetryFailed) && isFailedUrl)) {[self callCompletionBlockForOperation:operation
completion:completedBlock error:[NSError errorWithDomain:NSURLErrorDomain code:NSURLErrorFileDoesNotExist userInfo:nil] url:url];return operation;}// 把operation添加进入调度数组@synchronized (self.runningOperations) {[self.runningOperations addObject:operation];}NSString *key = [self cacheKeyForURL:url];// 生成一个查找缓存队列的NSOperation , operation.cacheOperation = [self.imageCache queryCacheOperationForKey:key
done:^(UIImage *cachedImage, NSData *cachedData, SDImageCacheType cacheType) {// 这里是查询结果,可能找到了图片,也可能没找到if (operation.isCancelled) {[self safelyRemoveOperationFromRunning:operation];return;}// 图片没有找到,去网络下载if (....) {if (cachedImage && options & SDWebImageRefreshCached) {// If image was found in the cache but SDWebImageRefreshCached is provided, notify about the cached image// AND try to re-download it in order to let a chance to NSURLCache to refresh it from server.[self callCompletionBlockForOperation:weakOperation
completion:completedBlock image:cachedImage data:cachedData error:nil cacheType:cacheType finished:YES url:url];}.......// 图片没有找到,去网络下载SDWebImageDownloadToken *subOperationToken = [self.imageDownloader downloadImageWithURL:url options:downloaderOptions progress:progressBlock
completed:^(UIImage *downloadedImage, NSData *downloadedData, NSError *error, BOOL finished) {// 下载结果的回调__strong __typeof(weakOperation) strongOperation = weakOperation;// 下载取消了if (!strongOperation || strongOperation.isCancelled) {// Do nothing if the operation was cancelled// See #699 for more details} else if (error) {// 下载出错了,把这个URL存入下载失败的URL中,以后不重复尝试了[self callCompletionBlockForOperation:strongOperation
completion:completedBlock error:error url:url];if (   ....  ) {@synchronized (self.failedURLs) {[self.failedURLs addObject:url];}}}else {// 下载成功,下载失败的URL中移除掉if ((options & SDWebImageRetryFailed)) {@synchronized (self.failedURLs) {[self.failedURLs removeObject:url];}}BOOL cacheOnDisk = !(options & SDWebImageCacheMemoryOnly);if (options & SDWebImageRefreshCached && cachedImage && !downloadedImage) {// Image refresh hit the NSURLCache cache, do not call the completion block} else if (.....) {dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH, 0), ^{UIImage *transformedImage = [self.delegate imageManager:self transformDownloadedImage:downloadedImage withURL:url];if (transformedImage && finished) {BOOL imageWasTransformed = ![transformedImage isEqual:downloadedImage];// pass nil if the image was transformed, so we can recalculate the data from the image[self.imageCache storeImage:transformedImage imageData:(imageWasTransformed ? nil : downloadedData) forKey:key toDisk:cacheOnDisk completion:nil];}[self callCompletionBlockForOperation:strongOperation
completion:completedBlock image:transformedImage data:downloadedData error:nil cacheType:SDImageCacheTypeNone finished:finished url:url];});} else {// 下载成功,存入内存和硬盘if (downloadedImage && finished) {[self.imageCache storeImage:downloadedImage imageData:downloadedData forKey:key toDisk:cacheOnDisk completion:nil];}[self callCompletionBlockForOperation:strongOperation
completion:completedBlock image:downloadedImage data:downloadedData error:nil cacheType:SDImageCacheTypeNone finished:finished url:url];}}// 下载完成了,从活动operation中移除这个if (finished) {[self safelyRemoveOperationFromRunning:strongOperation];}}];operation.cancelBlock = ^{[self.imageDownloader cancel:subOperationToken];__strong __typeof(weakOperation) strongOperation = weakOperation;[self safelyRemoveOperationFromRunning:strongOperation];};} else if (cachedImage) {// 图片在内存或者硬盘中找到了,调用回调__strong __typeof(weakOperation) strongOperation = weakOperation;[self callCompletionBlockForOperation:strongOperation completion:completedBlock image:cachedImage data:cachedData error:nil cacheType:cacheType finished:YES url:url];[self safelyRemoveOperationFromRunning:operation];} else {// Image not in cache and download disallowed by delegate__strong __typeof(weakOperation) strongOperation = weakOperation;[self callCompletionBlockForOperation:strongOperation completion:completedBlock image:nil data:nil error:nil cacheType:SDImageCacheTypeNone finished:YES url:url];[self safelyRemoveOperationFromRunning:operation];}}];return operation;
}

总结一下SDWebImageManager的loadImageWithURL:所做的事情：

其实在loadImageWithURL:里面做了加载图片的完整流程。首先检查传入的NSURL的有效性。然后开始从缓存中查找是否有这个图片，得到查询结果之后再根据查询结果和设置的option判断是否需要进行下载操作，如果不需要下载操作那么就直接使用cache image进行下载回调。如果需要进行下载操作那么就开始下载，下载完成后按照设置的option将图片缓存到内存和磁盘，最后进行完成的回调。

然后我们看一下第4步 , 查询缓存的具体过程，也就是SDImageCache这个类的queryCacheOperationForKey:方法：
这里也是采用注释的方式

/// 4.SDImageCache重要的外界接口,根据key查找出图片,并回调回去,本类的核心方法
- (nullable NSOperation *)queryCacheOperationForKey:(nullable NSString *)key
done:(nullable SDCacheQueryCompletedBlock)doneBlock {if (!key) {if (doneBlock) {doneBlock(nil, nil, SDImageCacheTypeNone);}return nil;}// First check the in-memory cache...  先从内存中找UIImage *image = [self imageFromMemoryCacheForKey:key];if (image) {NSData *diskData = nil;if ([image isGIF]) {diskData = [self diskImageDataBySearchingAllPathsForKey:key];}if (doneBlock) {doneBlock(image, diskData, SDImageCacheTypeMemory);}return nil;}// 在io线程,查找内存,如果在内存中找到了,缓存一份到cache中NSOperation *operation = [NSOperation new];dispatch_async(self.ioQueue, ^{if (operation.isCancelled) {// do not call the completion if cancelledreturn;}@autoreleasepool {NSData *diskData = [self diskImageDataBySearchingAllPathsForKey:key];UIImage *diskImage = [self diskImageForKey:key];if (diskImage && self.config.shouldCacheImagesInMemory) {NSUInteger cost = SDCacheCostForImage(diskImage);[self.memCache setObject:diskImage forKey:key cost:cost];}if (doneBlock) {dispatch_async(dispatch_get_main_queue(), ^{doneBlock(diskImage, diskData, SDImageCacheTypeDisk);});}}});return operation;
}

总结一下queryCacheOperationForKey:方法所做的事情：

SDImageCache这个类是专门负责缓存相关的问题的，包括查询缓存和将图片进行缓存。SDImageCache使用了一个NSCache对象来进行内存缓存，磁盘缓存则是把图片数据存放在应用沙盒的 Caches/default/com.hackemist.SDWebImageCache.default/ ...具体的图片文件

首先查询内存缓存，内存缓存查询完了以后再判断是否需要查询磁盘缓存。如果查询内存缓存已经有了结果并且没有设置一定要查询磁盘缓存，那么就不查询磁盘缓存，否则就要查询磁盘缓存。内存缓存没有查询到图片，并且磁盘缓存查询到了图片，那么就要把这个内容缓存到内存缓存中。

图片的缓存查询完成后我们再来看一下第6步 , 下载操作，即SDWebImageDownloader的downloadImageWithURL:方法

/// 6.真正的下载开始了,生成了下载的request和对应的operation
- (nullable SDWebImageDownloadToken *)downloadImageWithURL:(NSURL *)urloptions:(SDWebImageDownloaderOptions)optionsprogress:(SDWebImageDownloaderProgressBlock)progressBlockcompleted:(SDWebImageDownloaderCompletedBlock)completedBlock {__weak SDWebImageDownloader *wself = self;return [self addProgressCallback:progressBlock completedBlock:completedBlock forURL:url createCallback:^SDWebImageDownloaderOperation *{// 生成一个下载的Request,添加进入下载队列中__strong __typeof (wself) sself = wself;NSTimeInterval timeoutInterval = sself.downloadTimeout;if (timeoutInterval == 0.0) {timeoutInterval = 15.0;}NSURLRequestCachePolicy cachePolicy = options & SDWebImageDownloaderUseNSURLCache ?NSURLRequestUseProtocolCachePolicy : NSURLRequestReloadIgnoringLocalCacheData;NSMutableURLRequest *request = [[NSMutableURLRequest alloc] initWithURL:urlcachePolicy:cachePolicytimeoutInterval:timeoutInterval];request.HTTPShouldHandleCookies = (options & SDWebImageDownloaderHandleCookies);request.HTTPShouldUsePipelining = YES;if (sself.headersFilter) {request.allHTTPHeaderFields = sself.headersFilter(url, [sself.HTTPHeaders copy]);}else {request.allHTTPHeaderFields = sself.HTTPHeaders;}SDWebImageDownloaderOperation *operation = [[sself.operationClass alloc] initWithRequest:request inSession:sself.session options:options];operation.shouldDecompressImages = sself.shouldDecompressImages;if (sself.urlCredential) {operation.credential = sself.urlCredential;} else if (sself.username && sself.password) {operation.credential = [NSURLCredential credentialWithUser:sself.username password:sself.password
persistence:NSURLCredentialPersistenceForSession];}if (options & SDWebImageDownloaderHighPriority) {operation.queuePriority = NSOperationQueuePriorityHigh;} else if (options & SDWebImageDownloaderLowPriority) {operation.queuePriority = NSOperationQueuePriorityLow;}[sself.downloadQueue addOperation:operation];if (sself.executionOrder == SDWebImageDownloaderLIFOExecutionOrder) {[sself.lastAddedOperation addDependency:operation];sself.lastAddedOperation = operation;}return operation;}];
}

SDWebImageDownloader这个类是专门管理下载的，它有一个属性是downloadQueue，这是一个NSOperationQueue，每创建一个新的下载任务都把它加入到这个downloadQueue中，让downloadQueue去管理任务的开始，取消，结束。

上面的方法其实做的事情很简单，就是创建了一个下载图片的operation，然后把它加入到了downloadQueue中去。

下面的过程就是下载了，即SDWebImageDownloader类的addProgressCallback:方法：

/// 生成operation对应的token,然后把进度和完成的回调放到operation上
- (nullable SDWebImageDownloadToken *)addProgressCallback:(SDWebImageDownloaderProgressBlock)progressBlockcompletedBlock:(SDWebImageDownloaderCompletedBlock)completedBlockforURL:(nullable NSURL *)urlcreateCallback:(SDWebImageDownloaderOperation *))createCallback {if (url == nil) {if (completedBlock != nil) {completedBlock(nil, nil, nil, NO);}return nil;}__block SDWebImageDownloadToken *token = nil;dispatch_barrier_sync(self.barrierQueue, ^{SDWebImageDownloaderOperation *operation = self.URLOperations[url];if (!operation) {operation = createCallback();self.URLOperations[url] = operation;__weak SDWebImageDownloaderOperation *woperation = operation;operation.completionBlock = ^{dispatch_barrier_sync(self.barrierQueue, ^{SDWebImageDownloaderOperation *soperation = woperation;if (!soperation) return;if (self.URLOperations[url] == soperation) {[self.URLOperations removeObjectForKey:url];};});};}id downloadOperationCancelToken = [operation addHandlersForProgress:progressBlock completed:completedBlock];token = [SDWebImageDownloadToken new];token.url = url;token.downloadOperationCancelToken = downloadOperationCancelToken;});return token;
}

我们知道，NSOperation类的真正执行任务是在其start方法里面，那么我们看一下SDWebImageDownloaderOperation的start方法的具体实现：
代码比较长，我在关键部分加了注释

/// 这个SDWebImageDownloaderOperation任务启动了
- (void)start {@synchronized (self) {if (self.isCancelled) {self.finished = YES;[self reset];return;}#if SD_UIKIT//这一部分就是解决在后台仍然进行下载的问题Class UIApplicationClass = NSClassFromString(@"UIApplication");BOOL hasApplication = UIApplicationClass && [UIApplicationClass respondsToSelector:@selector(sharedApplication)];if (hasApplication && [self shouldContinueWhenAppEntersBackground]) {__weak __typeof__ (self) wself = self;UIApplication * app = [UIApplicationClass performSelector:@selector(sharedApplication)];self.backgroundTaskId = [app beginBackgroundTaskWithExpirationHandler:^{__strong __typeof (wself) sself = wself;if (sself) {[sself cancel];[app endBackgroundTask:sself.backgroundTaskId];sself.backgroundTaskId = UIBackgroundTaskInvalid;}}];}
#endifif (self.options & SDWebImageDownloaderIgnoreCachedResponse) {// Grab the cached data for later check  从系统的URL缓存中找下NSCachedURLResponse *cachedResponse = [[NSURLCache sharedURLCache] cachedResponseForRequest:self.request];if (cachedResponse) {self.cachedData = cachedResponse.data;}}NSURLSession *session = self.unownedSession;if (!self.unownedSession) {NSURLSessionConfiguration *sessionConfig = [NSURLSessionConfiguration defaultSessionConfiguration];sessionConfig.timeoutIntervalForRequest = 15;//创建一个session对象，因为后面要创建NSURLSessionTask，需要session对象self.ownedSession = [NSURLSession sessionWithConfiguration:sessionConfigdelegate:selfdelegateQueue:nil];session = self.ownedSession;}self.dataTask = [session dataTaskWithRequest:self.request];self.executing = YES;}// 开启下载任务[self.dataTask resume];if (self.dataTask) {// 通知进度,当前下载大小0,未知总长度,下载的URLfor (SDWebImageDownloaderProgressBlock progressBlock in [self callbacksForKey:kProgressCallbackKey]) {progressBlock(0, NSURLResponseUnknownLength, self.request.URL);}// 发出通知,开始下载__weak typeof(self) weakSelf = self;dispatch_async(dispatch_get_main_queue(), ^{[[NSNotificationCenter defaultCenter] postNotificationName:SDWebImageDownloadStartNotification object:weakSelf];});} #if SD_UIKITClass UIApplicationClass = NSClassFromString(@"UIApplication");if(!UIApplicationClass || ![UIApplicationClass respondsToSelector:@selector(sharedApplication)]) {return;}if (self.backgroundTaskId != UIBackgroundTaskInvalid) {UIApplication * app = [UIApplication performSelector:@selector(sharedApplication)];[app endBackgroundTask:self.backgroundTaskId];self.backgroundTaskId = UIBackgroundTaskInvalid;}
#endif
}

这里就是通过一个session对象和一个request对象创建了一个dataTask对象，这个dataTask对象才是真正用来下载的，然后调用[self.dataTask resume]执行下载。

当然下载的过程中会通过回调返回当前的下载进度

- (void)URLSession:(NSURLSession *)session dataTask:(NSURLSessionDataTask *)dataTask didReceiveData:(NSData *)data {[self.imageData appendData:data];// 对图片的二进制流进行处理,应该对对图片编解码的,看不太懂if ((self.options & SDWebImageDownloaderProgressiveDownload) && self.expectedSize > 0) {......}// 下载进度的回调for (SDWebImageDownloaderProgressBlock progressBlock in [self callbacksForKey:kProgressCallbackKey]) {progressBlock(self.imageData.length, self.expectedSize, self.request.URL);}
}

用来存储回调的数据结构是一个NSMutableDictionary,其中key是图片的url，value是回调的数组,数组中是一个个的block
举个例子，存储后应该是这样的，

@{@"http://imageurl":[@{@"progress":progressBlock1,@"completed":completedBlock1,},@{@"progress":progressBlock2,@"completed":completedBlock2,},],//其他
}

对于二进制文件都会有头信息,SDWebImage就根据头部信息来获取图片类型


+ (SDImageFormat)sd_imageFormatForImageData:(nullable NSData *)data {if (!data) {return SDImageFormatUndefined;}uint8_t c;[data getBytes:&c length:1];switch (c) {case 0xFF:return SDImageFormatJPEG;case 0x89:return SDImageFormatPNG;case 0x47:return SDImageFormatGIF;case 0x49:case 0x4D:return SDImageFormatTIFF;case 0x52:// R as RIFF for WEBPif (data.length < 12) {return SDImageFormatUndefined;}NSString *testString = [[NSString alloc] initWithData:[data subdataWithRange:NSMakeRange(0, 12)] encoding:NSASCIIStringEncoding];if ([testString hasPrefix:@"RIFF"] && [testString hasSuffix:@"WEBP"]) {return SDImageFormatWebP;}}return SDImageFormatUndefined;
}

到这里SDWebImage的源码分析就结束啦。SDWebImage每个类都很小(超过500行的都不多,配合流程图还是比较好理解的),最后放下github上官方给出的流程和各个类之间的联系.
