web课程设计——手机销售网

一、实验要求

使用JSP技术建立一个简单的手机销售网。

采用MVC模式实现各个模块，数据库使用MySQL数据库

系统后台开发

1、在导航条中添加一个后台管理菜单

2、后台页面分成左右两个框，左边显示一个树形菜单，右边根据菜单选择显示相应的交互界面；

3、实现对用户、产品分类、产品、订单等的后台管理；

4、具体界面自行设计

二、开发环境&技术

Myecplise10 MySQL5.7

JSP技术 dtree树形组件

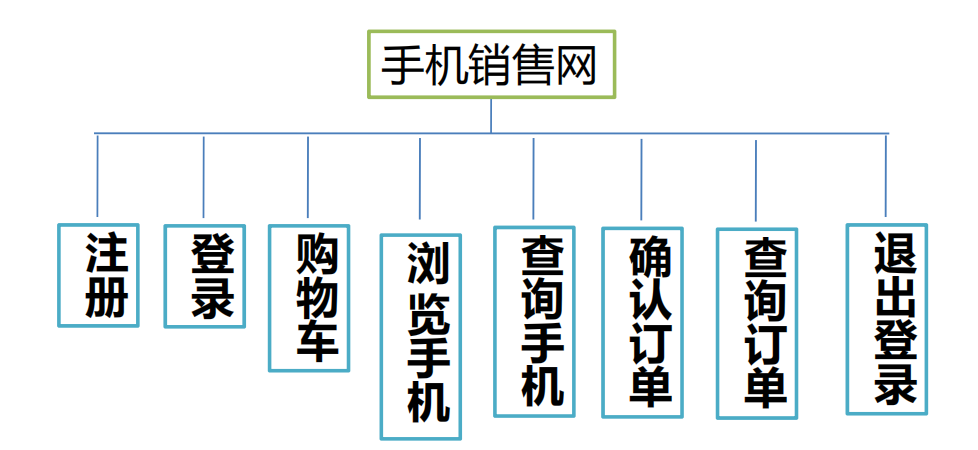

三、系统模块构成

主要分析系统具有功能

四、数据库设计与建立

数据库设计

使用MySQL建立数据库mobileshop, 该库中有4个表 , 分别为use (用户)表、mobileClassify (手机类别) 表、mobileForm (手机基本信息) 表和orderForm (订单信息) 表。

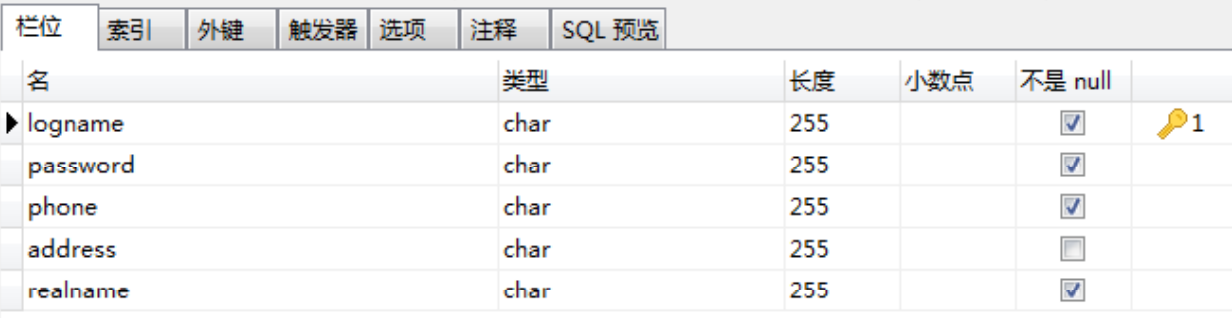

1.user表：用户存储用户基本信息

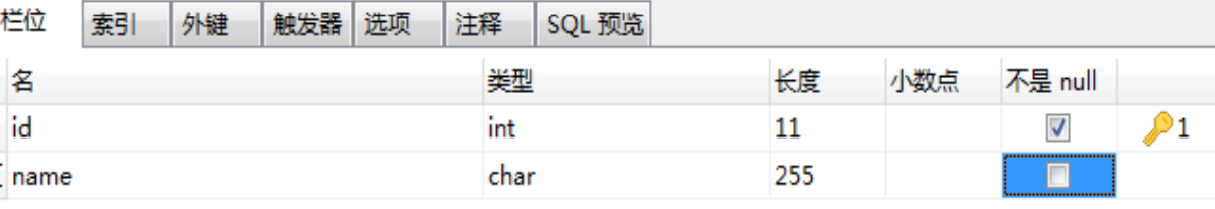

2.mobileclassify表：用于手机类别信息

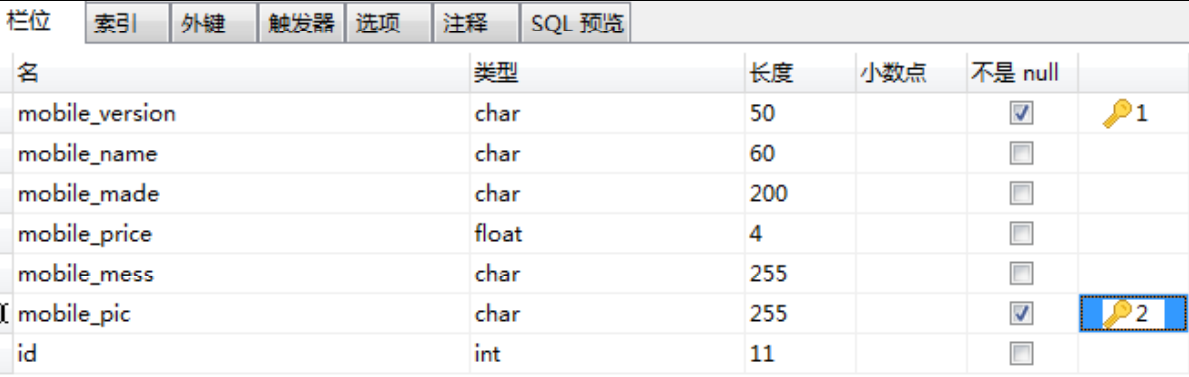

3.mobileForm表：用于手机的基本信息

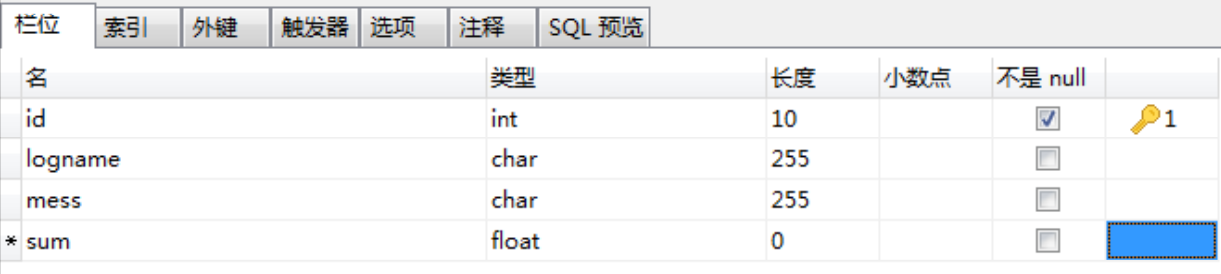

4.orderForm表：用于存储订单信息

数据库连接

避免操作数据库出现中文乱码，需要使用Connection getConnection(java.lang.String)方法建立连接，连接中的代码是（用户是root，其密码是空）：

Stringg uri = "jjdbc:myy qsql://127.0.0.1/mobileshop?"+

"user=root&password=&characterEncoding=gb2312";

Connection con Dri erManager getConnection( ri)

五、系统管理

建立相应的目录：

（1）ch10\WEB-INF \classes

根据servlet的包名，在classes下建立相应的子目录

比如：servlet类的包名为：myservlet.control，则在classes下建立子目录：

\myservlet\control;

比如javaBean类的包名为：mybean.data，则在则在classes下建立子目录：

\mybean\data；

六、页面管理

1.老师提供了源代码（提供的源代码默认root用户的密码为空，如果自行设置了密码需要在每一个连接数据库时的代码把密码加上）。源代码的调试结果如下
：

2.会员注册

当新用户注册时，该模块要求用户必须输入会员姓名、密码信息，否则不允许注册。用户的注册信息被存入数据库user表中。

该模块由一个jsp页面视图构成，该页面负责提交用户注册信息到servlet控制器registerServlet，并负责显示注册是否成功的信息。控制器registerServlet，负责连接数据库，并将用户提交的信息写入user表中，并将用户转发到注册页面查看注册反馈信息。

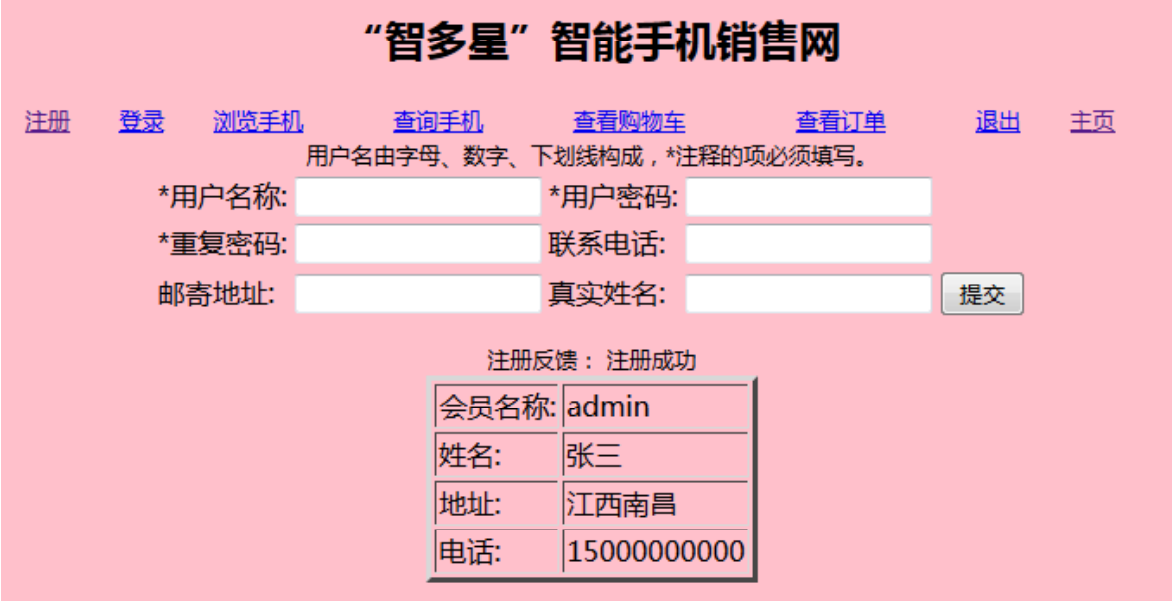

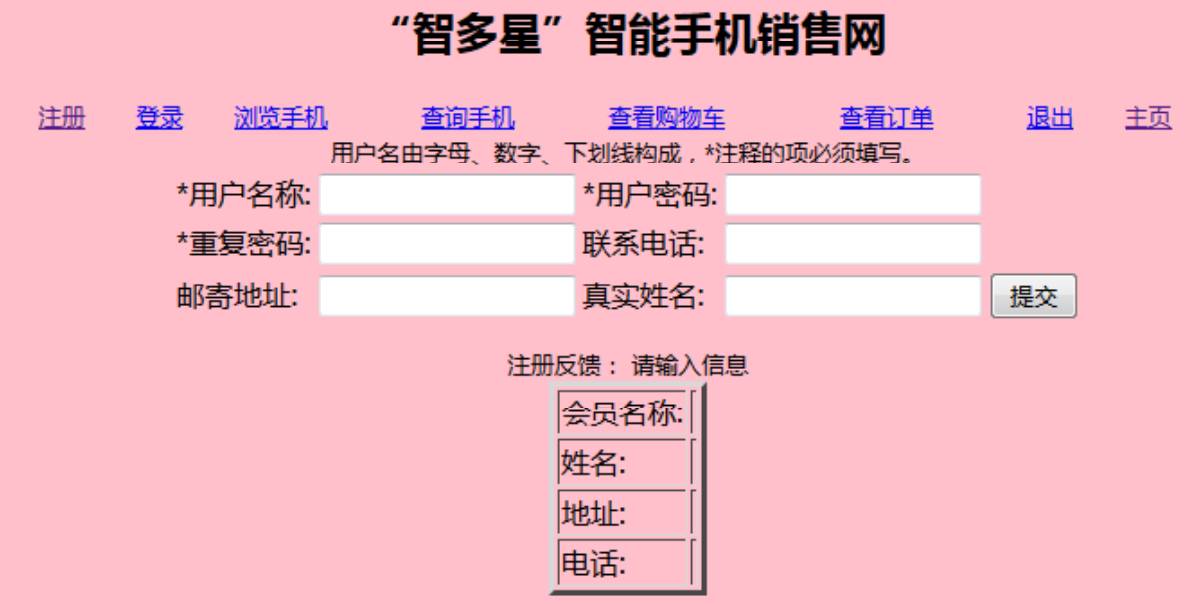

注册页面

注册成功

3.会员登录

用户可以在该模块中输入自己所注册的会员名和密码，系统将会对会员名和密码进行验证，如果输入正确，可以进入系统，否则系统将会提示用户名或者密码错误相关信息。

该模块视图部分有一个JSP页面login.jsp构成，该页面负责提交用户的登录信息到控制器并显示登录是否成功。该模块的JavaBean模型loginBean存储用户登录信息。Servlet控制器连接数据库负责验证会员名和密码是否正确，并负责让视图显示更新后的数据。

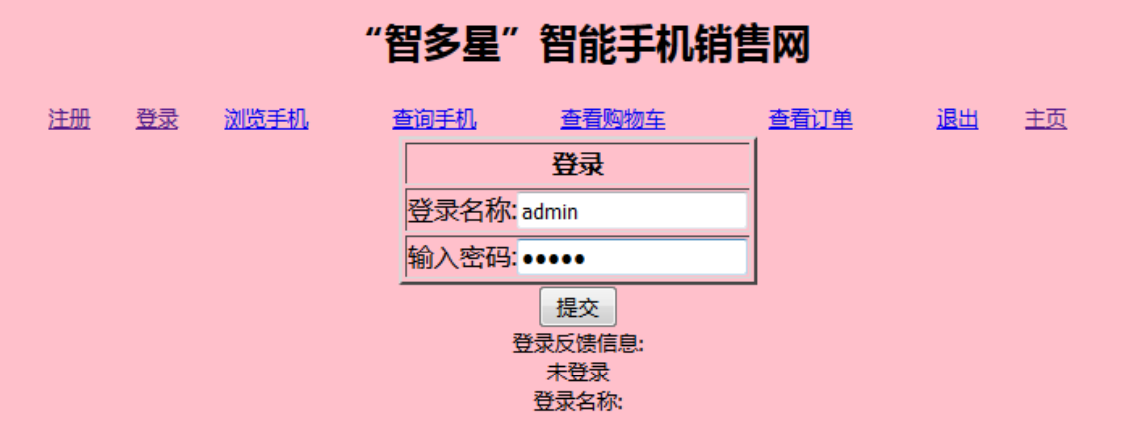

登陆界面

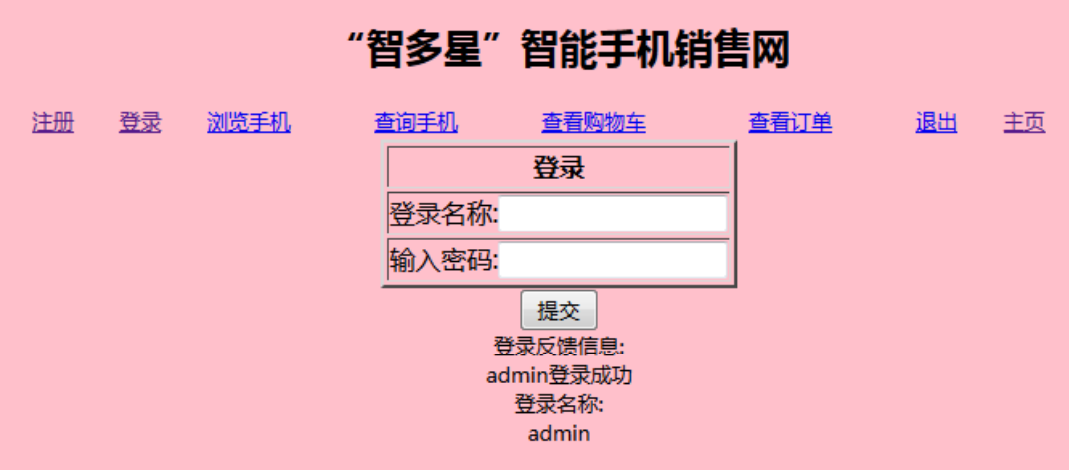

登陆成功界面

浏览手机

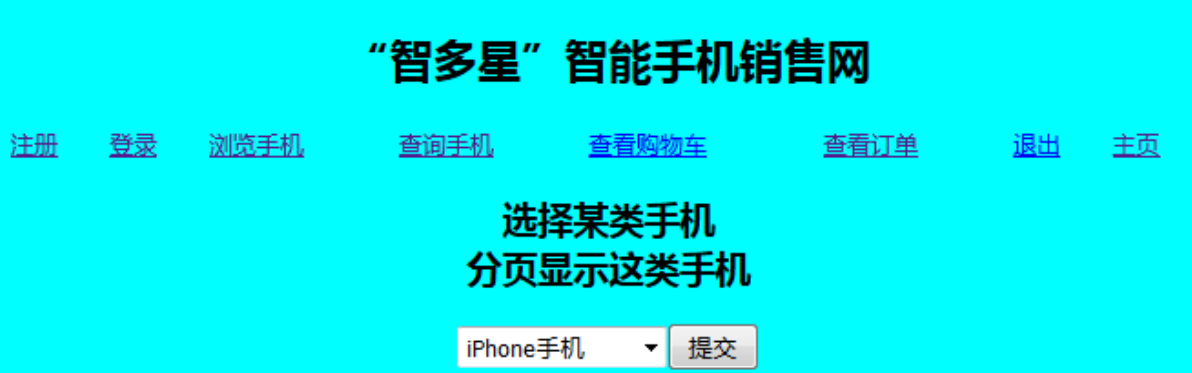

选择分类页面（选择分类页面（lookMobile.jsp）

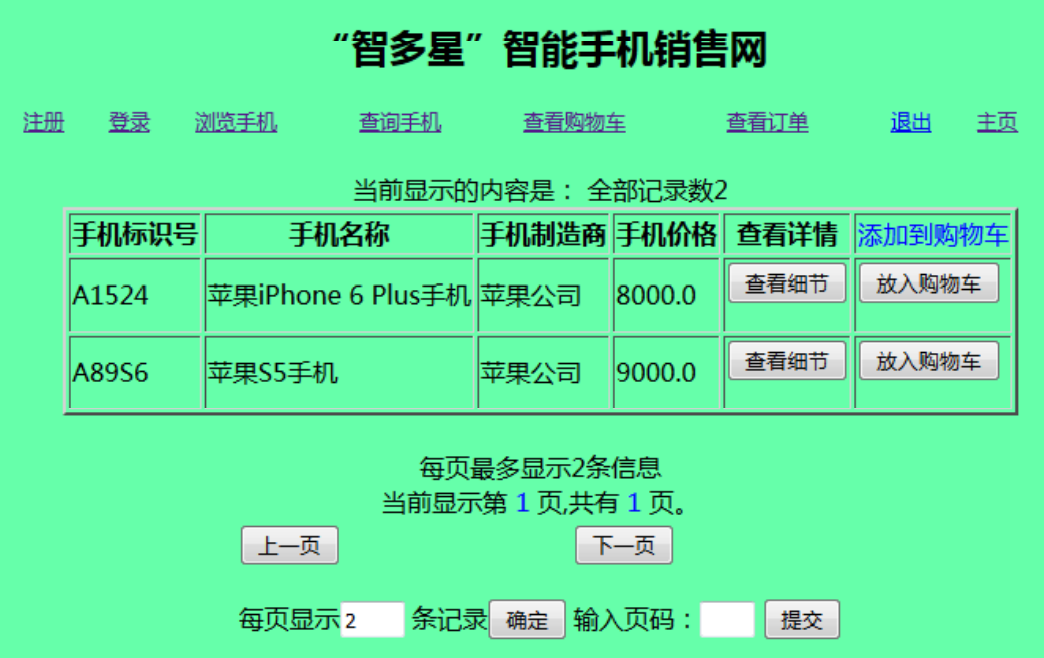

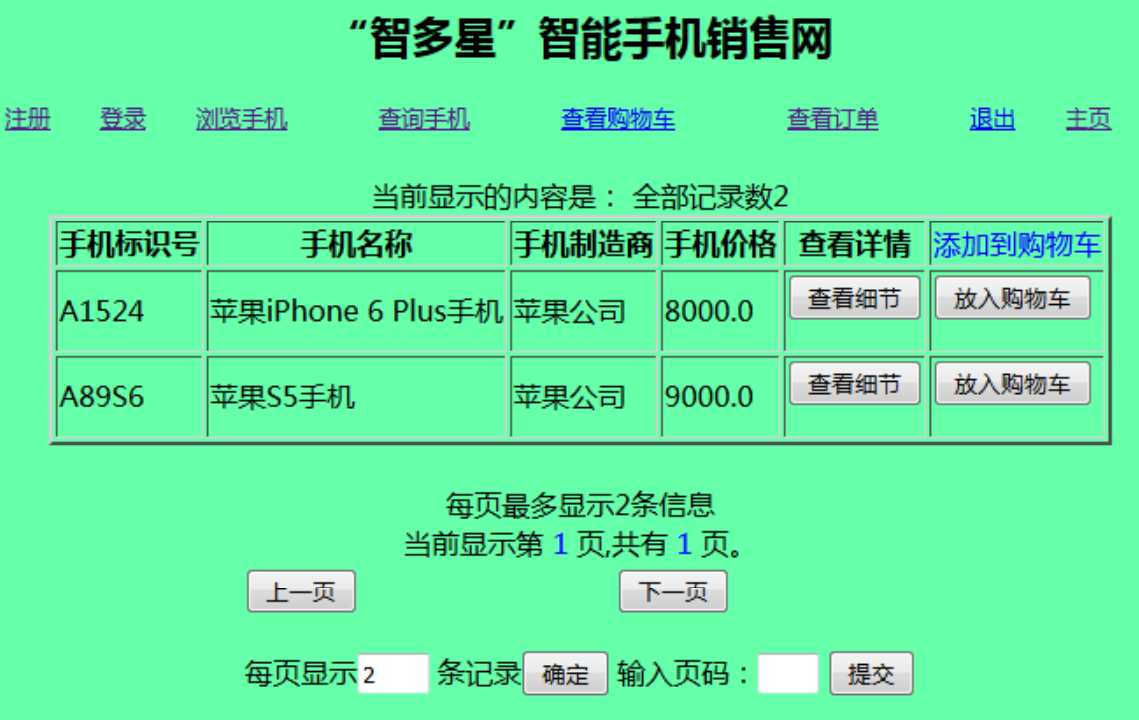

分页显示页面（byPageShow.jsp）

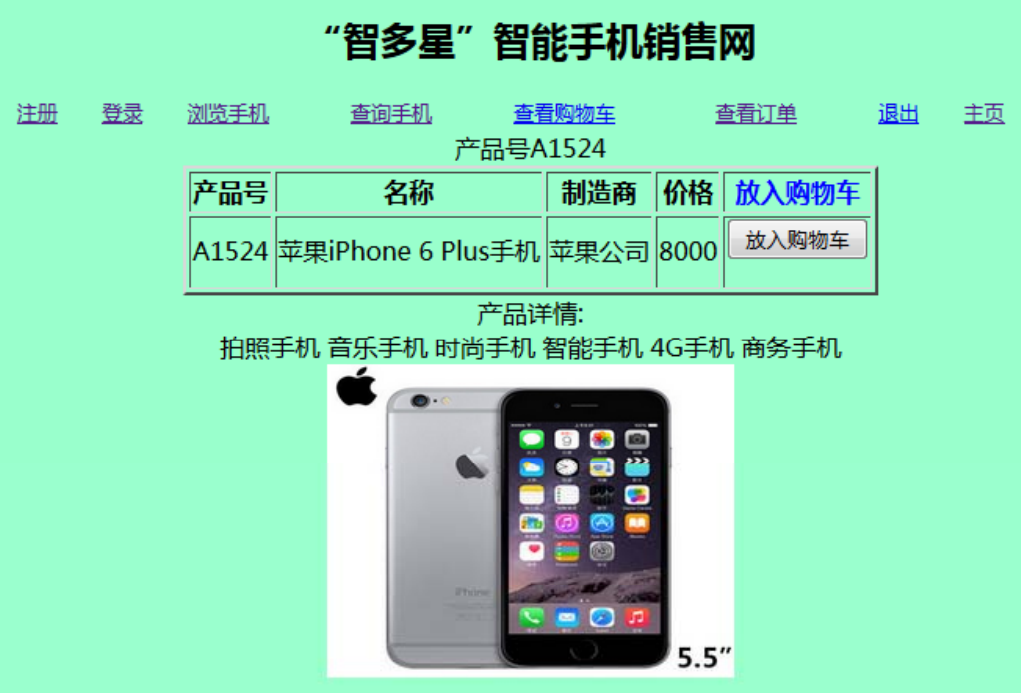

查看产品细节页面（showDetail.jsp）

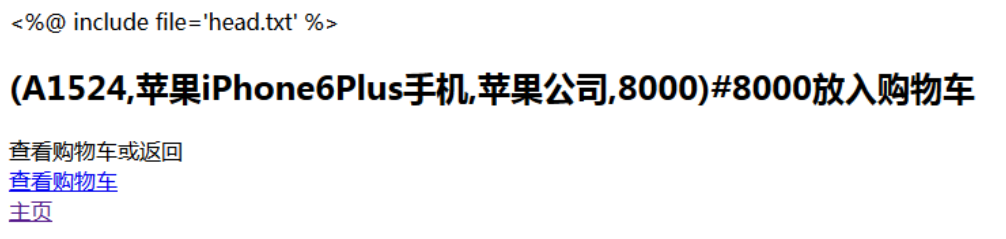

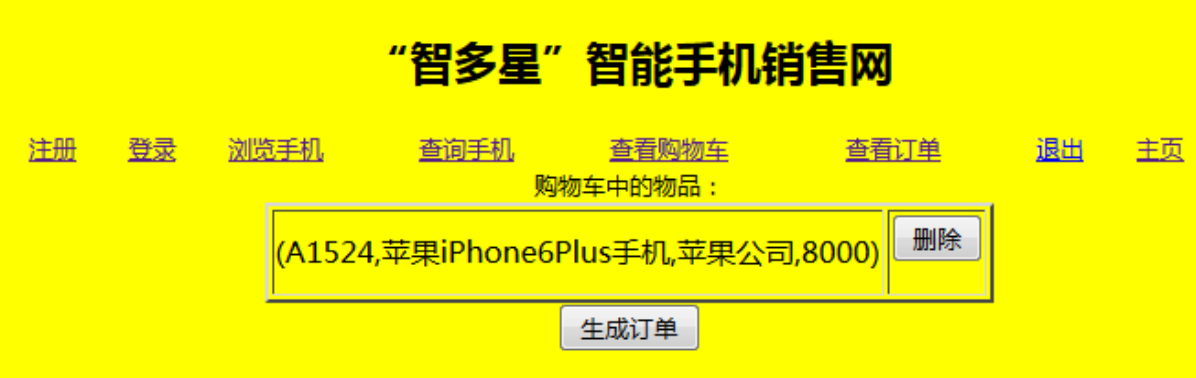

查看购物车

登录用户可以通过该模块视图部分lookShoppingCar.jsp查看购物车中的物品，并选择是否删除某个货物。该模块由两个servlet控制器，deleteServlet负责删除购车车中的物品，buyServlet负责将用户购物车中物品存放到数据库中。

查看手机

本模块包括有两个 jj psp 页面视图 searchMobile.jsp和byPageShow.jsp页面构成，用户在searchMobile.JSP页面输入查询信息，提交给searchByConditionServlet控制器，该控制器将其结果存放在bean中，将用户重定向byPageShow.jsp页面负责显示bean中的数据。

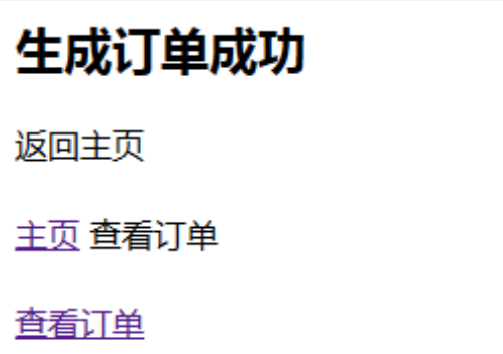

查询订单

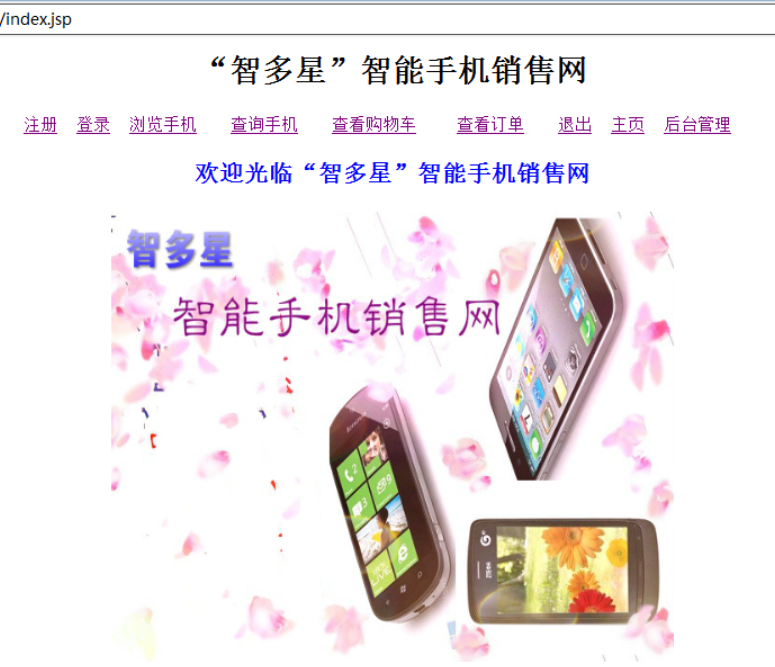

首先在导航栏添加后台链接选项
在dtree官网下载dtree菜单源码，对源码更改实现具体功能，后台页面实现功能如下：
houtai.jsp
<%@ page contentType="text/html;charset=GB2312" %>
<head><link rel="StyleSheet" href="dtree.css" type="text/css" /><script type="text/javascript" src="dtree.js"></script>
</head>
<body>
<h2>后台管理</h2>
<div class="dtree"><p><a href="javascript: d.openAll();">open all</a> | <a href="javascript: d.closeAll();">close all</a></p><script type="text/javascript">d = new dTree('d');d.add(0,-1,'后台操作菜单');d.add(1,0,'更新用户信息');d.add(2,0,'更新手机类别');d.add(3,0,'更新手机信息');d.add(4,0,'更新订单信息');d.add(5,0,'<a href="index.jsp" target ="_top">返回主页</ a>');d.add(6,1,'<a href="lookUser.jsp" target="right">显示</a>');d.add(7,1,'<a href="updateUser.jsp" target="right">修改</a>');d.add(8,1,'<a href="delUser.jsp" target="right">删除</a>');	d.add(9,2,'<a href="addmobileClsssify.jsp" target="right">增加</a>');		d.add(10,2,'<a href="lookmobileClassify.jsp" target="right">显示</a>');d.add(11,2,'<a href="updatemobileClassify.jsp" target="right">修改</a>');d.add(12,2,'<a href="delmobileClassify.jsp" target="right">删除</a>');d.add(13,3,'<a href="addmobileForm.jsp" target="right">增加</a>');	d.add(14,3,'<a href="lookmobileForm.jsp" target="right">显示</a>');d.add(15,3,'<a href="updatemobileForm.jsp" target="right">修改</a>');d.add(16,3,'<a href="delmobileForm.jsp" target="right">删除</a>');d.add(18,4,'<a href="lookorder.jsp" target="right">显示</a>');d.add(19,4,'<a href="delorderForm.jsp" target="right">删除</a>');document.write(d);</script>
</div>
</body>
</html>在树形菜单使用的还有dtree官网下载的dtree.js及dtree.css文件。
登录代码如下：
inputRegister.jsp
<%@ page contentType="text/html;charset=GB2312" %>
<jsp:useBean id="userBean" class="classes.mybean.data.Register" scope="request"/>
<HEAD><%@ include file="head.txt" %></HEAD>
<title>注册页面</title>
<HTML><BODY background-color=pink><Font size=2>
<div align="center">
<FORM action="registerServlet" method="post" name=form>
<table>用户名由字母、数字、下划线构成，*注释的项必须填写。
<tr><td>*用户名称:</td><td><Input type=text name="logname" ></td><td>*用户密码:</td><td><Input type=password name="password"></td></tr><tr><td>*重复密码:</td><td><Input type=password name="again_password"></td><td>联系电话:</td><td><Input type=text name="phone"></td></tr><tr><td>邮寄地址:</td><td><Input type=text name="address"></td><td>真实姓名:</td><td><Input type=text name="realname"></td><td><Input type=submit name="g" value="提交"></td> </tr>
</table>
</Form>
</div >
<div align="center">
<p> 注册反馈：
<jsp:getProperty name="userBean"  property="backNews" />
<table border=3><tr><td>会员名称:</td><td><jsp:getProperty name="userBean" property="logname"/></td></tr><tr><td>姓名:</td><td><jsp:getProperty name="userBean" property="realname"/></td></tr><tr><td>地址:</td><td><jsp:getProperty name="userBean" property="address"/></td></tr><tr><td>电话:</td><td><jsp:getProperty name="userBean" property="phone"/></td></tr>
</table></div >
</Body></HTML>登陆验证控制器代码:
HandleRegister.java
package classes.myservlet.control;
import classes.mybean.data.*;
import java.sql.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class HandleRegister extends HttpServlet {public void init(ServletConfig config) throws ServletException { super.init(config);try {  Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e){System.out.println("驱动加载出错");} }public String handleString(String s){   try{ byte bb[]=s.getBytes("iso-8859-1");s=new String(bb);}catch(Exception ee){} return s;  }public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=GB2312";Connection con; PreparedStatement sql; Register userBean=new Register();  //创建的Javabean模型request.setAttribute("userBean",userBean);String logname=request.getParameter("logname").trim();String password=request.getParameter("password").trim();String again_password=request.getParameter("again_password").trim();String phone=request.getParameter("phone").trim();String address=request.getParameter("address").trim();String realname=request.getParameter("realname").trim();if(logname==null)logname="";if(password==null)password="";if(!password.equals(again_password)) { userBean.setBackNews("两次密码不同，注册失败，");RequestDispatcher dispatcher= request.getRequestDispatcher("inputRegisterMess.jsp");dispatcher.forward(request, response);//转发return;}boolean isLD=true;for(int i=0;i<logname.length();i++){char c=logname.charAt(i);if(!((c<='z'&&c>='a')||(c<='Z'&&c>='A')||(c<='9'&&c>='0'))) isLD=false;} boolean boo=logname.length()>0&&password.length()>0&&isLD;String backNews="";try{   con=DriverManager.getConnection(uri,"root","123456");String insertCondition="INSERT INTO user VALUES (?,?,?,?,?)";sql=con.prepareStatement(insertCondition);if(boo){ sql.setString(1,handleString(logname));sql.setString(2,handleString(password));sql.setString(3,handleString(phone));sql.setString(4,handleString(address));sql.setString(5,handleString(realname));int m=sql.executeUpdate();if(m!=0){backNews="注册成功";userBean.setBackNews(backNews);userBean.setLogname(logname);userBean.setPhone(handleString(phone));userBean.setAddress(handleString(address));userBean.setRealname(handleString(realname));}}else {backNews="信息填写不完整或名字中有非法字符";userBean.setBackNews(backNews);  }con.close();}catch(SQLException exp){backNews="该会员名已被使用，请您更换名字"+exp;userBean.setBackNews(backNews); }RequestDispatcher dispatcher= request.getRequestDispatcher("inputRegisterMess.jsp");dispatcher.forward(request, response);//转发}public  void  doGet(HttpServletRequest request,HttpServletResponse response)throws ServletException,IOException {doPost(request,response);}
}
用户删除代码:deleteUer.jsp<%@ page language="java" import="java.util.*" pageEncoding="gb2312"%>
<html><body bgcolor="cyan"><div align=center><form action="deleteUser"method="post"> <br/>输入要删除的用户名:<input type=text name="username"><input type=submit name="submit"value="提交"></form></div></body>
</html>删除用户控制器:deleteUser.javapackage classes.myservlet.control;
import java.sql.*;
import java.util.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class deleteUser extends HttpServlet{public void init(ServletConfig config) throws ServletException { super.init(config);try{ Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e) {}}
public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {PrintWriter out=response.getWriter();Connection con;Statement sql;
response.setContentType("text/html;charset=GB2312");
response.setCharacterEncoding("gb2312");
String  username=request.getParameter("username").trim();
if(username==null) {
username="";
}
else {out.println("<html><body>");
try {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";con=DriverManager.getConnection(uri,"root","123456");sql=con.createStatement();int m=sql.executeUpdate("DELETE FROM user WHERE logname='"+username+"'");if(m!=0) {out.println("删除成功");response.sendRedirect("index.jsp");}else {out.println("删除失败，或不存在该用户!");    response.sendRedirect("index.jsp");}
out.println("</body></html>用户查询代码:
selectUser.jsp  //直接与数据库交互
<%@page contentType="text/html;charset=GB2312"  %>
<%@page import="java.sql.*" %>
<html>
<body><bgcolor=cyan>
<%
Connection con;
Statement sql;
ResultSet rs;
try{
Class.forName("com.mysql.cj.jdbc.Driver");
}
catch(Exception e){}
try{
String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";
con=DriverManager.getConnection(uri,"root","123456");
sql=con.createStatement();
rs=sql.executeQuery("select logname from user");
out.println("<div align=center backgroud-color=blue>");
out.println("<table border=2>");
while(rs.next()){
out.println("<tr>");
out.println("<td>"+rs.getString(1)+"</td>");
out.println("</tr>");
}
out.println("</table>");
out.println("</div>");
con.close();
}
catch(SQLException e){
out.println(e);
}
%>手机分类添加源代码:
addmobileClassify.jsp
<%@ page language="java" import="java.util.*" pageEncoding="GB2312"%><body><div align=center><form action="addmobileClassify",method="post">手机类别信息添加<table border=2 ><tr><td>手机类别标识符:</td><td><input type="text"name="id"></tr><tr><td>手机类别名:</td><td><input type="text"name="name"></td></tr></table><input type=submit name="submit" value="提交"></form></div></body>
</html>手机分类信息查询代码：
selectmobileClassify.jsp<%@page contentType="text/html;charset=GB2312"  %>
<%@page import="java.sql.*" %>
<html>
<body><bgcolor=cyan>
<%
Connection con;
Statement sql;
ResultSet rs;
try{
Class.forName("com.mysql.cj.jdbc.Driver");}
catch(Exception e){}
try{
String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";
con=DriverManager.getConnection(uri,"root","123456");
sql=con.createStatement();
rs=sql.executeQuery("select * from mobileClassify");
out.println("<div align=center backgroud-color=blue>");
out.println("<table border=2>");
while(rs.next()){
out.println("<tr>");
out.println("<td>"+rs.getInt(1)+"</td>");
out.println("<td>"+rs.getString(2)+"</td>");out.println("</tr>");
}
out.println("</table>");
out.println("</div>");
con.close();
}
catch(SQLException e){
out.println(e);
}手机信息添加代码：
addmobileForm.jsp<%@ page language="java" import="java.util.*" pageEncoding="GB2312"%><body><div align=center><form action="addmobileForm",method="post">手机信息添加<table border=2 ><tr><td>手机版本:</td><td><input type="text"name="version"></td><td>手机名:</td><td><input type="text"name="name"></td></tr><tr><td>手机制造商:</td><td><input type="text"name="made"></td><td>手机价格:</td><td><input type="text"name="price"></td></tr><tr><td>手机信息:</td><td><input type="text"name="mess"></td><td>手机图片:</td><td><input type="text"name="pic"></td></tr><td>手机标识号:</td><td><input type="text"name="name"></td></table><input type=submit name="submit" value="提交"></form></div></body>
</html>手机信息添加控制器:
addmobileForm.java
package classes.myservlet.control;
import java.sql.*;
import java.util.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class addmobileForm extends HttpServlet{public void init(ServletConfig config) throws ServletException { super.init(config);try{ Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e) {}}
public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {PrintWriter out=response.getWriter();Connection con;PreparedStatement sql;response.setContentType("text/html;charset=GB2312");
request.setCharacterEncoding("gb2312");
String  version=request.getParameter("version");
String  name=request.getParameter("name");
String made=request.getParameter("made");
String price=request.getParameter("price");
String mess=request.getParameter("mess");
String pic=request.getParameter("pic");
String id=request.getParameter("id");if(version==null) {
version="";
}
if(pic==null) {pic="";
}
else {
int ID=Integer.parseInt(id);
float Price=Float.parseFloat(price);
out.println("<html><body>");
try {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";con=DriverManager.getConnection(uri,"root","123456");sql=con.prepareStatement("insert into mobileForm values(?,?,?,?,?,?,?)");sql.setString(1,version);sql.setString(2,name);sql.setString(3,made);sql.setFloat(4,Price);sql.setString(5,mess);sql.setString(6,pic);sql.setInt(7,ID);int m=sql.executeUpdate();if(m!=0) {out.println("添加成功");response.sendRedirect("index.jsp");}else {out.println("添加失败，或已存在该用户!");response.sendRedirect("index.jsp");}out.println("</body></html>手机信息删除代码：delectmobileForm.jsp<%@ page language="java" import="java.util.*" pageEncoding="gb2312"%>
<html><body bgcolor="cyan"><div align=center><form action="deletemobileForm"method="post"> <br/><h1>删除手机信息</h1><input type=text name="message"><input type="radio"name="radio" value="id"checked="checked">手机版本
<input type="radio"name="radio"value="name">手机名<input type=submit name="submit"value="提交"></form></div></body>
</html>手机信息删除控制器:
deletemobileForm.java
package classes.myservlet.control;
import java.sql.*;
import java.util.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class deletemobileForm extends HttpServlet{public void init(ServletConfig config) throws ServletException { super.init(config);try{ Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e) {}}
public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {PrintWriter out=response.getWriter();Connection con;Statement sql;String mess="0";response.setContentType("text/html;charset=GB2312");
request.setCharacterEncoding("gb2312");
String  name=request.getParameter("radio");
String message=request.getParameter("message");
if(message==null) {message="";
}
if(name=="id") {mess="delete * from mobileForm where version='"+message+"'";
}
else if(name=="name") {mess="delete * from mobileForm where name='"+message+"'";
}
out.println("<html><body>");
try {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";con=DriverManager.getConnection(uri,"root","123456");sql=con.createStatement();int m=sql.executeUpdate(mess);if(m!=0) {out.println("删除成功");response.sendRedirect("index.jsp");}else {out.println("删除失败，或不存在该手机信息!");    }out.println("</body></html>手机信息查询:
selectmobileForm.jsp
<%@page contentType="text/html;charset=GB2312"  %>
<%@page import="java.sql.*" %>
<html>
<body><bgcolor=cyan>
<%
Connection con;
Statement sql;
ResultSet rs;
try{
Class.forName("com.mysql.cj.jdbc.Driver");}
catch(Exception e){}
try{
String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";
con=DriverManager.getConnection(uri,"root","123456");
sql=con.createStatement();
rs=sql.executeQuery("select * from mobileForm");
out.println("<div align=center backgroud-color=blue>");
out.println("<table border=2>");
while(rs.next()){
out.println("<tr>");
out.println("<td>"+rs.getString(1)+"</td>");
out.println("<td>"+rs.getString(2)+"</td>");
out.println("<td>"+rs.getString(3)+"</td>");
out.println("<td>"+rs.getFloat(4)+"</td>");
out.println("<td>"+rs.getString(5)+"</td>");
out.println("<td>"+rs.getString(6)+"</td>");
out.println("<td>"+rs.getInt(7)+"</td>");
out.println("</tr>");
}
out.println("</table>");
out.println("</div>");
con.close();
}
catch(SQLException e){
out.println(e);
}
%>订单添加代码:
addorderForm.jsp
<%@ page language="java" import="java.util.*" pageEncoding="GB2312"%><body><div align=center><form action="addorderForm",method="post">订单信息添加<table border=2 ><tr><td>订单编号:</td><td><input type="text"name="id"></tr><tr><td>订单注册名:</td><td><input type="text"name="logname"></td></tr><tr><td>订单信息:</td><td><input type="text"name="mess"></td></tr><tr><td>订单价格总和:</td><td><input type="text"name="sum"></td></tr></table><input type=submit name="submit" value="提交"></form></div></body>
</html>订单添加控制器：
addorderForm.java
package classes.myservlet.control;
import java.sql.*;
import java.util.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class addorderForm extends HttpServlet{public void init(ServletConfig config) throws ServletException { super.init(config);try{ Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e) {}}
public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {PrintWriter out=response.getWriter();Connection con;PreparedStatement sql;
request.setCharacterEncoding("gb2312");
response.setContentType("type=text/html;charset=gb2312");
String  id=request.getParameter("id").trim();
String  logname=request.getParameter("logname").trim();
String mess=request.getParameter("mess").trim();
String sum=request.getParameter("sum").trim();if(id==null) {
id="";
}
if(logname==null) {logname="";
}
int ID=Integer.parseInt(id);
float Sum=Float.parseFloat(sum);
try {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";con=DriverManager.getConnection(uri,"root","123456");sql=con.prepareStatement("insert into orderForm values(?,?,?,?)");sql.setInt(1,ID);sql.setString(2, logname);sql.setString(3,mess);sql.setFloat(4, Sum);int m=sql.executeUpdate();if(m!=0) {out.println("添加成功");}else {out.println("添加失败，或已存在该用户!");    }con.close();
}
catch(SQLException e) {out.println(""+e);}
}
public  void  doGet(HttpServletRequest request,HttpServletResponse response)throws ServletException,IOException {
doPost(request,response);
}
}订单信息删除控制器:
deleteorderForm.java
package classes.myservlet.control;
import java.sql.*;
import java.util.*;
import java.io.*;
import javax.servlet.*;
import javax.servlet.http.*;
public class deleteorderForm extends HttpServlet{public void init(ServletConfig config) throws ServletException { super.init(config);try{ Class.forName("com.mysql.cj.jdbc.Driver");}catch(Exception e) {}}
public  void  doPost(HttpServletRequest request,HttpServletResponse response) throws ServletException,IOException {PrintWriter out=response.getWriter();Connection con;Statement sql;StringBuffer mess=new StringBuffer();response.setContentType("text/html;charset=GB2312");
request.setCharacterEncoding("gb2312");
String  name=request.getParameter("radio").trim();
String message=request.getParameter("message").trim();
if(message==null) {message="";
}
if(name=="id") {int Message=Integer.parseInt(message);
mess.append("delete * from mobileForm where id='"+Message+"'");
}
else if(name=="name") {mess.append("delete * from orderForm where logname='"+message+"'");
}
out.println("<html><body>");
try {String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";con=DriverManager.getConnection(uri,"root","123456");sql=con.createStatement();String str=new String(mess);int m=sql.executeUpdate(str);if(m!=0) {out.println("删除成功");response.sendRedirect("index.jsp");}else {out.println("删除失败，或不存在该用户!");    }out.println("</body></html>订单查询文件:
<%@page contentType="text/html;charset=GB2312"  %>
<%@page import="java.sql.*" %>
<html>
<body><bgcolor=cyan>
<%
Connection con;
Statement sql;
ResultSet rs;
try{
Class.forName("com.mysql.cj.jdbc.Driver");}
catch(Exception e){}
try{
String uri="jdbc:mysql://localhost:3306/mobileshop?serverTimezone=UTC&characterEncoding=gb2312";
con=DriverManager.getConnection(uri,"root","123456");
sql=con.createStatement();
rs=sql.executeQuery("select * from orderForm");
out.println("<html><body>");
out.println("<div align=center>");
out.println("<table>");
while(rs.next()){
out.println("<tr>");
out.println("<td>"+rs.getInt(1)+"</td>");
out.println("<td>"+rs.getString(2)+"</td>");
out.println("<td>"+rs.getString(3)+"</td>");
out.println("<td>"+rs.getFloat(4)+"</td>");
out.println("</tr>");
}
out.println("</table>");
out.println("</div>");
out.println("</body></html>
