根据方志鹏大神的观点而来,他的博客地址:
http://blog.csdn.net/forezp/article/details/70148833
简介:Spring Cloud为开发人员提供了快速构建分布式系统中一些常见模式的工具(例如配置管理,服务发现,断路器,智能路由,微代理,控制总线)。分布式系统的协调导致了样板模式, 使用Spring Cloud开发人员可以快速地支持实现这些模式的服务和应用程序。他们将在任何分布式环境中运行良好,包括开发人员自己的笔记本电脑,裸机数据中心,以及Cloud Foundry等托管平台。
——–Spring Cloud 官网
一、服务提供者eureka的注册中心

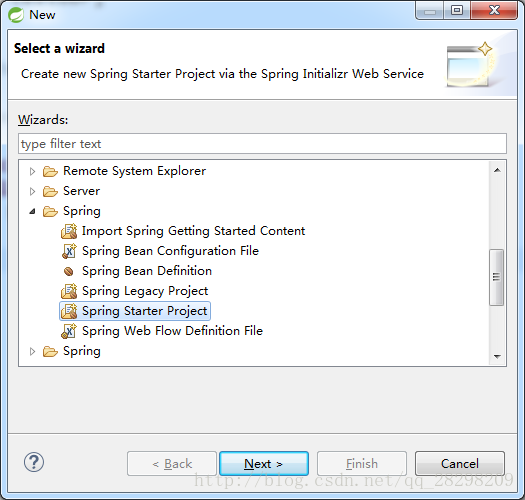

1.1创建Spring Boot工程(注:我的IDE是STS)

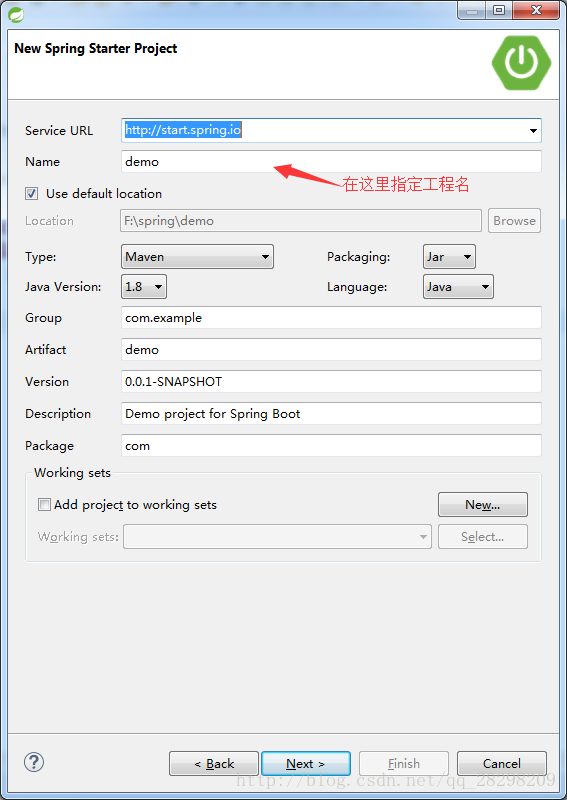

持续下一步,就能创建好一个springboot工程啦
注:创建好后的maven工程小图标的右上角有一个s,工程名右边也有个“[boot]”
1.2pom.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.example</groupId><artifactId>demo</artifactId><version>0.0.1-SNAPSHOT</version><packaging>jar</packaging><name>demo</name><description>Demo project for Spring Cloud</description><!-- Spring Boot工程中必要 --><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>1.5.2.RELEASE</version><relativePath /> <!-- lookup parent from repository --></parent><!-- 编码 --><properties><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><java.version>1.8</java.version></properties><dependencies><!--eureka server --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-eureka-server</artifactId></dependency><!-- spring boot test --><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency></dependencies><!-- Spring Cloud必要 --><dependencyManagement><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>Dalston.RC1</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement><!-- maven插件 --><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build><repositories><repository><id>spring-milestones</id><name>Spring Milestones</name><url>https://repo.spring.io/milestone</url><snapshots><enabled>false</enabled></snapshots></repository></repositories></project>
1.3application.java
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;@EnableEurekaServer // 开启注册中心
@SpringBootApplication
public class Application {public static void main(String[] args) {SpringApplication.run(Application.class, args);}
}
1.4application.yml
注:创建工程后此配置文件后缀为application.properties,手动改为application.yml;理由是有层次感。
server:#注册中心端口号port: 8761eureka:instance:hostname: localhost##false表明自己是一个serverclient:registerWithEureka: falsefetchRegistry: falseserviceUrl:defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

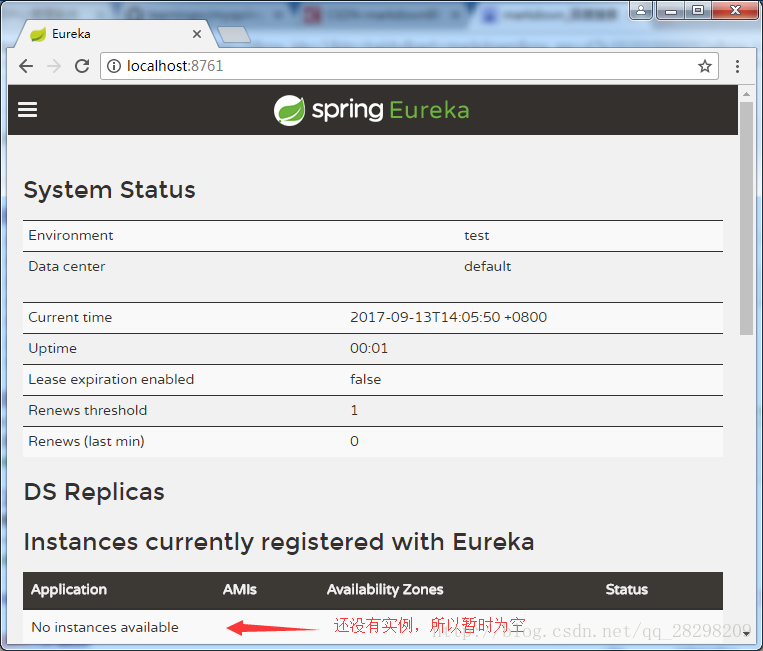

1.5有界面的注册中心
启动main方法,在浏览器中输入localhost:8761
等创建客户端实例后,在此会显示
二、服务提供者eureka的客户端
2.1pom.xml文件
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.example</groupId><artifactId>service-hi</artifactId><version>0.0.1-SNAPSHOT</version><packaging>jar</packaging><name>service-hi</name><description>Demo project for Spring Cloud</description><!-- Spring Boot工程中必要 --><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>1.5.2.RELEASE</version><relativePath /> <!-- lookup parent from repository --></parent><!-- 编码 --><properties><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><java.version>1.8</java.version></properties><dependencies><!--eureka server --><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-eureka</artifactId></dependency><!-- spring boot web --><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><!-- spring boot test --><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency></dependencies><!-- Spring Cloud必要 --><dependencyManagement><dependencies><dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-dependencies</artifactId><version>Dalston.RC1</version><type>pom</type><scope>import</scope></dependency></dependencies></dependencyManagement><!-- maven插件 --><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build><repositories><repository><id>spring-milestones</id><name>Spring Milestones</name><url>https://repo.spring.io/milestone</url><snapshots><enabled>false</enabled></snapshots></repository></repositories></project>
2.2application.java
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;@SpringBootApplication
@EnableEurekaClient // 表示这个类为服务提供者客户端
@RestController
public class ServiceHiApplication {public static void main(String[] args) {SpringApplication.run(ServiceHiApplication.class, args);}@Value("${server.port}")String port;@RequestMapping("/hi")public String home(@RequestParam String name) {return "hi "+name+",i am from port:" +port;}
}
2.3application.yml
eureka:client:serviceUrl:defaultZone: http://localhost:8761/eureka/
server:port: 8762
spring:application:#必须指定这个name,与工程名一致name: service-hi

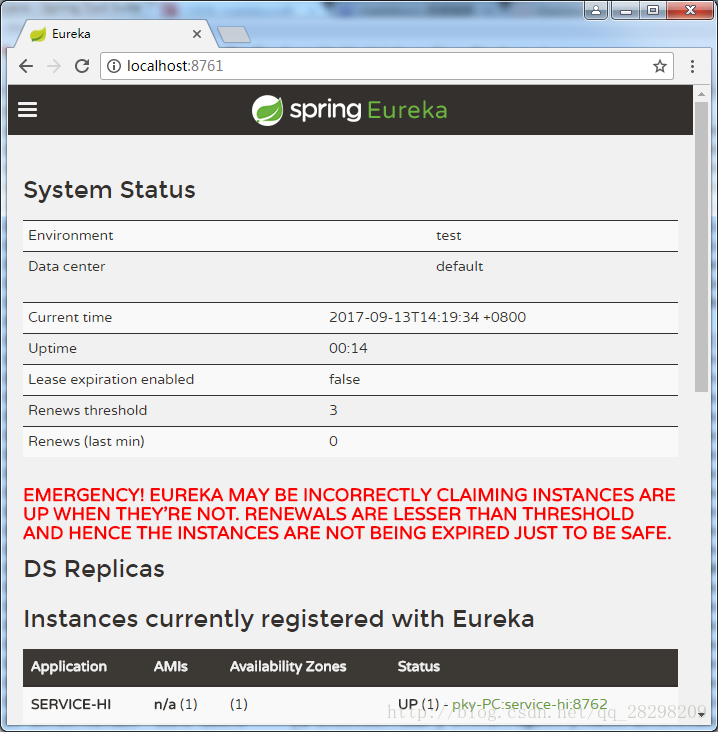

2.4有实例的注册中心
访问 localhost:8762(要带参数)
github地址:https://github.com/learningsc/myspringcloud
分享记忆,留住感动;虚心接受各位大神的指教。有问题随时交流,欢迎留言。
