oracle客户端连接oracle服务器

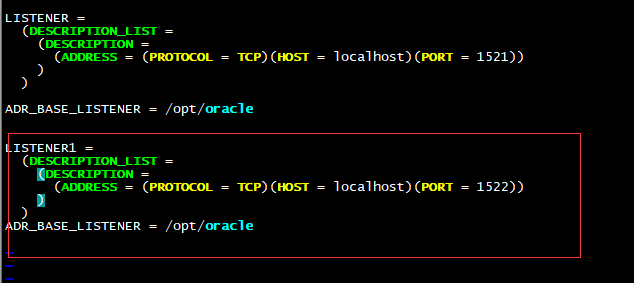

1、配置监听器
在这里插入图片描述

2 启动监听器
在这里插入图片描述
启动成功！

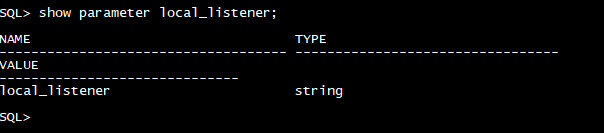

3查看当前数据库local_listener的值
发现该参数没有值，没有设置动态注册的监听器信息

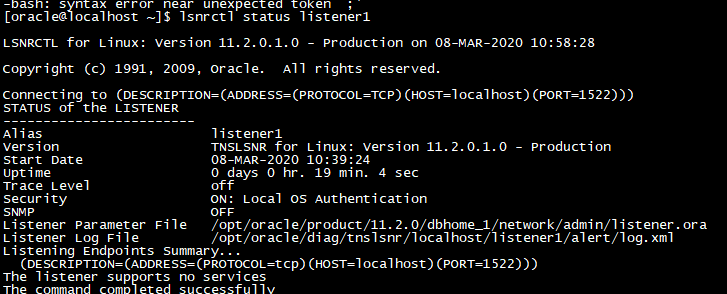

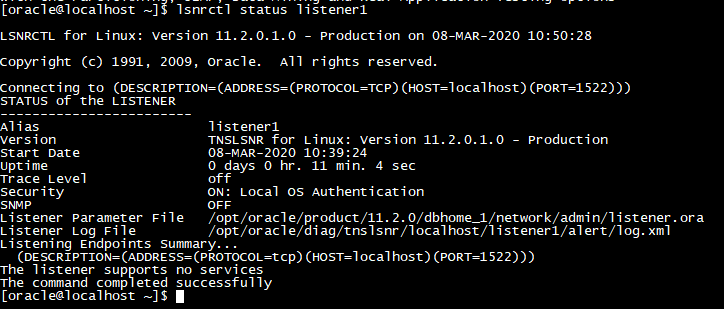

4，查看刚配置监听器listner1状态信息
没有任何服务注册

5 动态注册orcl数据库
注册完立即生效
alter system set local_listener=’(address_list=(address=(protocol=tcp)(host=192.168.1.107)(port=1521)))’;
在这里插入图片描述

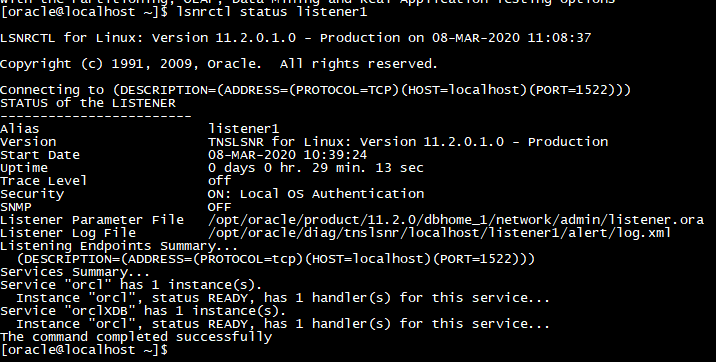

6，查看listener1的状态信息，有无服务
可以看到orcl服务成功注册到监听器listener1
lsnrctl status listener1

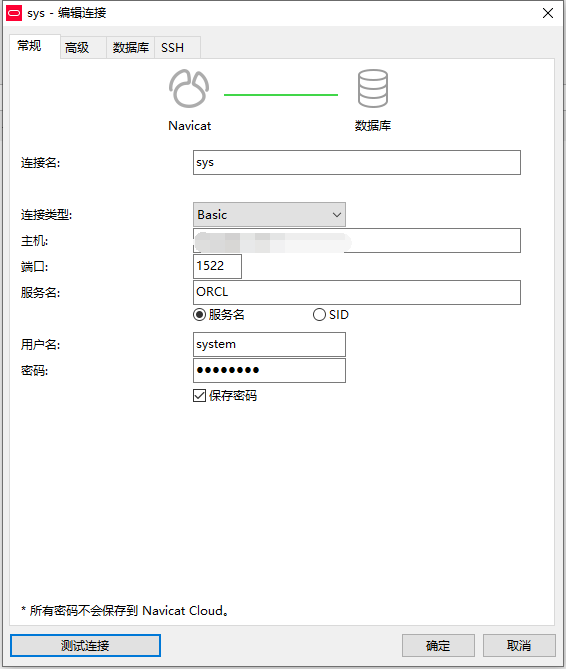

7，客户端连接刚新增的监控器 listener1
打开PLSQL Developer 13 (32 bit)

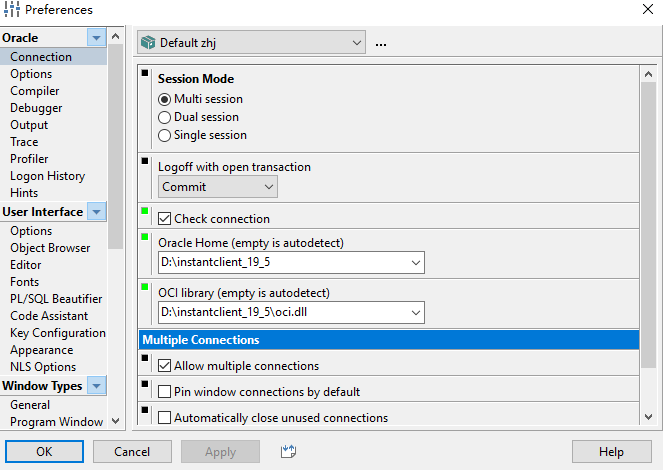

设置客户端文件

8 设置 listener.ora
tnsname.ora

在这里插入图片描述

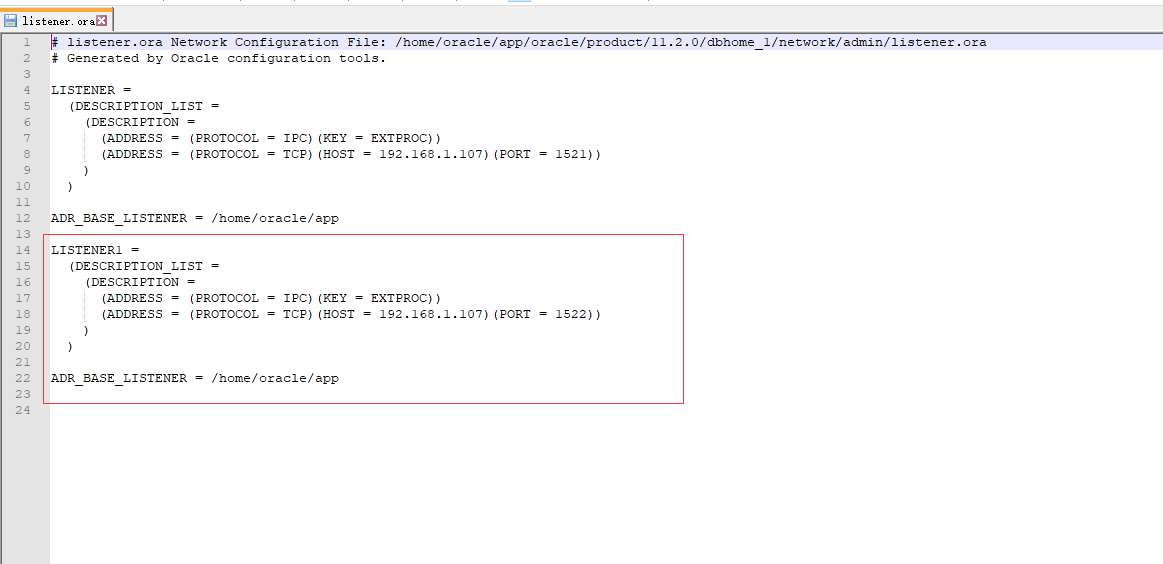

新增的监控器listener1配置如下

listener.ora Network Configuration File: /home/oracle/app/oracle/product/11.2.0/dbhome_1/network/admin/listener.ora

Generated by Oracle configuration tools.

LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC))
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.1.107)(PORT = 1521))
)
)

ADR_BASE_LISTENER = /home/oracle/app

LISTENER1 =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC))
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.1.107)(PORT = 1522))
)
)

ADR_BASE_LISTENER = /home/oracle/app
在这里插入图片描述
tnsnames.ora

tnsnames.ora Network Configuration File: /home/oracle/app/oracle/product/11.2.0/dbhome_1/network/admin/tnsnames.ora

Generated by Oracle configuration tools.

ORCL =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.1.107)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)

MYORCL =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.1.107)(PORT = 1522))
(CONNECT_DATA =
(SERVER = POOLED)
(SERVICE_NAME = orcl)
)
)

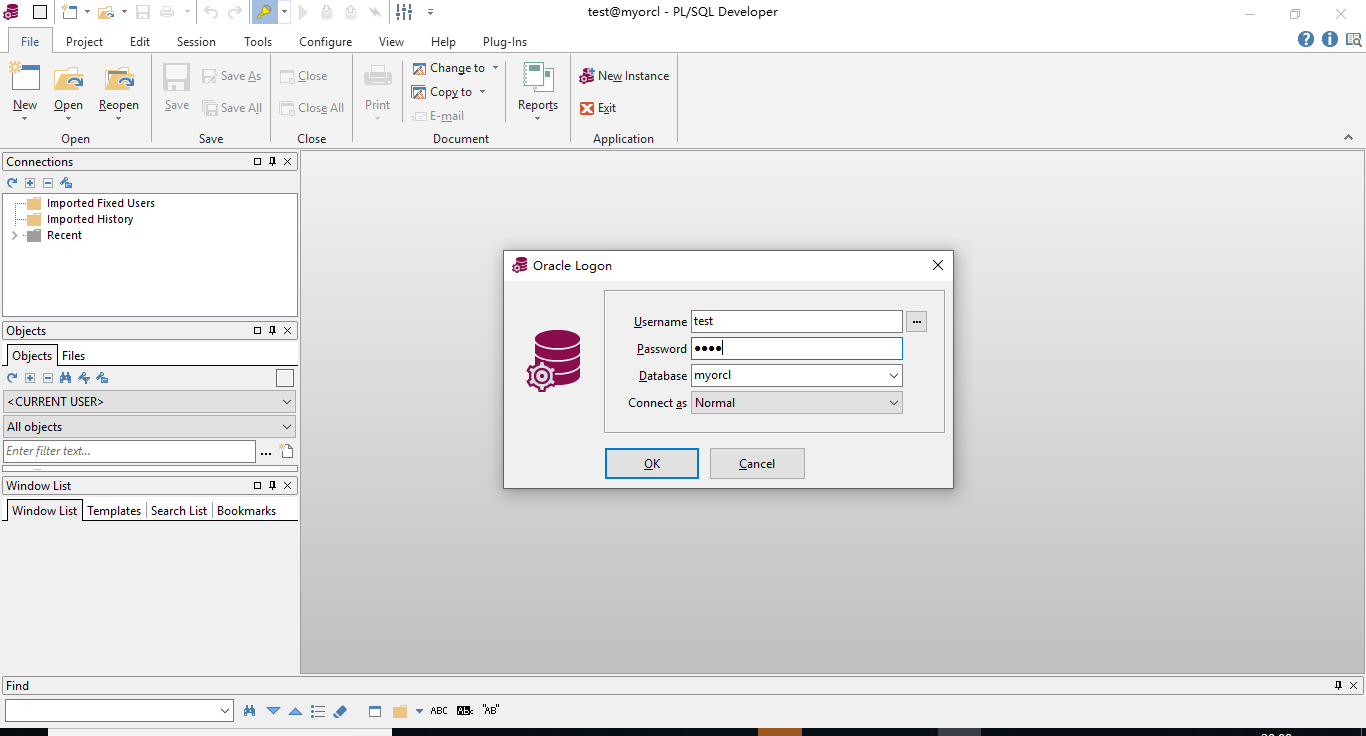

9登录PLSQL Developer 13
在这里插入图片描述
