1 通过Brocade交换机自带U盘升级
1.1准备微码
将交换机微码解压缩后放到U盘的firmware目录下，注意firmware目录下只能包含一层目录，例如：brocade/firmware/v6.4.2b。
1.2用单网线通过IE升级

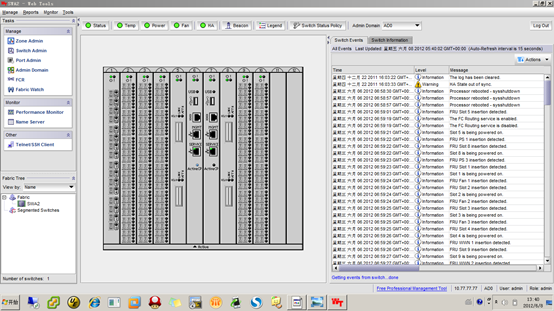

`将微码复制到U盘的firmware路径下，并且将U盘插到active的CP上。用一根网线连接DCX的active CP板，在IE中输入DCX的IP地址。

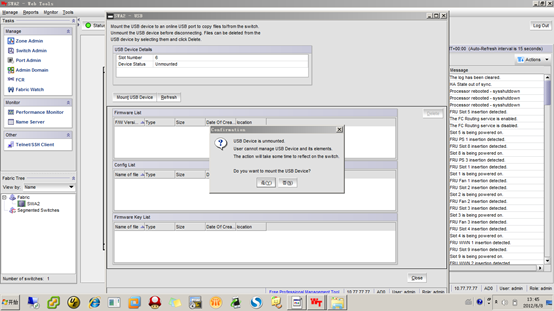

点击CP板上USB接口，mount USB设备

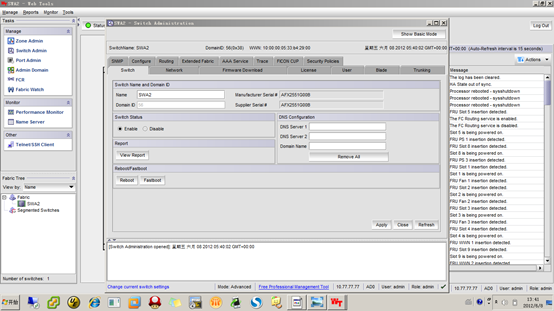

点击firmware download，选择微码文件进行升级。
升级过程DCX自动完成两个CP的切换。
3通过console升级
通过console口连接DCX的active CP。将微码保存到U盘，插在active CP的USB口。打开命令行。
用户名：admin 密码：password
swd77 login: admin
Password:
-----------------------------------------------------------------
Please change passwords for switch default accounts now.
Use Control-C to exit or press 'Enter' key to proceed.
Password was not changed. Will prompt again at next login
until password is changed.
swd77:admin> usbstorage -e
Trying to enable USB device. Please wait...
USB storage enabled
swd77:admin> firmwaredownload
Download from USB [No]: yes
Firmware filename: ./
Server IP: 127.1.1.8, Protocol IPv4
Checking system settings for firmwaredownload...
Failed to access usb://127.1.1.8//usb/usbstorage/brocade/firmware/.//release.plist
Cannot access the firmware on USB device. Please check the firmware path.
swd77:admin> firmwaredownload
Download from USB [No]: y
Firmware filename: ./release.plist
Server IP: 127.1.1.8, Protocol IPv4
Checking system settings for firmwaredownload...
Failed to access usb://127.1.1.8//usb/usbstorage/brocade/firmware/./release.plist
Cannot access the firmware on USB device. Please check the firmware path.
swd77:admin> usbstorage -l
firmware\ 900MB 2009 May 20 13:05
v6.4.2b\ 900MB 2012 Jun 07 14:39
config\ 0B 2009 May 20 13:05
support\ 0B 2009 May 20 13:05
firmwarekey\ 0B 2009 May 20 13:05
Available space on usbstorage 51%
swd77:admin> firmwaredownload
Download from USB [No]: y
Firmware filename: v6.4.2b
Server IP: 127.1.1.8, Protocol IPv4
Checking system settings for firmwaredownload...
System settings check passed.
This command will upgrade the firmware on both CP blades. If you want to
upgrade firmware on a single CP only, please use -s option.
You may run firmwaredownloadstatus to get the status of this
command.
This command will cause a warm/non-disruptive boot on the active CP,
but will require that existing telnet, secure telnet or SSH sessions
be restarted.
Do you want to continue (Y/N) [Y]: y
Firmware is being downloaded to standby CP. This step may take up to 30 minutes.
Firmware is being downloaded to Standby CP. Please wait...
Completed download of 114/114 packages (100%). Please wait...
Firmware has been downloaded successfully to Standby CP.it...
Standby CP is going to reboot with new firmware.
Standby CP booted successfully with new firmware.
执行完上述过程后，交换机自动升级。
2 通过console升级
2.1准备升级
hashow 检验HA是否同步
ipaddrshow 检查两个CP板的IP
firmwareshow 检查两个CP板的微码版本
准备FTP server，将firmware保存到相应的目录下。
2.2升级Standby CP的firmware
"firmwaredownload -s"选择FTP服务器下的firmware进行升级，当standby CP升级完成后"firmwareshow"检验微码是否正确，如果正确"reboot"。
2.3切换Standby CP
"hafailover"切换standby CP
2.4 升级Standby CP的firmware
当原来Active CP切换为standby CP后，按照2.1升级现在的Standby CP。
2.5在Standby CP上执行commit
在现在Standby CP上执行"firmwarecommit"后，执行"firmwareshow"检验微码版本是否正确
2.6在Active CP上执行commit
在现在Active CP上执行"firmwarecommit"后，执行"firmwareshow"检查两个CP板微码是否一致并且符合要求。执行"hashow"检查HA是否同步。
