springboot图片验证码

前言:

大家好！我是小小！今天我们用五分钟来用springboot实现我们常用的图形验证码功能模块！

用户登录几乎是一个线上系统必不可少且使用相对比较频繁的一个模块，为了防止恶意暴力尝试，防止洪水攻击、防止脚本自动提交等，验证码是一个较为便捷且行之有效的预防手段。

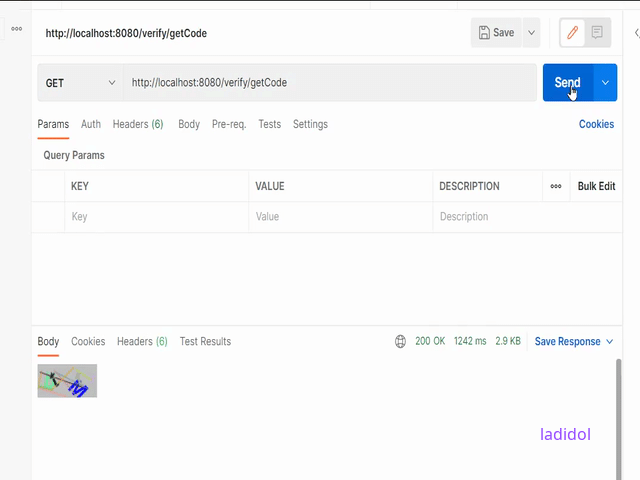

具体效果如下:

请添加图片描述

第一步：工具类

该工具类为生成验证码图片的核心，直接拷贝到项目即可，无需做修改；可个性化的参数全部对外提供的API，比如 字体大小，背景颜色,干扰线数量，高宽等都可以根据自己的需求设置对应参数；

代码几乎每一行都加了详细的注释；如果遇上特殊的个性化需求，调整一下这个工具类即可实现。

package com.feng.util;/*** @return null* @author Ladidol* @description* @date 2022/4/11 22:15*/import java.awt.*;
import java.awt.geom.AffineTransform;
import java.awt.image.BufferedImage;
import java.util.Random;/*** 图形验证码生成*/
public class VerifyUtil {// 默认验证码字符集private static final char[] chars = {'0', '1', '2', '3', '4', '5', '6', '7', '8', '9','a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't', 'u', 'v', 'w', 'x', 'y', 'z','A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z'};// 默认字符数量private final Integer SIZE;// 默认干扰线数量private final int LINES;// 默认宽度private final int WIDTH;// 默认高度private final int HEIGHT;// 默认字体大小private final int FONT_SIZE;// 默认字体倾斜private final boolean TILT;private final Color BACKGROUND_COLOR;/*** 初始化基础参数** @param builder*/private VerifyUtil(Builder builder) {SIZE = builder.size;LINES = builder.lines;WIDTH = builder.width;HEIGHT = builder.height;FONT_SIZE = builder.fontSize;TILT = builder.tilt;BACKGROUND_COLOR = builder.backgroundColor;}/*** 实例化构造器对象** @return*/public static Builder newBuilder() {return new Builder();}/*** @return 生成随机验证码及图片* Object[0]：验证码字符串；* Object[1]：验证码图片。*/public Object[] createImage() {StringBuffer sb = new StringBuffer();// 创建空白图片BufferedImage image = new BufferedImage(WIDTH, HEIGHT, BufferedImage.TYPE_INT_RGB);// 获取图片画笔Graphics2D graphic = image.createGraphics();// 设置抗锯齿graphic.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);// 设置画笔颜色graphic.setColor(BACKGROUND_COLOR);// 绘制矩形背景graphic.fillRect(0, 0, WIDTH, HEIGHT);// 画随机字符Random ran = new Random();//graphic.setBackground(Color.WHITE);// 计算每个字符占的宽度，这里预留一个字符的位置用于左右边距int codeWidth = WIDTH / (SIZE + 1);// 字符所处的y轴的坐标int y = HEIGHT * 3 / 4;for (int i = 0; i < SIZE; i++) {// 设置随机颜色graphic.setColor(getRandomColor());// 初始化字体Font font = new Font(null, Font.BOLD + Font.ITALIC, FONT_SIZE);if (TILT) {// 随机一个倾斜的角度 -45到45度之间int theta = ran.nextInt(45);// 随机一个倾斜方向 左或者右theta = (ran.nextBoolean() == true) ? theta : -theta;AffineTransform affineTransform = new AffineTransform();affineTransform.rotate(Math.toRadians(theta), 0, 0);font = font.deriveFont(affineTransform);}// 设置字体大小graphic.setFont(font);// 计算当前字符绘制的X轴坐标int x = (i * codeWidth) + (codeWidth / 2);// 取随机字符索引int n = ran.nextInt(chars.length);// 得到字符文本String code = String.valueOf(chars[n]);// 画字符graphic.drawString(code, x, y);// 记录字符sb.append(code);}// 画干扰线for (int i = 0; i < LINES; i++) {// 设置随机颜色graphic.setColor(getRandomColor());// 随机画线graphic.drawLine(ran.nextInt(WIDTH), ran.nextInt(HEIGHT), ran.nextInt(WIDTH), ran.nextInt(HEIGHT));}// 返回验证码和图片return new Object[]{sb.toString(), image};}/*** 随机取色*/private Color getRandomColor() {Random ran = new Random();Color color = new Color(ran.nextInt(256), ran.nextInt(256), ran.nextInt(256));return color;}/*** 构造器对象*/public static class Builder {// 默认字符数量private int size = 4;// 默认干扰线数量private int lines = 10;// 默认宽度private int width = 80;// 默认高度private int height = 35;// 默认字体大小private int fontSize = 25;// 默认字体倾斜private boolean tilt = true;//背景颜色private Color backgroundColor = Color.LIGHT_GRAY;public Builder setSize(int size) {this.size = size;return this;}public Builder setLines(int lines) {this.lines = lines;return this;}public Builder setWidth(int width) {this.width = width;return this;}public Builder setHeight(int height) {this.height = height;return this;}public Builder setFontSize(int fontSize) {this.fontSize = fontSize;return this;}public Builder setTilt(boolean tilt) {this.tilt = tilt;return this;}public Builder setBackgroundColor(Color backgroundColor) {this.backgroundColor = backgroundColor;return this;}public VerifyUtil build() {return new VerifyUtil(this);}}
}

第二步：图片生成:

使用默认参数:

//生成图片验证码
Object[] verify = VerifyUtil.newBuilder().build().createImage();

自定义参数生成:

// 这个根据自己的需要设置对应的参数来实现个性化
// 返回的数组第一个参数是生成的验证码，第二个参数是生成的图片
Object[] objs = VerifyUtil.newBuilder().setWidth(120)   //设置图片的宽度.setHeight(35)   //设置图片的高度.setSize(6)      //设置字符的个数.setLines(10)    //设置干扰线的条数.setFontSize(25) //设置字体的大小.setTilt(true)   //设置是否需要倾斜.setBackgroundColor(Color.WHITE) //设置验证码的背景颜色.build()         //构建VerifyUtil项目.createImage();  //生成图片

整合到springboot项目中:

需要引入的maven依赖:

        <!--redis相关配置--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId></dependency><!-- redis 连接池 --><!--新版本连接池lettuce--><dependency><groupId>org.apache.commons</groupId><artifactId>commons-pool2</artifactId></dependency><!-- 图形验证码 --><dependency><groupId>net.jodah</groupId><artifactId>expiringmap</artifactId><version>0.5.10</version></dependency>

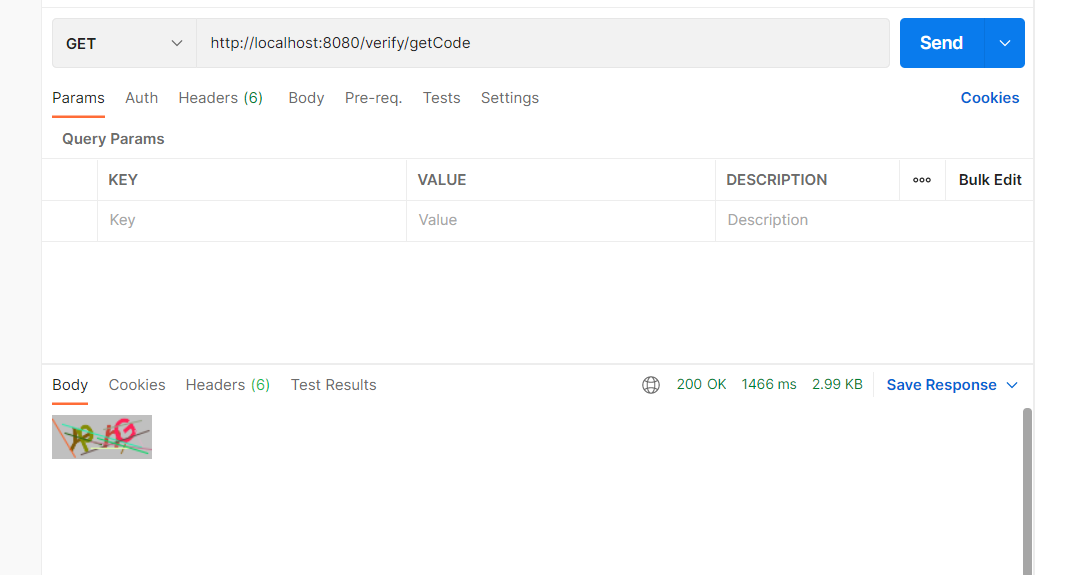

获取相关的验证码:

service层:

package com.feng.service;import org.cuit.epoch.result.Result;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;/*** @return null* @author Ladidol* @description* @date 2022/4/11 22:15*/public interface VerifyService {/*** 创建图片验证码* @param response* @param request* @throws IOException*/void createCode(HttpServletResponse response, HttpServletRequest request) throws IOException;/*** 检查图片验证码* @param* @param* @throws IOException*/Result<String> checkCode(String verificationCode);
}

serviceimpl层:

package com.feng.service.impl;import com.feng.service.VerifyService;
import com.feng.util.RedisServiceImpl;
import com.google.common.net.HttpHeaders;import com.feng.util.VerifyUtil;
import org.springframework.http.ResponseCookie;
import org.springframework.stereotype.Service;import javax.annotation.Resource;
import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.io.OutputStream;
import java.time.Duration;/*** @return null* @author Ladidol* @description* @date 2022/4/11 22:15*/@Service
public class VerifyServiceImpl implements VerifyService {@ResourceRedisServiceImpl redisUtil;/*** 生成图片验证码* @param response* @param request* @throws IOException*/@Overridepublic void createCode(HttpServletResponse response, HttpServletRequest request) throws IOException {//获取sessionHttpSession session = request.getSession();//获得sessionIdString id = session.getId();System.out.println();ResponseCookie cookie = ResponseCookie.from("JSESSIONID",id).secure(true).domain("").path("/").maxAge(Duration.ofHours(1)).sameSite("None").build();//清除之前缓存的图片验证码if (!String.valueOf(request.getSession().getAttribute("SESSION_VERIFY_CODE_"+id)).isEmpty()){String getVerify = String.valueOf(request.getSession().getAttribute("SESSION_VERIFY_CODE_"+id));redisUtil.del(getVerify);System.out.println("清除成功");}//生成图片验证码,用的默认参数Object[] verify = VerifyUtil.newBuilder().build().createImage();//将验证码存入sessionsession.setAttribute("SESSION_VERIFY_CODE_" + id, verify[0]);//打印验证码System.out.println(verify[0]);//将验证码存入redisredisUtil.set((String) verify[0],id,5*60);//将图片传给浏览器BufferedImage image = (BufferedImage) verify[1];response.setContentType("image/png");response.setHeader(HttpHeaders.SET_COOKIE,cookie.toString());OutputStream ops = response.getOutputStream();ImageIO.write(image,"png",ops);}@Overridepublic Result<String> checkCode(String verificationCode){if (!redisUtil.hasKey(verificationCode)){return new Result<>(false,"验证码错误");}redisUtil.del(verificationCode);return R.success();}
}

这里面还会用到redis相关的工具类,我就不列出来了,想要的话可以看我以前的博客工具类戳这里

controller层:
这里有用到@RequiredArgsConstructor, 就是简单的注入而已, 如果想要详细了解戳这里


package com.feng.controller;import lombok.RequiredArgsConstructor;
import com.feng.annotation.LimitRequest;import com.feng.service.VerifyService;
import org.springframework.web.bind.annotation.*;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;/*** @return null* @author Ladidol* @description 这里主要就是多种验证码和登录相关的东西* @date 2022/4/11 21:46*/
@RestController
@RequestMapping("/verify")
@RequiredArgsConstructor//这是在lombok工具给的注入方式,真帅
public class VerifyController {private final VerifyService verifyService;/*** 获取图片验证码*/@LimitRequest(count = 5)//这个注解就是表示, 你在限制时间里(我们这里默认是六秒钟), 只能请求五次@GetMapping("/getCode")public void getCode(HttpServletResponse response, HttpServletRequest request) throws IOException {verifyService.createCode(response, request);}@LimitRequest(count = 5)//这个注解就是表示, 你在限制时间里(我们这里默认是六秒钟), 只能请求五次@GetMapping("/checkCode")public Result<String> checkCode(String code){return verifyService.checkCode(code);}}

这里为了不被一直无限制的访问该服务, 我们用了一个限制ip访问次数的注解@LimitRequest

annotion包下的注解类:

package com.feng.annotation;import java.lang.annotation.*;/*** @return null* @author Ladidol* @description 限制ip访问次数注解* @date 2022/4/11 22:15*/@Documented
@Target(ElementType.METHOD) // 说明该注解只能放在方法上面
@Retention(RetentionPolicy.RUNTIME)
public @interface LimitRequest {long time() default 6000; // 限制时间 单位：毫秒int count() default 3; // 允许请求的次数}

aspect包下的切面类:

package com.feng.aspect;import net.jodah.expiringmap.ExpirationPolicy;
import net.jodah.expiringmap.ExpiringMap;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import com.feng.annotation.LimitRequest;
import org.cuit.epoch.exception.AppException;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;import javax.servlet.http.HttpServletRequest;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.TimeUnit;/*** @return null* @author Ladidol* @description* @date 2022/4/11 22:15*/@Aspect
@Component
public class LimitRequestAspect {private static ConcurrentHashMap<String, ExpiringMap<String, Integer>> book = new ConcurrentHashMap<>();// 定义切点// 让所有有@LimitRequest注解的方法都执行切面方法@Pointcut("@annotation(limitRequest)")public void excudeService(LimitRequest limitRequest) {}@Around("excudeService(limitRequest)")public Object doAround(ProceedingJoinPoint pjp, LimitRequest limitRequest) throws Throwable {// 获得request对象RequestAttributes ra = RequestContextHolder.getRequestAttributes();ServletRequestAttributes sra = (ServletRequestAttributes) ra;HttpServletRequest request = sra.getRequest();// 获取Map对象， 如果没有则返回默认值// 第一个参数是key， 第二个参数是默认值ExpiringMap<String, Integer> uc = book.getOrDefault(request.getRequestURI(), ExpiringMap.builder().variableExpiration().build());Integer uCount = uc.getOrDefault(request.getRemoteAddr(), 0);if (uCount >= limitRequest.count()) { // 超过次数，不执行目标方法System.out.println("接口请求超过次数!");throw new AppException("接口请求超过次数!");} else if (uCount == 0) { // 第一次请求时，设置有效时间
//uc.put(request.getRemoteAddr(), uCount + 1, ExpirationPolicy.CREATED, limitRequest.time(), TimeUnit.MILLISECONDS);} else { // 未超过次数， 记录加一uc.put(request.getRemoteAddr(), uCount + 1);}book.put(request.getRequestURI(), uc);// result的值就是被拦截方法的返回值Object result = pjp.proceed();return result;}
}

为了捕获全局的异常抛出, 且符合restful规范我们加一个这个处理类:

handle包下面的全局异常类:

package org.cuit.epoch.handler;import lombok.extern.log4j.Log4j2;import org.cuit.epoch.exception.AppException;
import org.cuit.epoch.result.R;
import org.cuit.epoch.result.Result;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;@ControllerAdvice
@Log4j2
public class GlobalExceptionHandler {@ExceptionHandler(Exception.class)@ResponseBodypublic Result error(Exception e) {log.error(e.getMessage());e.printStackTrace();return R.fail(e.getMessage());}@ExceptionHandler(AppException.class)@ResponseBodypublic Result error(AppException e) {log.error(e.getMessage());e.printStackTrace();return R.fail(e.getMessage());}
}

application.yaml文件:

spring:cache:type:redisredis: #redis连接配置host: 自己redis的ip地址port: redis端口password: 密码jedis:pool:max-active: 8max-wait: -1msmax-idle: 500min-idle: 0lettuce:shutdown-timeout: 0ms
