LSTM（RNN）中的注意力机制

一、示例代码

目的是让网络“注意”到 index=2 的特征

"""
参考：
https://blog.csdn.net/weixin_44791964/article/details/104000722?spm=1001.2014.3001.5501
"""import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from keras.layers import merge
from keras.layers.core import *
from keras.layers.recurrent import LSTM
from keras.models import *'''
获得数据集、attention_column代表我们希望被注意的列
这个数据集是我们人为创建的，目的是为了演示注意力机制，示例如下：
X = [[-21.03816538   1.4249185 ][  3.76040424 -12.83660875][  1.           1.        ][-10.17242648   5.37333323][  2.97058584  -9.31965078][  3.69295417   8.47650258][ -6.91492102  11.00583167][ -0.03511656  -1.71475966][ 10.9554255   12.47562052][ -5.70470182   4.70055424]]
Y = [1]
我们可以看到，当我们将attention_column设置为2的时候
第2个step的输入和当前batch的输出相同，其它step的值是随机设定的
因此网络应该需要去注意第2个step的输入，这就是我们希望他注意的情况。
'''def get_data_recurrent(n, time_steps, input_dim, attention_column=2):x = np.random.normal(loc=0, scale=10, size=(n, time_steps, input_dim))y = np.random.randint(low=0, high=2, size=(n, 1))x[:, attention_column, :] = np.tile(y[:], (1, input_dim))return x, y# -------------------------------------------#
#   对每一个step的注意力权值
# -------------------------------------------#
def get_activations(model, inputs, layer_name=None):inp = model.inputfor layer in model.layers:if layer.name == layer_name:Y = layer.outputmodel = Model(inp, Y)out = model.predict(inputs)out = np.mean(out[0], axis=-1)return out# ------------------------------------------------------------------------------------------------------#
#   注意力模块，主要是实现对step维度的注意力机制
#   在这里大家可能会疑惑，为什么需要先Permute再进行注意力机制的施加。
#   这是因为，如果我们直接进行全连接的话，我们的最后一维是特征维度，这个时候，我们每个step的特征是分开的，
#   此时进行全连接的话，得出来注意力权值每一个step之间是不存在特征交换的，自然也就不准确了。
#   所以在这里我们需要首先将step维度转到最后一维，然后再进行全连接，根据每一个step的特征获得注意力机制的权值。
# ------------------------------------------------------------------------------------------------------#
def attention_3d_block(inputs):# batch_size, time_steps, lstm_units -> batch_size, lstm_units, time_stepsa = Permute((2, 1))(inputs)# batch_size, lstm_units, time_steps -> batch_size, lstm_units, time_stepsa = Dense(TIME_STEPS, activation='softmax')(a)# batch_size, lstm_units, time_steps -> batch_size, time_steps, lstm_unitsa_probs = Permute((2, 1), name='attention_vec')(a)# 相当于获得每一个step中，每个特征的权重output_attention_mul = merge.multiply([inputs, a_probs], name='attention_mul') # 新版本 keras# output_attention_mul = merge([inputs, a_probs], name='attention_mul', mode='mul') # 旧版本 kerasreturn output_attention_mul# -------------------------------------------#
#  建立注意力模型
# -------------------------------------------#
def get_attention_model(time_steps, input_dim, lstm_units=32):inputs = Input(shape=(time_steps, input_dim,))# (batch_size, time_steps, input_dim) -> (batch_size, input_dim, lstm_units)lstm_out = LSTM(lstm_units, return_sequences=True)(inputs)attention_mul = attention_3d_block(lstm_out)# (batch_size, input_dim, lstm_units) -> (batch_size, input_dim*lstm_units)attention_mul = Flatten()(attention_mul)output = Dense(1, activation='sigmoid')(attention_mul)model = Model(input=[inputs], output=output)return modelif __name__ == '__main__':N = 100000INPUT_DIM = 2TIME_STEPS = 10# ------------------------------------------------------##   每一个输入样本的step为10，每一个step的数据长度为2#   X - batch, 10, 2#   Y - batch, 1# ------------------------------------------------------#X, Y = get_data_recurrent(N, TIME_STEPS, INPUT_DIM)# ------------------------------------------------------##   获得模型并进行训练。# ------------------------------------------------------#model = get_attention_model(TIME_STEPS, INPUT_DIM)model.summary()model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])model.fit(X, Y, epochs=1, batch_size=64, validation_split=0.1)attention_vectors = []# ------------------------------------------------------##   取三百个样本，将他们通道的平均注意力情况取出来# ------------------------------------------------------#for i in range(300):testing_X, testing_Y = get_data_recurrent(1, TIME_STEPS, INPUT_DIM)attention_vector = get_activations(model, testing_X, layer_name='attention_vec')print('attention =', attention_vector)assert (np.sum(attention_vector) - 1.0) < 1e-5attention_vectors.append(attention_vector)attention_vector_final = np.mean(np.array(attention_vectors), axis=0)# ------------------------------------------------------##   将结果绘制成图# ------------------------------------------------------#pd.DataFrame(attention_vector_final, columns=['attention (%)']).plot(kind='bar',title='Attention Mechanism as a function of input dimensions.')plt.show()

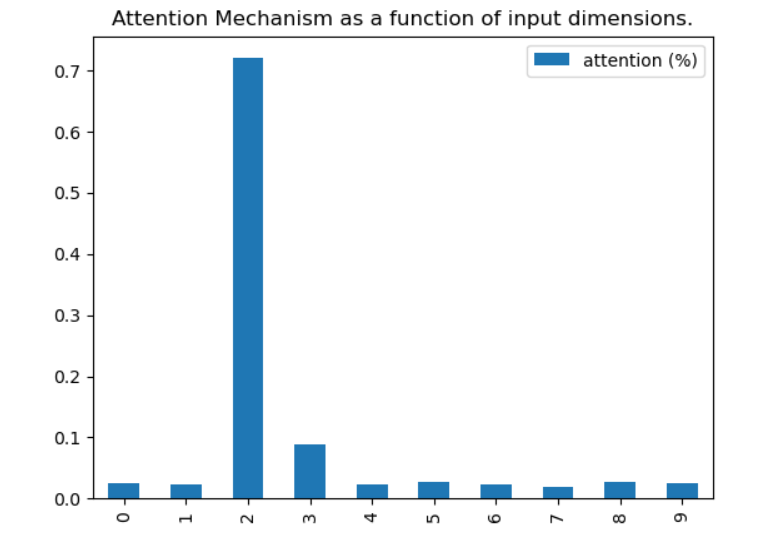

在这里插入图片描述

二、另一种Attention

参考：github philipperemy/keras-attention-mechanism

在这里插入图片描述

1. attention.py

from tensorflow.keras.layers import Dense, Lambda, Dot, Activation, Concatenate
from tensorflow.keras.layers import Layerclass Attention(Layer):def __init__(self, units=128, **kwargs):self.units = unitssuper().__init__(**kwargs)def __call__(self, inputs):"""Many-to-one attention mechanism for Keras.@param inputs: 3D tensor with shape (batch_size, time_steps, input_dim).@return: 2D tensor with shape (batch_size, 128)@author: felixhao28, philipperemy."""hidden_states = inputshidden_size = int(hidden_states.shape[2])# Inside dense layer#              hidden_states            dot               W            =>           score_first_part# (batch_size, time_steps, hidden_size) dot (hidden_size, hidden_size) => (batch_size, time_steps, hidden_size)# W is the trainable weight matrix of attention Luong's multiplicative style scorescore_first_part = Dense(hidden_size, use_bias=False, name='attention_score_vec')(hidden_states)#            score_first_part           dot        last_hidden_state     => attention_weights# (batch_size, time_steps, hidden_size) dot   (batch_size, hidden_size)  => (batch_size, time_steps)h_t = Lambda(lambda x: x[:, -1, :], output_shape=(hidden_size,), name='last_hidden_state')(hidden_states)score = Dot(axes=[1, 2], name='attention_score')([h_t, score_first_part])attention_weights = Activation('softmax', name='attention_weight')(score)# (batch_size, time_steps, hidden_size) dot (batch_size, time_steps) => (batch_size, hidden_size)context_vector = Dot(axes=[1, 1], name='context_vector')([hidden_states, attention_weights])pre_activation = Concatenate(name='attention_output')([context_vector, h_t])attention_vector = Dense(self.units, use_bias=False, activation='tanh', name='attention_vector')(pre_activation)return attention_vectordef get_config(self):return {'units': self.units}@classmethoddef from_config(cls, config):return cls(**config)

2. main.py

import numpy as np
from tensorflow.keras import Input
from tensorflow.keras.layers import Dense, LSTM
from tensorflow.keras.models import load_model, Modelfrom attention import Attentiondef main():# Dummy data. There is nothing to learn in this example.num_samples, time_steps, input_dim, output_dim = 100, 10, 1, 1data_x = np.random.uniform(size=(num_samples, time_steps, input_dim))data_y = np.random.uniform(size=(num_samples, output_dim))# Define/compile the model.model_input = Input(shape=(time_steps, input_dim))x = LSTM(64, return_sequences=True)(model_input)x = Attention(32)(x)x = Dense(1)(x)model = Model(model_input, x)model.compile(loss='mae', optimizer='adam')print(model.summary())# train.model.fit(data_x, data_y, epochs=10)# test save/reload model.pred1 = model.predict(data_x)model.save('test_model.h5')model_h5 = load_model('test_model.h5')pred2 = model_h5.predict(data_x)np.testing.assert_almost_equal(pred1, pred2)print('Success.')if __name__ == '__main__':main()
