使用码上登录中转微信扫码登录
使用之前最好有一个公网服务器，能够公网访问的 redis 和 mysql 数据库，并且能够部署公网访问的服务
码上登录是一个小程序，对个体开发者提供了免费的微信扫一扫登录入口：官网 http://login.vicy.cn/
针对微信扫码登录需要进行企业认证，个人开发者无法使用的问题，我们可以使用码上登录进行桥接，将微信扫码登录的信息转发给我们的程序
在开发之前，我们需要有一个能被公网访问的地址，用来接收码上登录回调给我们的用户数据
更多信息参考码上登录 Api 文档：http://login.vicy.cn/apiWord.html
使用步骤
进入码上登录官网创建我们的应用：http://login.vicy.cn/
-
微信扫码登录，进入首页，点击
马上创建应用
-

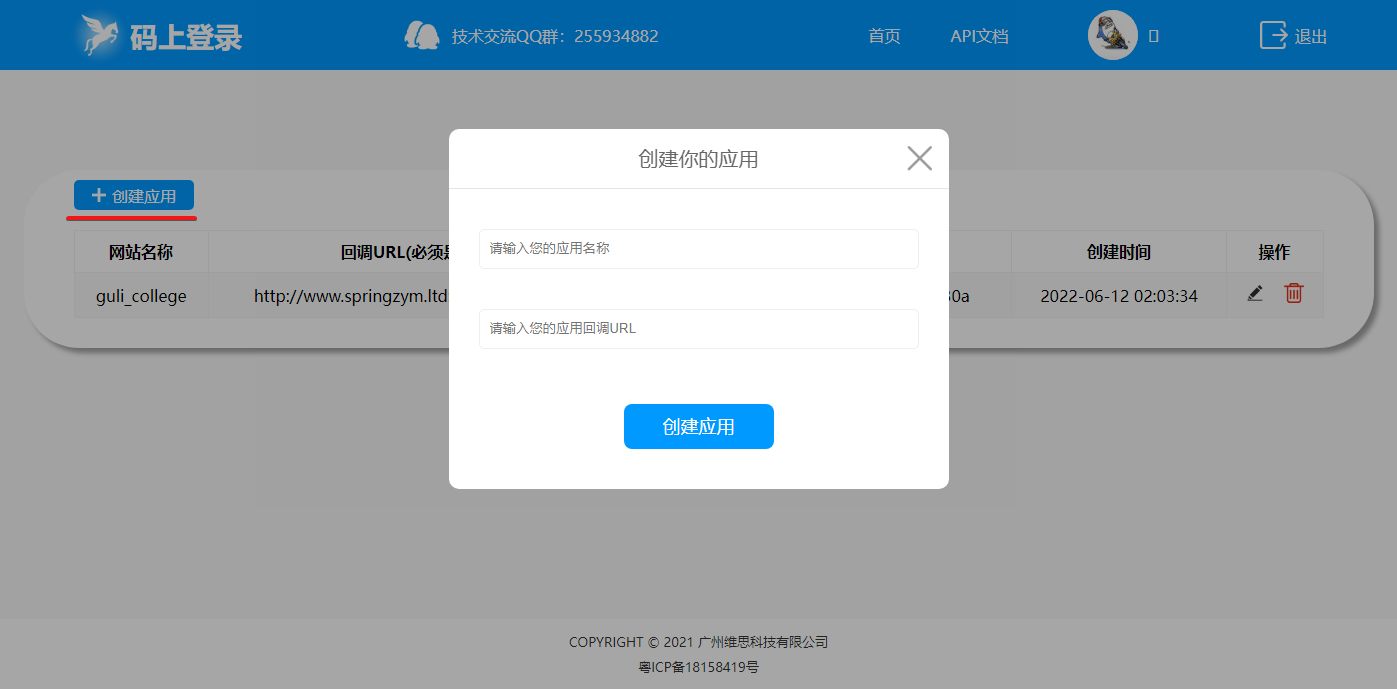

点击创建应用，输入网站名称和回调 URL ，填写完成后创建回得到
secretKey网站名称就是用户扫码后看到的你的网站名称
回调 URL 就是用户确认登录后，接收用户信息的
controller，可以先随便写，再后期修改
创建后台应用
-
先创建一个
web模块service-ucenter用于编写代码，需要整合mybatis和redis，我使用SpringBoot的web项目导入
commons和对应的数据库依赖，该依赖的作用是让我们发送HTTP请求，获取二维码信息<dependency><groupId>commons-io</groupId><artifactId>commons-io</artifactId> </dependency> <dependency><groupId>org.apache.commons</groupId><artifactId>commons-pool2</artifactId> </dependency> <dependency><groupId>org.apache.commons</groupId><artifactId>commons-lang3</artifactId> </dependency> <!--http相关依赖--> <dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId> </dependency> <dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpcore</artifactId> </dependency> <!-- redis --> <dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-redis</artifactId> </dependency> <!--mybatis-plus--> <dependency><groupId>com.baomidou</groupId><artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <!--mysql--> <dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId> </dependency>配置文件如下，拿去使用记得修改对应的数据库配置
server:port: 8085servlet:application-display-name: service-ucenter spring:datasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://IP:3306/guli_college?useUnicode=true&characterEncoding=utf8&useSSL=falseusername: rootpassword: root# 配置 druid 连接池type: com.alibaba.druid.pool.DruidDataSourceredis:host: IPport: 6379database: 0timeout: 1800000mvc:pathmatch:matching-strategy: ant_path_matcher# 开启rest风格hiddenmethod:filter:enabled: true -
编写
HttpClientUtils工具类，直接粘过去用package com.zym.utils;import org.apache.commons.io.IOUtils; import org.apache.commons.lang3.StringUtils; import org.apache.http.Consts; import org.apache.http.HttpEntity; import org.apache.http.HttpResponse; import org.apache.http.NameValuePair; import org.apache.http.client.HttpClient; import org.apache.http.client.config.RequestConfig; import org.apache.http.client.config.RequestConfig.Builder; import org.apache.http.client.entity.UrlEncodedFormEntity; import org.apache.http.client.methods.HttpGet; import org.apache.http.client.methods.HttpPost; import org.apache.http.conn.ConnectTimeoutException; import org.apache.http.conn.ssl.SSLConnectionSocketFactory; import org.apache.http.conn.ssl.SSLContextBuilder; import org.apache.http.conn.ssl.TrustStrategy; import org.apache.http.conn.ssl.X509HostnameVerifier; import org.apache.http.entity.ContentType; import org.apache.http.entity.StringEntity; import org.apache.http.impl.client.CloseableHttpClient; import org.apache.http.impl.client.HttpClients; import org.apache.http.impl.conn.PoolingHttpClientConnectionManager; import org.apache.http.message.BasicNameValuePair;import javax.net.ssl.SSLContext; import javax.net.ssl.SSLException; import javax.net.ssl.SSLSession; import javax.net.ssl.SSLSocket; import java.io.IOException; import java.net.SocketTimeoutException; import java.security.GeneralSecurityException; import java.security.cert.CertificateException; import java.security.cert.X509Certificate; import java.util.ArrayList; import java.util.List; import java.util.Map; import java.util.Map.Entry; import java.util.Set;/*** 依赖的jar包有：commons-lang-2.6.jar、httpclient-4.3.2.jar、httpcore-4.3.1.jar、commons-io-2.4.jar* @author zhaoyb**/ public class HttpClientUtils {public static final int connTimeout=10000;public static final int readTimeout=10000;public static final String charset="UTF-8";private static HttpClient client = null;static {PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();cm.setMaxTotal(128);cm.setDefaultMaxPerRoute(128);client = HttpClients.custom().setConnectionManager(cm).build();}public static String postParameters(String url, String parameterStr) throws ConnectTimeoutException, SocketTimeoutException, Exception{return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);}public static String postParameters(String url, String parameterStr,String charset, Integer connTimeout, Integer readTimeout) throws ConnectTimeoutException, SocketTimeoutException, Exception{return post(url,parameterStr,"application/x-www-form-urlencoded",charset,connTimeout,readTimeout);}public static String postParameters(String url, Map<String, String> params) throws ConnectTimeoutException,SocketTimeoutException, Exception {return postForm(url, params, null, connTimeout, readTimeout);}public static String postParameters(String url, Map<String, String> params, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,SocketTimeoutException, Exception {return postForm(url, params, null, connTimeout, readTimeout);}public static String get(String url) throws Exception {return get(url, charset, null, null);}public static String get(String url, String charset) throws Exception {return get(url, charset, connTimeout, readTimeout);}/*** 发送一个 Post 请求, 使用指定的字符集编码.** @param url* @param body RequestBody* @param mimeType 例如 application/xml "application/x-www-form-urlencoded" a=1&b=2&c=3* @param charset 编码* @param connTimeout 建立链接超时时间,毫秒.* @param readTimeout 响应超时时间,毫秒.* @return ResponseBody, 使用指定的字符集编码.* @throws ConnectTimeoutException 建立链接超时异常* @throws SocketTimeoutException 响应超时* @throws Exception*/public static String post(String url, String body, String mimeType,String charset, Integer connTimeout, Integer readTimeout)throws ConnectTimeoutException, SocketTimeoutException, Exception {HttpClient client = null;HttpPost post = new HttpPost(url);String result = "";try {if (StringUtils.isNotBlank(body)) {HttpEntity entity = new StringEntity(body, ContentType.create(mimeType, charset));post.setEntity(entity);}// 设置参数Builder customReqConf = RequestConfig.custom();if (connTimeout != null) {customReqConf.setConnectTimeout(connTimeout);}if (readTimeout != null) {customReqConf.setSocketTimeout(readTimeout);}post.setConfig(customReqConf.build());HttpResponse res;if (url.startsWith("https")) {// 执行 Https 请求.client = createSSLInsecureClient();res = client.execute(post);} else {// 执行 Http 请求.client = HttpClientUtils.client;res = client.execute(post);}result = IOUtils.toString(res.getEntity().getContent(), charset);} finally {post.releaseConnection();if (url.startsWith("https") && client != null&& client instanceof CloseableHttpClient) {((CloseableHttpClient) client).close();}}return result;}/*** 提交form表单** @param url* @param params* @param connTimeout* @param readTimeout* @return* @throws ConnectTimeoutException* @throws SocketTimeoutException* @throws Exception*/public static String postForm(String url, Map<String, String> params, Map<String, String> headers, Integer connTimeout,Integer readTimeout) throws ConnectTimeoutException,SocketTimeoutException, Exception {HttpClient client = null;HttpPost post = new HttpPost(url);try {if (params != null && !params.isEmpty()) {List<NameValuePair> formParams = new ArrayList<NameValuePair>();Set<Entry<String, String>> entrySet = params.entrySet();for (Entry<String, String> entry : entrySet) {formParams.add(new BasicNameValuePair(entry.getKey(), entry.getValue()));}UrlEncodedFormEntity entity = new UrlEncodedFormEntity(formParams, Consts.UTF_8);post.setEntity(entity);}if (headers != null && !headers.isEmpty()) {for (Entry<String, String> entry : headers.entrySet()) {post.addHeader(entry.getKey(), entry.getValue());}}// 设置参数Builder customReqConf = RequestConfig.custom();if (connTimeout != null) {customReqConf.setConnectTimeout(connTimeout);}if (readTimeout != null) {customReqConf.setSocketTimeout(readTimeout);}post.setConfig(customReqConf.build());HttpResponse res = null;if (url.startsWith("https")) {// 执行 Https 请求.client = createSSLInsecureClient();res = client.execute(post);} else {// 执行 Http 请求.client = HttpClientUtils.client;res = client.execute(post);}return IOUtils.toString(res.getEntity().getContent(), "UTF-8");} finally {post.releaseConnection();if (url.startsWith("https") && client != null&& client instanceof CloseableHttpClient) {((CloseableHttpClient) client).close();}}}/*** 发送一个 GET 请求** @param url* @param charset* @param connTimeout 建立链接超时时间,毫秒.* @param readTimeout 响应超时时间,毫秒.* @return* @throws ConnectTimeoutException 建立链接超时* @throws SocketTimeoutException 响应超时* @throws Exception*/public static String get(String url, String charset, Integer connTimeout,Integer readTimeout)throws ConnectTimeoutException,SocketTimeoutException, Exception {HttpClient client = null;HttpGet get = new HttpGet(url);String result = "";try {// 设置参数Builder customReqConf = RequestConfig.custom();if (connTimeout != null) {customReqConf.setConnectTimeout(connTimeout);}if (readTimeout != null) {customReqConf.setSocketTimeout(readTimeout);}get.setConfig(customReqConf.build());HttpResponse res = null;if (url.startsWith("https")) {// 执行 Https 请求.client = createSSLInsecureClient();res = client.execute(get);} else {// 执行 Http 请求.client = HttpClientUtils.client;res = client.execute(get);}result = IOUtils.toString(res.getEntity().getContent(), charset);} finally {get.releaseConnection();if (url.startsWith("https") && client != null && client instanceof CloseableHttpClient) {((CloseableHttpClient) client).close();}}return result;}/*** 从 response 里获取 charset** @param ressponse* @return*/@SuppressWarnings("unused")private static String getCharsetFromResponse(HttpResponse ressponse) {// Content-Type:text/html; charset=GBKif (ressponse.getEntity() != null && ressponse.getEntity().getContentType() != null && ressponse.getEntity().getContentType().getValue() != null) {String contentType = ressponse.getEntity().getContentType().getValue();if (contentType.contains("charset=")) {return contentType.substring(contentType.indexOf("charset=") + 8);}}return null;}/*** 创建 SSL连接* @return* @throws GeneralSecurityException*/private static CloseableHttpClient createSSLInsecureClient() throws GeneralSecurityException {try {SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, new TrustStrategy() {@Overridepublic boolean isTrusted(X509Certificate[] chain, String authType) throws CertificateException {return true;}}).build();SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory(sslContext, new X509HostnameVerifier() {@Overridepublic boolean verify(String arg0, SSLSession arg1) {return true;}@Overridepublic void verify(String host, SSLSocket ssl)throws IOException {}@Overridepublic void verify(String host, X509Certificate cert)throws SSLException {}@Overridepublic void verify(String host, String[] cns,String[] subjectAlts) throws SSLException {}});return HttpClients.custom().setSSLSocketFactory(sslsf).build();} catch (GeneralSecurityException e) {throw e;}} } -
编写
controller和service代码，处理前端操作，获取二维码信息Controller代码/*** 微信扫码登录* @author zym*/ @RestController @CrossOrigin @RequestMapping("/wx") public class WxLogin {@Resourceprivate MemberService memberServiceImpl;@Resourceprivate RedisTemplate redisTemplate;/*** 向码上登录服务器请求二维码信息* @return*/@GetMapping("/login")public String login(HttpSession session) throws GuLiError {return memberServiceImpl.getQrCode();} }编写
Service代码，通过HttpClentUtils发送HTTP请求，得到用户扫码登录的二维码信息请求地址为:
https://server01.vicy.cn/8lXdSX7FSMykbl9nFDWESdc6zfouSAEz/wxlogin/wxLogin/tempUserId?secretKey=你的secretKey将
secretKey更改为自己刚刚在码上登录创建应用得到的secretKey返回值
codeUrl里面存放了二维码信息，具体参数如下：{"errcode":0,"data":{"qrCodeReturnUrl":"http://login.vicy.cn?tempUserId=18d55e78f66848e781bc7ce65a1fe5b4", "tempUserId":"18d55e78f66848e781bc7ce65a1fe5b4"},"message":"成功"}属性 类型 说明 qrCodeReturnUrl string 把qrCodeReturnUrl发送给前端生成二维码 tempUserId string 该次登录会话的凭证，一个二维码的 tempUserId 在回调的时候会传递给后端 /*** @author zym*/ @Service public class MemberServiceImpl extends ServiceImpl<MemberMapper, Member> implements MemberService {@Resourceprivate RedisTemplate redisTemplate;/*** 通过码上登录获取二维码信息* @return*/@Overridepublic String getQrCode() {String codeUrl = null;try {codeUrl = HttpClientUtils.get("https://server01.vicy.cn/8lXdSX7FSMykbl9nFDWESdc6zfouSAEz/wxlogin/wxLogin/tempUserId?secretKey=06a0b50645544c58ba32cb475ae6330a");} catch (Exception e) {e.printStackTrace();}return codeUrl;} }
前端展示二维码
使用 vue-qriously 利用二维码信息 qrCodeReturnUrl 生成二维码，展示给用户，代码如下
<template><div class="main"><div v-show="!showform"><qriously :value="qrCodeReturnUrl" :size="250"/><font aligen="center">请使用微信扫码登录</font><!-- initQCode: 是你在你的vue实例中定义好的变量 size:是这个Canvas的大小，这里要根据你的视觉稿来决定--></div><!-- 更多登录方式 --><div class="more-sign"><h6>社交帐号登录</h6><ul><li><a id="weixin" class="weixin" target="_blank" @click="getQrCodeReturnUrl()"><iclass="iconfont icon-weixin" /></a></li></ul></div></div></div>
</template><script>import '~/assets/css/sign.css'import '~/assets/css/iconfont.css'import cookie from 'js-cookie'import register from '@/api/register'import Qriously from 'vue-qriously'export default {layout: 'sign',data () {return {loginInfo:{},qrCodeReturnUrl:'',tempUserId:'',showform:true}},methods: {// 获取扫码登录信息getQrCodeReturnUrl(){// 请求刚刚写的控制器 http://localhost:8085/wx/login，可以直接 ajax 异步调用，这里使用 vue-admin 模板作了封装register.getQrCodeReturnUrl().then(response => {if (response.data.errcode === 0){console.log(response.data.data);this.qrCodeReturnUrl = response.data.data.qrCodeReturnUrl;this.tempUserId = response.data.data.tempUserIdthis.showform = false;}})}}
</script>
<style>.el-form-item__error{z-index: 9999999;}
</style>
编写码上登录传递信息给我们的地址
同样在上面的 controller 中添加回调方法，此方法必须是 post 请求类型，接收如下五个参数
| 属性 | 类型 | 说明 |
|---|---|---|
| userId | string | 用户唯一ID |
| tempUserId | string | 该次会话的凭证 |
| nickname | string | 登录用户的昵称（用户授权后,可获得,可能为空） |
| avatar | string | 登录用户的头像url（用户授权后,可获得,可能为空） |
| ipAddr | string | 登录地点的ip |
该方法还需要返回扫码登录状态，码上登录会根据返回的信息在用户手机上提示是否登录成功，返回信息如下，使用 map 封装这两个属性，需要将其转换成 json 格式进行返回
| 属性 | 类型 | 说明 |
|---|---|---|
| errcode | number | 错误码（0：请求成功） |
| message | string | 接口调用情况描述，如：”成功” |
详细代码如下：注意：此方法需要解决跨域问题，我使用了 Getway 网关解决，也可以加上 @CrossOrigin 注解或者其他方式
/**
* 微信登录回调
* @return
*/
@PostMapping("/callback")
@ResponseBody
public String callback(@RequestParam(value = "userId",required = false) String userId,@RequestParam(value = "tempUserId",required = false) String tempUserId,@RequestParam(value = "nickname",required = false) String nickname,@RequestParam(value = "avatar",required = false) String avatar,@RequestParam(value = "ipAddr",required = false) String ipAddr,HttpServletResponse httpServletResponse) {try {// 判断用户是否第一次登录Member memberById = memberServiceImpl.getById(userId);if (memberById == null) {// 第一次登录，创建用户Member member = new Member();member.setId(userId);member.setNickname(nickname);member.setAvatar(avatar);memberServiceImpl.save(member);memberById = memberServiceImpl.getById(userId);}// 使用 JwtUtils 生成 tokenString token = JwtUtils.getJwtToken(memberById.getId(), memberById.getNickname());// 将用户 token 存放进 redis，键是 tempUserIdredisTemplate.opsForValue().set(tempUserId, token, 1, TimeUnit.MINUTES);HashMap<String, Object> map = new HashMap<>(1);if (userId != null) {map.put("errcode", 0);map.put("message", "登录成功");}Gson gson = new Gson();return gson.toJson(map);} catch (Exception e) {HashMap<String, Object> map = new HashMap<>(1);map.put("errcode", 1);map.put("message", "登录失败");Gson gson = new Gson();return gson.toJson(map);}
}
JwtUtils 如下:
package com.zym.utils;import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jws;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import org.springframework.util.StringUtils;import javax.servlet.http.HttpServletRequest;
import java.util.Date;
import java.util.Optional;/*** JWT工具类* @author zym*/
public class JwtUtils {public static final long EXPIRE = 1000 * 60 * 60 * 24;public static final String APP_SECRET = "ukc8BDbRigUDaY6pZFfWus2jZWLPHO";public static String getJwtToken(String id, String nickname){String JwtToken = Jwts.builder().setHeaderParam("typ", "JWT").setHeaderParam("alg", "HS256").setSubject("guli-user").setIssuedAt(new Date()).setExpiration(new Date(System.currentTimeMillis() + EXPIRE)).claim("id", id).claim("nickname", nickname).signWith(SignatureAlgorithm.HS256, APP_SECRET).compact();return JwtToken;}/*** 判断token是否存在与有效* @param jwtToken* @return*/public static boolean checkToken(String jwtToken) {if(StringUtils.isEmpty(jwtToken)) {return false;}try {Jwts.parser().setSigningKey(APP_SECRET).parseClaimsJws(jwtToken);} catch (Exception e) {e.printStackTrace();return false;}return true;}/*** 判断token是否存在与有效* @param request* @return*/public static boolean checkToken(HttpServletRequest request) {try {String jwtToken = request.getHeader("token");if(StringUtils.isEmpty(jwtToken)) {return false;}Jwts.parser().setSigningKey(APP_SECRET).parseClaimsJws(jwtToken);} catch (Exception e) {e.printStackTrace();return false;}return true;}/*** 根据token获取会员id* @param request* @return*/public static String getMemberIdByJwtToken(HttpServletRequest request) {String jwtToken = request.getHeader("guli_token");if(!Optional.ofNullable(jwtToken).isPresent()) {return "";}Jws<Claims> claimsJws =Jwts.parser().setSigningKey(APP_SECRET).parseClaimsJws(jwtToken);Claims claims = claimsJws.getBody();return (String)claims.get("id");}
}
将本项目打包放到公网服务器上运行
登录码上登录官网，修改之前创建应用的回调 URL 为 callback 方法的公网请求路径
前端获取登录状态
在之前创建的 controller 中新增 getToken 方法，根据 tempUserId 循环查询 redis 中是否有这个用户的信息，如果有，就将其返回给前端
一段时间后，redis 都没有查询到用户的 token 则视为登录过期，提示用户刷新二维码后重新登录
/*** 微信登录回调，根据用户 tempUserId 从 redis 中获取 token* @return*/@GetMapping("/getToken/{tempUserId}")public R getToken(@PathVariable String tempUserId) {System.out.println("tempUserId = " + tempUserId);boolean flag = false;for (int i = 0; i < 60; i++) {String token = (String) redisTemplate.opsForValue().get(tempUserId);if (token != null) {return R.ok().setData("token", token);}else {try {sleep(2000);} catch (InterruptedException e) {e.printStackTrace();}}}return R.error().setData("message", "登录超时,点击微信图标刷新二维码后重试");}
前端编写 getToken 函数，调用这个 controller 查询登录状态，这里只展示 js 代码
<script>import '~/assets/css/sign.css'import '~/assets/css/iconfont.css'import cookie from 'js-cookie'import register from '@/api/register'import Qriously from 'vue-qriously'export default {layout: 'sign',data () {return {loginInfo:{},qrCodeReturnUrl:'',tempUserId:'',showform:true}},methods: {// 获取扫码登录信息getQrCodeReturnUrl(){register.getQrCodeReturnUrl().then(response => {if (response.data.errcode === 0){console.log(response.data.data);this.qrCodeReturnUrl = response.data.data.qrCodeReturnUrl;this.tempUserId = response.data.data.tempUserIdthis.showform = false;// 调用 getToken 函数this.getToken();}})},// 获取扫码登录用户tokengetToken(){// 请求后端刚刚写的控制器 http://localhost:8085/wx/getToken/这里是tempUserId ，查询这个二维码的登录信息register.getToken(this.tempUserId).then(response => {// 成功获取到登录信息，则将用户 token 保存到 cookie 中，并跳转到网站首页if (response.data.status === true) {console.log(response.data.data);cookie.set("token", response.data.data.token);this.$router.push("/");} else {// 获取用户信息超时的逻辑请自己编写}})}},}
</script>
注意：这里使用jwt做单点登录，你也可以直接存储用户信息
