chartControl 数据绑定

这里介绍两种绑定方式ChartControl直接绑定以及ChartControl里的series绑定

ChartControl直接绑定

通过chartControl的DataSource属性直接bingdings，DateSouce可以是实体list或者dataTable，按个人需求添加，这里用dataTable。
这里用数据库access做例程，数据表结构比较简单，数据库名Database.mdb，文件置于程序根目录下，如下：
在这里插入图片描述
dataSet初始化代码，

        private string txtConn ;private OleDbConnection dConnection;private  DataSet dSet;private  OleDbDataAdapter dAdapter;private void InitializeOledObject(){txtConn = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=.\\Database.mdb";dConnection = new OleDbConnection(txtConn);string txtCommand = "SELECT * FROM DataRecord order by time asc";dAdapter = new OleDbDataAdapter(txtCommand, dConnection);OleDbCommandBuilder combuilder = new OleDbCommandBuilder(dAdapter);combuilder.QuotePrefix = "[";//此两句是为了排除执行Update命令时提示“insert into语法错误”combuilder.QuoteSuffix = "]";dAdapter.InsertCommand = combuilder.GetInsertCommand();dAdapter.UpdateCommand = combuilder.GetUpdateCommand();dAdapter.DeleteCommand = combuilder.GetDeleteCommand();dSet = new DataSet();dAdapter.Fill(dSet);}

chart控件运行时添加，代码如下

			DevExpress.XtraCharts.ChartControl chartControl1 = new DevExpress.XtraCharts.ChartControl();    DevExpress.XtraCharts.SplineSeriesView splineSeriesView1 = new DevExpress.XtraCharts.SplineSeriesView();chartControl1.BeginInit();chartControl1.Dock = System.Windows.Forms.DockStyle.Fill;chartControl1.Location = new Point(0, 0);chartControl1.Parent = this;//手动生成Diagram，因为需要设置时间x坐标轴聚合单位，及开启缩放支持DevExpress.XtraCharts.XYDiagram xyDiagram1 = new DevExpress.XtraCharts.XYDiagram();  xyDiagram1.AxisX.DateTimeScaleOptions.MeasureUnit = DevExpress.XtraCharts.DateTimeMeasureUnit.Second;xyDiagram1.AxisX.DateTimeScaleOptions.ScaleMode = DevExpress.XtraCharts.ScaleMode.Manual;xyDiagram1.EnableAxisXScrolling = true;xyDiagram1.EnableAxisXZooming = true;chartControl1.Diagram = xyDiagram1;//数据源绑定dataSet里的dataTablechartControl1.DataSource = dSet.Tables[0];//自动生成的series的x值对应数据库time字段chartControl1.SeriesTemplate.ArgumentDataMember = "time";//自动生成的series的Y值对应数据库temperature字段，部分series类型y值需要指定两个值，这里默认line series 只add一个字段就好chartControl1.SeriesTemplate.ValueDataMembers.AddRange("temperature");//chart dataSource数据绑定可根据SeriesDataMember，用以数据归类，生成series，可生成多条serieschartControl1.SeriesTemplate.SeriesDataMember = "dataRecordId";//设置series类型为线图chartControl1.SeriesTemplate.View = splineSeriesView1;chartControl1.Legend.MarkerMode = DevExpress.XtraCharts.LegendMarkerMode.CheckBoxAndMarker;//Legend label 格式化chartControl1.SeriesTemplate.LegendTextPattern = "测试Id:{S}";//corssHair label 格式化chartControl1.SeriesTemplate.CrosshairLabelPattern = "{A:yyyy-MM-dd H:mm:ss}: {V:F2}";chartControl1.EndInit();

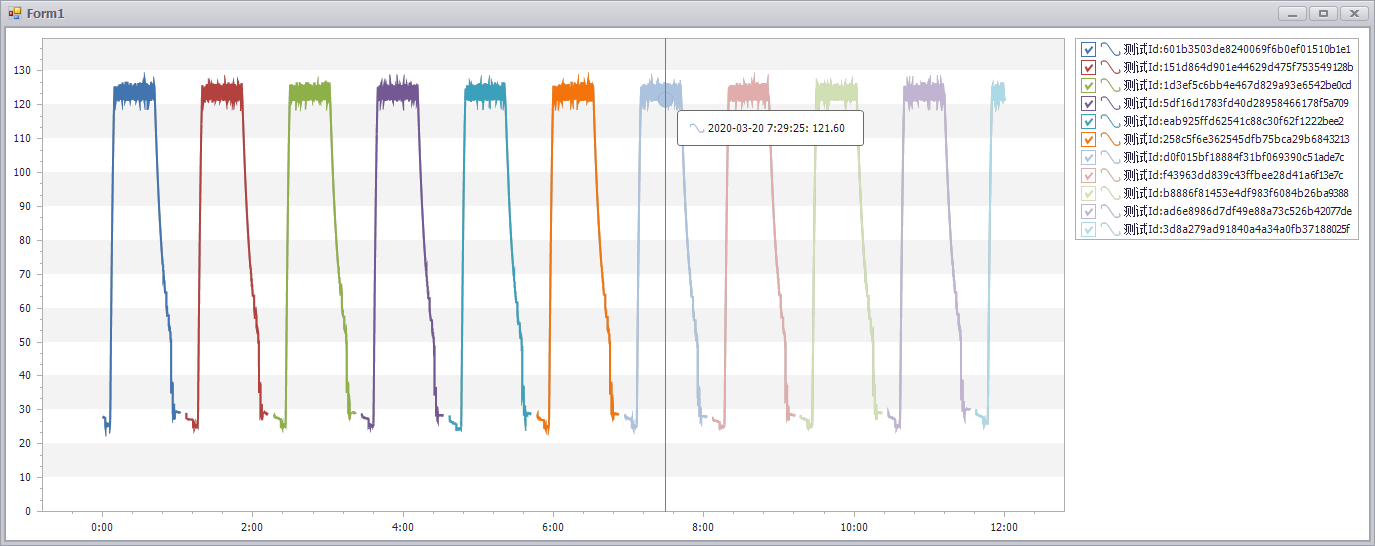

数据库中假数据35000条数据，共生成series11条，运行显示如下：
在这里插入图片描述

Series 绑定

当只有一条series需要绑定，不需要生成个多条时，可直接直接series 绑定，设置datasource、ValueDataMembers及ArgumentDataMember即可

			//手动生成一条seriesDevExpress.XtraCharts.Series series1 = new DevExpress.XtraCharts.Series();DevExpress.XtraCharts.ChartControl chartControl1 = new DevExpress.XtraCharts.ChartControl();DevExpress.XtraCharts.SplineSeriesView splineSeriesView1 = new DevExpress.XtraCharts.SplineSeriesView();chartControl1.BeginInit();chartControl1.Dock = System.Windows.Forms.DockStyle.Fill;chartControl1.Location = new Point(0, 0);chartControl1.Parent = this;DevExpress.XtraCharts.XYDiagram xyDiagram1 = new DevExpress.XtraCharts.XYDiagram();xyDiagram1.AxisX.DateTimeScaleOptions.MeasureUnit = DevExpress.XtraCharts.DateTimeMeasureUnit.Second;xyDiagram1.AxisX.DateTimeScaleOptions.ScaleMode = DevExpress.XtraCharts.ScaleMode.Manual;xyDiagram1.AxisY.GridLines.Visible = false;xyDiagram1.AxisY.Interlaced = true;xyDiagram1.EnableAxisXScrolling = true;xyDiagram1.EnableAxisXZooming = true;chartControl1.Diagram = xyDiagram1;//series 绑定series1.DataSource = dSet.Tables[0];series1.ArgumentDataMember = "time";series1.ValueDataMembers.AddRange("temperature");chartControl1.Legend.MarkerMode = DevExpress.XtraCharts.LegendMarkerMode.CheckBoxAndMarker;series1.LegendTextPattern = "测试Id:{S}";series1.View = splineSeriesView1;series1.CrosshairLabelPattern = "{A:yyyy-MM-dd H:mm:ss}: {V:F2}";//series添加到chart控件中chartControl1.Series.Add(series1);chartControl1.EndInit();
