H3C交换机Console密码忘记处理方法

article/2025/10/10 12:22:16

1 配置需求或说明
1.1 适用产品系列
本案例适用于如本案例适用于如S7006、S7503E、S7506E、S7606、S10510、S10508等S7000、S7500E、S10508等S7000、S7500E、S10500系列，且软件版本是V7的交等的V7交换机，V5、V7交换机具体分类及型号可以参考“1.1 Comware V5、V7平台交换机分类说明”。

1.2 配置需求及实现的效果
清除Consle密码，恢复出厂

2 组网图
无

3 配置步骤
3.1 进入bootroom菜单清除Consle密码
通过conlse线和crt软件连接并登陆设备，然后把设备断电重启。控制台上会打印如下信息，当出现“press Ctrl+B”的时候快速按住“Ctrl+B” 进入botroom菜单

System is starting…
Press Ctrl+D to access BASIC-BOOTWARE MENU
Booting Normal Extend BootWare
The Extend BootWare is self-decompressing…Done!
BootWare Validating…
Press Ctrl+B to enter extended boot menu…

BotWare password: Not required. Please press Enter to continue.

Password recovery capability is enabled.

Note: The current operating device is flash

Enter < Storage Device Operation > to select device.

  按住“Ctrl+B”进入如下菜单。选择“<6> Skip Current System Configuration”跳过当前配置启动,不同设备可能不是数字6，

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Clear Super Password |

|<9> Storage Device Operation |

|<0> Reboot |

============================================================================

Ctrl+Z: Access EXTEND-ASSISTANT MENU

Ctrl+F: Format File System

Enter your choice(0-9): 6

Flag Set Success.

然后输入0重启设备

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Restore to Factory Default Configuration |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Clear Super Password |

|<9> Storage Device Operation |

|<0> Reboot |

============================================================================

Ctrl+Z: Access EXTEND-ASSISTANT MENU

Ctrl+F: Format File System

Enter your choice(0-9): 0

System is starting…

Press ENTER to get started.

3.2 如果不需要之前的配置信息的话
操作步骤：跳过启动文件后直接保存当前配置，再重启。

save

The current configuration will be written to the device. Are you sure? [Y/N]:y

Please input the file name(*.cfg)[flash:/startup.cfg]

(To leave the existing filename unchanged, press the enter key):（输入回车）

flash:/startup.cfg exists, overwrite? [Y/N]:y

Validating file. Please wait…

Configuration is saved to device successfully.

reboot

Start to check configuration with next startup configuration file, please wait…DONE!

Current configuration may be lost after the reboot, save current configuration? [Y/N]:y

This command will reboot the device. Continue? [Y/N]:y

3.3 如果需要之前的配置信息的话

#Apr 26 12:02:07:166 2000 H3C SHELL/4/LOGIN:

Trap 1.3.6.1.4.1.25506.2.2.1.1.3.0.1: login from Console

%Apr 26 12:02:07:306 2000 H3C SHELL/5/SHELL_LOGIN: Console logged in from aux0.

dir %查看设备配置文件

Directory of flash:/

1 drw- - Apr 26 2000 12:00:20 logfile

2 -rw- 1666 Apr 26 2000 12:05:39 startup.cfg

3 -rw- 1556 Apr 26 2000 12:05:33 _startup_bak.cfg

4 -rw- 151 Apr 26 2000 12:05:30 system.xml

29106 KB total (16876 KB free)

给设备和电脑配置成同网段IP地址（举例：WAC配置成192.168.100.1，电脑配置成192.168.100.2），在电脑上通过3CD软件搭建tftp服务器。

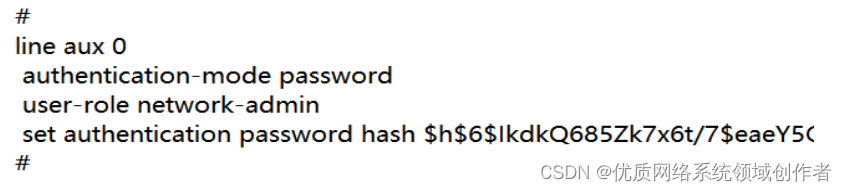

在这里插入图片描述

sys

System View: return to User View with Ctrl+Z.

[H3C]interface Vlan-interface 1

[H3C-Vlan-interface1]ip address 192.168.100.1 24

[H3C-Vlan-interface1]quit

[H3C]ping 192.168.100.2

PING 192.168.100.2: 56 data bytes, press CTRL_C to break

Reply from 192.168.100.2: bytes=56 Sequence=1 ttl=128 time=7 msReply from 192.168.100.2: bytes=56 Sequence=2 ttl=128 time=2 ms

tftp 192.168.100.2 put startup.cfg

File will be transferred in binary mode
Sending file to remote TFTP server. Please wait… |
TFTP: 1666 bytes sent in 0 second(s).
File uploaded successfully.

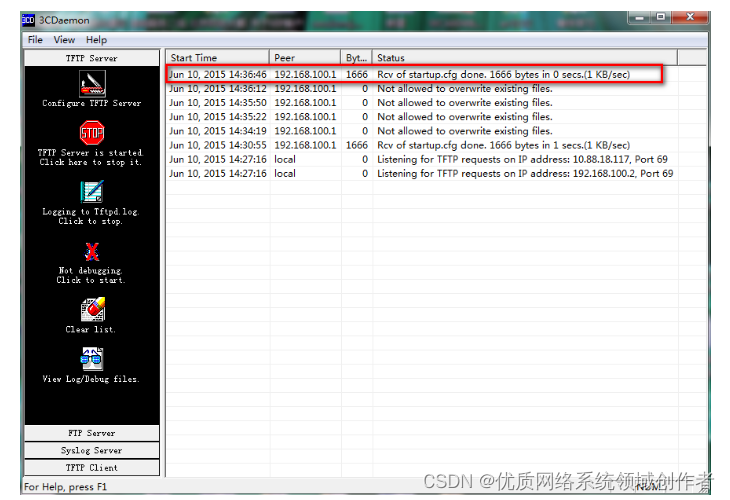

下载成功：

在这里插入图片描述
