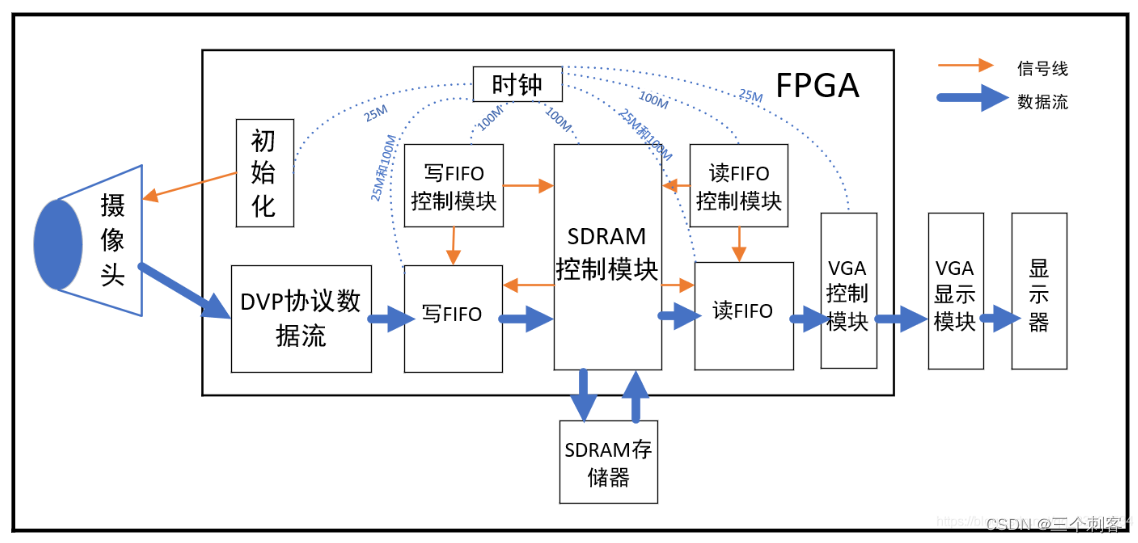

前言：整体系统框图

如图所示，FPGA中主要模块包含：时钟模块、OV7670初始化模块、DVP协议数据流模块、写FIFO模块、写FIFO控制模块、SDRAM控制模块、读FIFO模块、读FIFO控制模块、VGA控制模块。

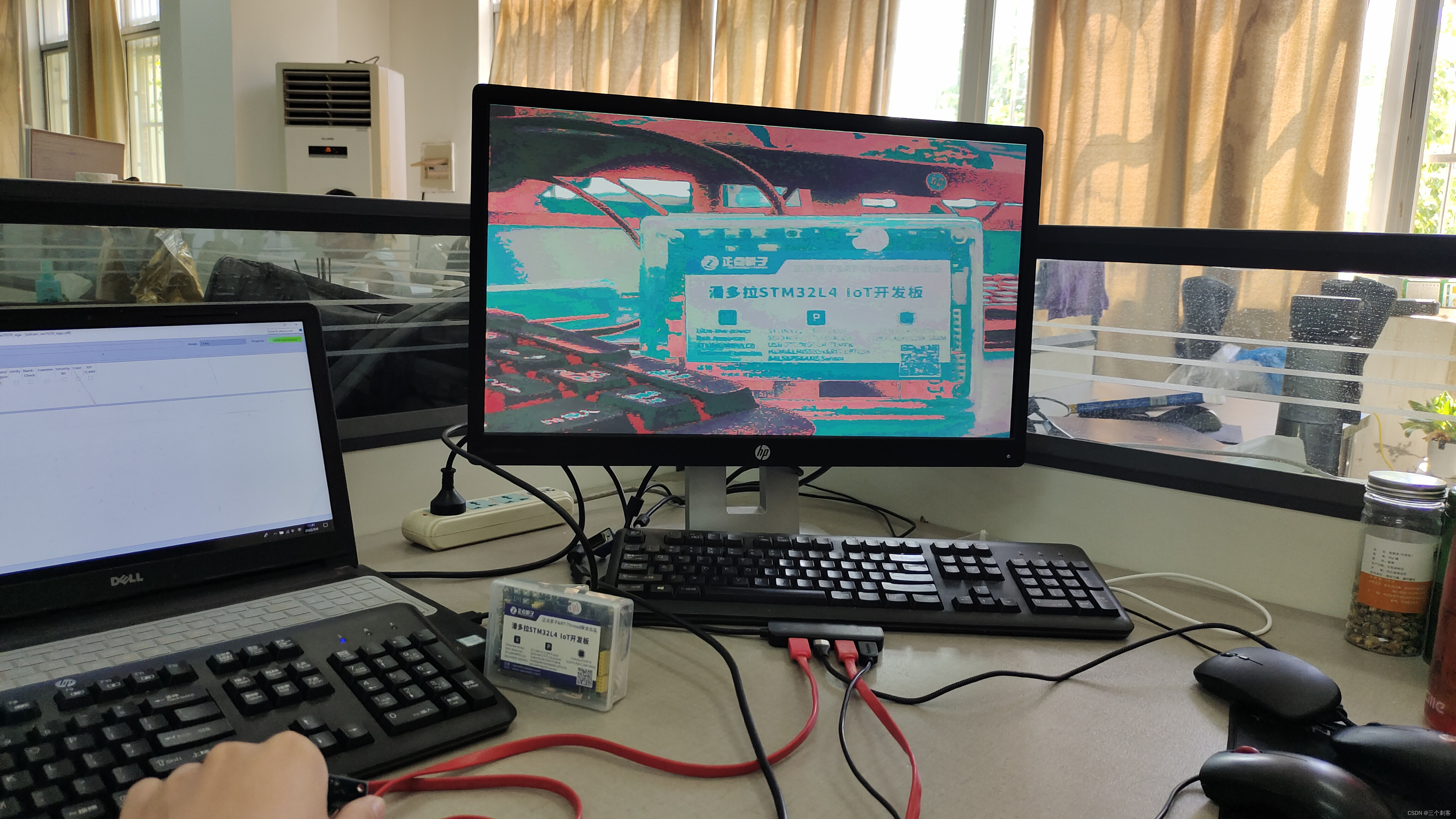

其整体流程为：启动时先对摄像头进行初始化设置，初始化完成后，FPGA从摄像头获取一帧一帧的图像数据，根据数据手册将ov7670数据流转换成我们需要的RGB565数据流，随后存入写FIFO模块；（写控制模块）当写FIFO模块中存储的数据大于等于8时，发出SDRAM写请求，SDRAM写请求通过后，读取FIFO数据存储起来；（读FIFO模块）当读FIFO数据小于等于8时，读取SDRAM中的数据经过读FIFO缓存后送入VGA显示模块进行显示。同时写控制模块和读控制模块控制SDRAM读写地址的增加。

1、时钟模块
这里使用PLL的IP核，以50MHz时钟生成25MHz和100MHz时钟，其中摄像头初始化模块和VGA控制模块使用的是25MHz，SDRAM控制模块、写FIFO控制模块和读FIFO控制模块使用的是100MHz，写FIFO和读FIFO模块都是异步FIFO，使用25MHz和100MHz时钟。

一、OV7670摄像头简介

OV7670/OV7171 图像传感器，体积小、工作电压低，提供单片VGA摄像头和影像处理器的所有功能。通过SCCB 总线控制，可以输出整帧、子采样、取窗口等方式的各种分辨率8位影响数据。该产品VGA图像最高达到30帧/秒。用户可以完全控制图像质量、数据格式和传输方式。所有图像处理功能过程包括伽玛曲线、白平衡、饱和度、色度等都可以通过SCCB接口编程。OmmiVision 图像传感器应用独有的传感器技术，通过减少或消除光学或电子缺陷如固定图案噪声、托尾、浮散等，提高图像质量，得到清晰的稳定的彩色图像。

主要引出的信号引脚如下：

3.3V--输入电源电压(推荐使用3.3V,5V也可，但不推荐)

GND

SCL(SIOC)：SCCB时钟口(注意：部分单片机需要上拉控制，和I2C接口类似)

SDA(SIOD)：SCCB数据口(注意：部分单片机需要上拉控制，和I2C接口类似)

VSYNC：场同步（帧同步）信号(输出信号)

HREF：行同步信号(输出信号，一般可以不使用，特殊情况使用)

PCLK：像素时钟

XCLK：系统时钟输入

D0-D7:数据位(输出信号)

RESET：初始化所有寄存器到默认值 0：RESET 模式 1：一般模式

PWDN：POWER DOWN模式选择 0：工作 1：POWER DOWN

其中，对OV7670初始化配置只使用SCL和SDA两个信号线。

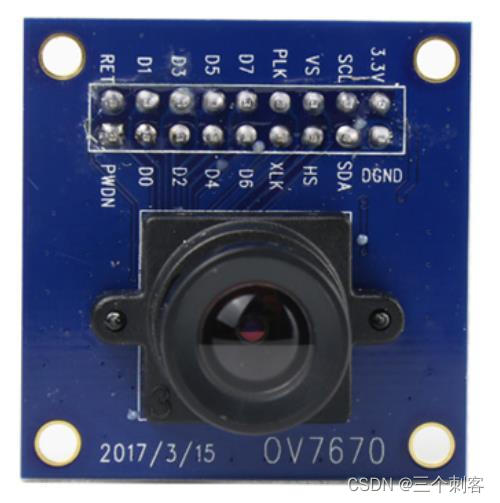

所用模块如图：

二、OV7670 SCCB协议简介

对OV7670初始化使用的是SCCB协议，由数据线SDA和时钟线SCL组成，SCCB协议和I2C协议基本一样，是简化的I2C协议，前面博客中已经讲过I2C协议，需要可以去看看。

SCCB(SeriaI Camera ControlBus)是简化的I2C协议，SIO-l是串行时钟输入线，SIO-O是串行双向数据线，分别相当于I2C协议的SCL和SDA。SCCB的总线时序与I2C基本相同，它的响应信号ACK被称为一个传输单元的第9位，分为Don’t care和NA。Don’t care位由从机产生;NA位由主机产生，由于SCCB不支持多字节的读写，NA位必须为高电平。另外，SCCB没有重复起始的概念，因此在SCCB的读周期中，当主机发送完片内寄存器地址后，必须发送总线停止条件。不然在发送读命令时，从机将不能产生Don’t care响应信号。

这里采用的是100KHz的SCL。

三、OV7670初始化寄存器配置

OV7670摄像头共201个寄存器，需要配置的有一百六十几个，这个具体看数据手册吧，下边代码中会有配置寄存器的数据。

四、OV7670初始化代码编写

`timescale 1 ns / 1 ns
module system_ctrl
(input 		clk,		//50MHzinput 		rst_n,		//global resetoutput 		sys_rst_n,	//system resetoutput 		clk_c0,		output 		clk_c1,output		clk_c2,	//-75degoutput		clk_c3	//-75deg
);//----------------------------------------------
//rst_n synchronism, is controlled by the input clk
reg     rst_nr1,rst_nr2;
always @(posedge clk or negedge rst_n)
beginif(!rst_n)beginrst_nr1 <= 1'b0;rst_nr2 <= 1'b0;endelsebeginrst_nr1 <= 1'b1;rst_nr2 <= rst_nr1;end
end//----------------------------------
//component instantiation for system_delay
wire	delay_done;
system_delay	u_system_delay
(.clk		(clk),.rst_n		(rst_nr2),.delay_done	(delay_done)
);
wire	pll_rst = ~rst_nr2 & ~delay_done;	//active High//----------------------------------------------
//Component instantiation
wire 	locked;
sdram_pll	u_sdram_pll
(.inclk0	(clk),.areset	(pll_rst),.locked	(locked),.c0		(clk_c0),.c1		(clk_c1),.c2		(clk_c2),.c3		(clk_c3)
);//----------------------------------------------
//sys_rst_n synchronism, is control by the highest output clkwire	sysrst_nr0 = rst_nr2 & locked & delay_done;
reg 	sysrst_nr1, sysrst_nr2;
always @(posedge clk_c1 or negedge sysrst_nr0)
beginif(!sysrst_nr0) beginsysrst_nr1 <= 1'b0;sysrst_nr2 <= 1'b0;end        else beginsysrst_nr1 <= 1'b1;sysrst_nr2 <= sysrst_nr1;end
end
assign sys_rst_n = sysrst_nr2;	//active Lowendmodule//################################################//
//################################################//module system_delay
(input	clk,		//50MHzinput	rst_n,output	delay_done
);//------------------------------------------
// Delay 100ms for steady state
localparam	DELAY_CNT = 23'd100_0000;	//50ms
reg	[22:0] cnt;
always@(posedge clk or negedge rst_n)
beginif(!rst_n)cnt <= 0;elsebeginif(cnt < DELAY_CNT) //1mscnt <= cnt + 1'b1;elsecnt <= cnt;end
end//------------------------------------------
//sys_rst_n synchronism
assign	delay_done = (cnt == DELAY_CNT)? 1'b1 : 1'b0;endmodule

摄像头检测代码

`timescale 1ns/1ns
module CMOS_Capture
(//Global Clockinput				iCLK,			//25MHzinput				iRST_N,//I2C Initilize Doneinput				Init_Done,		//Init Done//Sensor Interfaceoutput				CMOS_RST_N,		//cmos work state(5ms delay for sccb config)output				CMOS_PWDN,      //cmos power on	output				CMOS_XCLK,		//25MHzinput				CMOS_PCLK,		//25MHzinput	[7:0]		CMOS_iDATA,		//CMOS Datainput				CMOS_VSYNC,		//L: Vaildinput				CMOS_HREF,		//H: Vaild//Ouput Sensor Dataoutput	reg			CMOS_oCLK,		//1/2 PCLKoutput	reg	[15:0]	CMOS_oDATA,		//16Bits RGB		output	reg			CMOS_VALID,		//Data Enableoutput	reg	[7:0]	CMOS_FPS_DATA	//cmos fps
);
assign	CMOS_RST_N = 1'b1;		//cmos work state(5ms delay for sccb config)
assign  CMOS_PWDN = 1'b0;		//cmos power on
assign	CMOS_XCLK = iCLK;		//25MHz XCLK//-----------------------------------------------------
//同步输入//Sensor HS & VS Vaild Capture
/**************************************************
________							       ________
VS		|_________________________________|
HS			  _______	 	   _______
_____________|       |__...___|       |____________
**************************************************//*
//----------------------------------------------
reg		mCMOS_HREF;		//行同步：高电平有效
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)mCMOS_HREF <= 0;elsemCMOS_HREF <= CMOS_HREF;
end
wire	CMOS_HREF_over = ({mCMOS_HREF,CMOS_HREF} == 2'b10) ? 1'b1 : 1'b0;		//HREF 下降沿结束
*///----------------------------------------------
reg		mCMOS_VSYNC;
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)mCMOS_VSYNC <= 1;elsemCMOS_VSYNC <= CMOS_VSYNC;		//场同步：低电平有效
end
wire	CMOS_VSYNC_over = ({mCMOS_VSYNC,CMOS_VSYNC} == 2'b01) ? 1'b1 : 1'b0;	//VSYNC上升沿结束/*
//--------------------------------------------
//Counter the HS & VS Pixel
localparam		H_DISP	=	12'd640;
localparam		V_DISP	=	12'd480;
reg		[11:0]	X_Cont;	//640
reg		[11:0]	Y_Cont;	//480
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)X_Cont <= 0;else if(~CMOS_VSYNC & CMOS_HREF)			//场信号有效X_Cont <= (byte_state == 1'b1) ?  X_Cont + 1'b1 : X_Cont;elseX_Cont <= 0;
endalways@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)Y_Cont <= 0;else if(CMOS_VSYNC == 1'b0)beginif(CMOS_HREF_over == 1'b1)		//HREF下降沿 一行结束Y_Cont <= Y_Cont + 1'b1;endelseY_Cont <= 0;
end
*///-----------------------------------------------------
//Change the sensor data from 8 bits to 16 bits.
reg			byte_state;		//byte state count
reg [7:0]  	Pre_CMOS_iDATA;
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)beginbyte_state <= 0;Pre_CMOS_iDATA <= 8'd0;CMOS_oDATA <= 16'd0;endelsebeginif(~CMOS_VSYNC & CMOS_HREF)			//行场有效，{first_byte, second_byte} beginbyte_state <= byte_state + 1'b1;	//（RGB565 = {first_byte, second_byte}）case(byte_state)1'b0 :	Pre_CMOS_iDATA[7:0] <= CMOS_iDATA;1'b1 : 	CMOS_oDATA[15:0] <= {Pre_CMOS_iDATA[7:0], CMOS_iDATA[7:0]};endcaseendelsebeginbyte_state <= 0;Pre_CMOS_iDATA <= 8'd0;CMOS_oDATA <= CMOS_oDATA;endend
end//--------------------------------------------
//Wait for Sensor output Data valid， 10 Franme
reg	[3:0] 	Frame_Cont;
reg 		Frame_valid;
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)beginFrame_Cont <= 0;Frame_valid <= 0;endelse if(Init_Done)					//CMOS I2C初始化完毕beginif(CMOS_VSYNC_over == 1'b1)		//VS上升沿，1帧写入完毕beginif(Frame_Cont < 12)beginFrame_Cont	<=	Frame_Cont + 1'b1;Frame_valid <= 1'b0;endelsebeginFrame_Cont	<=	Frame_Cont;Frame_valid <= 1'b1;		//数据输出有效endendend
end//-----------------------------------------------------
//CMOS_DATA数据同步输出使能时钟
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)CMOS_oCLK <= 0;else if(Frame_valid == 1'b1 && byte_state)//(X_Cont >= 12'd1 && X_Cont <= H_DISP))CMOS_oCLK <= ~CMOS_oCLK;elseCMOS_oCLK <= 0;
end//----------------------------------------------------
//数据输出有效CMOS_VALID
always@(posedge CMOS_PCLK or negedge iRST_N)
beginif(!iRST_N)CMOS_VALID <= 0;else if(Frame_valid == 1'b1)CMOS_VALID <= ~CMOS_VSYNC;elseCMOS_VALID <= 0;
end/************************************************************Caculate Frame Rate per second
*************************************************************/
//-----------------------------------------------------
//	2s 延时函数
reg	[25:0]	delay_cnt;	//25_000000 * 2
always@(posedge iCLK or negedge iRST_N)
beginif(!iRST_N)delay_cnt <= 0;else if(Frame_valid)beginif(delay_cnt < 26'd50_000000)delay_cnt <= delay_cnt + 1'b1;elsedelay_cnt <= 0;endelsedelay_cnt <= 0;
end
wire	delay_2s = (delay_cnt == 26'd50_000000) ? 1'b1 : 1'b0;//-------------------------------------------
//帧率采样计算
reg			fps_state;
reg	[7:0]	fps_data;
always@(posedge iCLK or negedge iRST_N)
beginif(!iRST_N)beginfps_data <= 0;fps_state <= 0;CMOS_FPS_DATA <= 0;endelse if(Frame_valid)begincase(fps_state)0:	beginCMOS_FPS_DATA <= CMOS_FPS_DATA;if(delay_2s == 0)beginfps_state <= 0;if(CMOS_VSYNC_over == 1'b1)		//VS上升沿，1帧写入完毕fps_data <= fps_data + 1'b1;endelsefps_state <= 1;end1:	beginfps_state <= 0;fps_data <= 0;CMOS_FPS_DATA <= fps_data >>1;endendcaseendelsebeginfps_data <= 0;fps_state <= 0;CMOS_FPS_DATA <= 0;end
endendmodule

摄像头开机定时要求

//camera power on timing requirement
module power_on_delay(clk_50M,reset_n,camera_rstn,camera_pwnd,initial_en);
input clk_50M;
input reset_n;
output camera_rstn;
output camera_pwnd;
output initial_en;
reg [18:0]cnt1;
reg [15:0]cnt2;
reg [19:0]cnt3;
reg initial_en;
reg camera_rstn_reg;
reg camera_pwnd_reg;assign camera_rstn=camera_rstn_reg;
assign camera_pwnd=camera_pwnd_reg;//5ms, delay from sensor power up stable to Pwdn pull down
always@(posedge clk_50M)
beginif(reset_n==1'b0) begincnt1<=0;camera_pwnd_reg<=1'b1;  endelse if(cnt1<18'h40000) begincnt1<=cnt1+1'b1;camera_pwnd_reg<=1'b1;endelsecamera_pwnd_reg<=1'b0;
end//1.3ms, delay from pwdn low to resetb pull up
always@(posedge clk_50M)
beginif(camera_pwnd_reg==1)  begincnt2<=0;camera_rstn_reg<=1'b0;  endelse if(cnt2<16'hffff) begincnt2<=cnt2+1'b1;camera_rstn_reg<=1'b0;endelsecamera_rstn_reg<=1'b1;
end//21ms, delay from resetb pul high to SCCB initialization
always@(posedge clk_50M)
beginif(camera_rstn_reg==0) begincnt3<=0;initial_en<=1'b0;endelse if(cnt3<20'hfffff) begincnt3<=cnt3+1'b1;initial_en<=1'b0;endelseinitial_en<=1'b1;
endendmodule

sdram_vga_top

module sdram_vga_top
(//global clockinput			clk_vga,		//vga clockinput			clk_ref,		//sdram ctrl clockinput			clk_refout,		//sdram clock outputinput			rst_n,			//global reset//sdram controloutput			sdram_clk,		//sdram clockoutput			sdram_cke,		//sdram clock enableoutput			sdram_cs_n,		//sdram chip selectoutput			sdram_we_n,		//sdram write enableoutput			sdram_cas_n,	//sdram column address strobeoutput			sdram_ras_n,	//sdram row address strobeoutput			sdram_udqm,		//sdram data enable (H:8)output			sdram_ldqm,		//sdram data enable (L:8)output	[1:0]	sdram_ba,		//sdram bank addressoutput	[11:0]	sdram_addr,		//sdram addressinout	[15:0]	sdram_data,		//sdram data//lcd portoutput			lcd_dclk,		//lcd pixel clock			output			lcd_hs,			//lcd horizontal sync output			lcd_vs,			//lcd vertical syncoutput			lcd_sync,		//lcd syncoutput			lcd_blank,		//lcd blank(L:blank)output	[4:0]	lcd_red,		//lcd red dataoutput	[5:0]	lcd_green,		//lcd green dataoutput	[4:0]	lcd_blue,		//lcd blue data//user interfaceinput			clk_write,		//fifo write clockinput			sys_we,			//fifo write enableinput	[15:0]	sys_data_in,	//fifo data inputoutput			sdram_init_done,//sdram init doneinput			frame_valid		//frame valid
);//----------------------------------------------
wire			sys_rd;        		//fifo read enable
wire	[15:0]	sys_data_out;  		//fifo data output
wire			lcd_framesync;		//lcd frame sync
wire			frame_write_done;	//sdram write frame done
wire			frame_read_done;	//sdram read frame done
wire	[1:0]	wr_bank;			//sdram write bank
wire	[1:0]	rd_bank;			//sdram read bank
wire			wr_load;			//sdram write address reset
wire			rd_load;			//sdram read address reset
sdram_2fifo_top	u_sdram_2fifo_top
(//global clock.clk_ref			(clk_ref),			//sdram	reference clock.clk_refout			(clk_refout),		//sdram clk	input .clk_write			(clk_write),		//fifo data write clock.clk_read			(clk_vga),			//fifo data read clock.rst_n				(rst_n),			//global reset//sdram interface.sdram_clk			(sdram_clk),		//sdram clock	.sdram_cke			(sdram_cke),		//sdram clock enable	.sdram_cs_n			(sdram_cs_n),		//sdram chip select	.sdram_we_n			(sdram_we_n),		//sdram write enable	.sdram_ras_n		(sdram_ras_n),		//sdram column address strobe	.sdram_cas_n		(sdram_cas_n),		//sdram row address strobe	.sdram_ba			(sdram_ba),			//sdram data enable (H:8)    .sdram_addr			(sdram_addr),		//sdram data enable (L:8)	.sdram_data			(sdram_data),		//sdram bank address	.sdram_udqm			(sdram_udqm),		//sdram address	.sdram_ldqm			(sdram_ldqm),		//sdram data//user interface//burst and addr.wr_length			(9'd256),			//sdram write burst length.rd_length			(9'd256),			//sdram read burst length.wr_addr			({wr_bank,20'd0}),			//sdram start write address.wr_max_addr		({wr_bank,20'd307200}),		//sdram max write address.wr_load			(wr_load),			//sdram write address reset.rd_addr			({rd_bank,20'd0}),			//sdram start read address.rd_max_addr		({rd_bank,20'd307200}),		//sdram max read address.rd_load			(rd_load),			//sdram read address reset//dcfifo interface.sdram_init_done	(sdram_init_done),	//sdram init done.frame_write_done	(frame_write_done),	//sdram write one frame.frame_read_done	(frame_read_done),	//sdram read one frame.sys_we				(sys_we),			//fifo write enable.sys_data_in		(sys_data_in),		//fifo data input.sys_rd				(sys_rd),			//fifo read enable.sys_data_out		(sys_data_out),		//fifo data output.data_valid			(lcd_framesync)		//system data output enable
);//-----------------------------
sdbank_switch	u_sdbank_switch
(.clk				(clk_write),.rst_n				(rst_n),.bank_valid			(frame_valid),.frame_write_done	(frame_write_done),.frame_read_done	(frame_read_done),.wr_bank			(wr_bank),.rd_bank			(rd_bank),.wr_load			(wr_load),.rd_load			(rd_load)
);//---------------------------------
//display on lcd
wire	[10:0]	lcd_xpos;
wire	[10:0]	lcd_ypos;
wire	[15:0]	lcd_data;
assign lcd_data = sys_data_out;
/*
lcd_display	U_lcd_display
(.clk			(clk_vga),.rst_n			(rst_n),.alpha_data		(9'hC8),.lcd_xpos		(lcd_xpos),.lcd_ypos		(lcd_ypos),.lcd_data_in	(sys_data_out),	.lcd_data		(lcd_data)
);
*/
//-----------------------------
//lcd driver top module
lcd_top	u_lcd_top
(//global clock.clk			(clk_vga),	.rst_n			(rst_n),	//lcd interface.lcd_blank		(lcd_blank),.lcd_sync		(lcd_sync),.lcd_dclk		(lcd_dclk),.lcd_hs			(lcd_hs),		.lcd_vs			(lcd_vs),	.lcd_en			(),	.lcd_rgb		({lcd_red, lcd_green ,lcd_blue}),//user interface.lcd_request	(sys_rd),.lcd_framesync	(lcd_framesync),.lcd_data		(lcd_data),.lcd_xpos		(lcd_xpos),.lcd_ypos		(lcd_ypos)
);endmodule

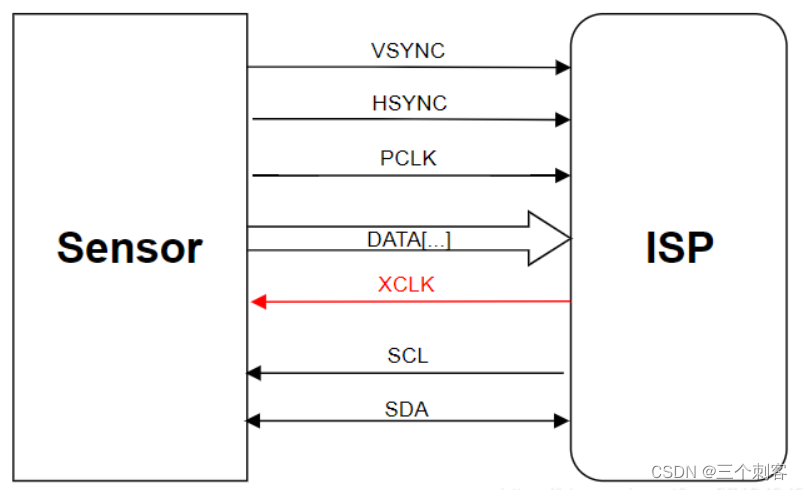

五、什么是DVP?

DVP（Digital Video Port）是传统的sensor输出接口，采用并行输出方式，d数据位宽有8bit、10bit、12bit、16bit，是CMOS电平信号（重点是非差分信号），PCLK最大速率为96MHz，接口如下图：

DVP协议是摄像头中常用的协议，除了DVP协议摄像头中还有其他常用的协议如：MIPI、LVDS等协议,以实现标准图像数据流转换，其中摄像头8位数据转16位代码如下

module cmos_8_16bit(input              rst,input              pclk,input [7:0]        pdata_i,input              de_i,output reg[15:0]   pdata_o,//转换成16位RGB565图像数据output reg         hblank,output reg         de_o
);
reg[7:0] pdata_i_d0;
reg[11:0] x_cnt;
always@(posedge pclk)
beginpdata_i_d0 <= pdata_i;
endalways@(posedge pclk or posedge rst)
beginif(rst)x_cnt <= 12'd0;else if(de_i)x_cnt <= x_cnt + 12'd1;elsex_cnt <= 12'd0;
endalways@(posedge pclk or posedge rst)
beginif(rst)de_o <= 1'b0;else if(de_i && x_cnt[0])de_o <= 1'b1;elsede_o <= 1'b0;
endalways@(posedge pclk or posedge rst)
beginif(rst)hblank <= 1'b0;elsehblank <= de_i;
endalways@(posedge pclk or posedge rst)
beginif(rst)pdata_o <= 16'd0;else if(de_i && x_cnt[0])pdata_o <= {pdata_i_d0,pdata_i};elsepdata_o <= 16'd0;
endendmodule

六、摄像头写数据请求

module cmos_write_req_gen(input              rst,input              pclk,input              cmos_vsync,output reg         write_req,output reg[1:0]    write_addr_index,output reg[1:0]    read_addr_index,input              write_req_ack
);
reg cmos_vsync_d0;
reg cmos_vsync_d1;
always@(posedge pclk or posedge rst)
beginif(rst == 1'b1)begincmos_vsync_d0 <= 1'b0;cmos_vsync_d1 <= 1'b0;endelsebegincmos_vsync_d0 <= cmos_vsync;cmos_vsync_d1 <= cmos_vsync_d0;end
end
always@(posedge pclk or posedge rst)
beginif(rst == 1'b1)write_req <= 1'b0;else if(cmos_vsync_d0 == 1'b1 && cmos_vsync_d1 == 1'b0)write_req <= 1'b1;else if(write_req_ack == 1'b1)write_req <= 1'b0;
end
always@(posedge pclk or posedge rst)
beginif(rst == 1'b1)write_addr_index <= 2'b0;else if(cmos_vsync_d0 == 1'b1 && cmos_vsync_d1 == 1'b0)write_addr_index <= write_addr_index + 2'd1;
endalways@(posedge pclk or posedge rst)
beginif(rst == 1'b1)read_addr_index <= 2'b0;else if(cmos_vsync_d0 == 1'b1 && cmos_vsync_d1 == 1'b0)read_addr_index <= write_addr_index;
end
endmodule

七、顶层文件编写

`timescale 1ns / 1ps
module sdram_ov7670_vga
(//global clock 50MHz//input			clk_27,			//27MHzinput			CLOCK,	//input			rst_n,			//global reset//sdram controloutput			S_CLK,		//sdram clockoutput			S_CKE,		//sdram clock enableoutput			S_NCS,		//sdram chip selectoutput			S_NWE,		//sdram write enableoutput			S_NCAS,	//sdram column address strobeoutput			S_NRAS,	//sdram row address strobeoutput[1:0] 	S_DQM,		//sdram data enable output	[1:0]	S_BA,		//sdram bank addressoutput	[12:0]	S_A,		//sdram addressinout	[15:0]	S_DB,		//sdram data//VGA port			output			VGA_HSYNC,			//horizontal sync output			VGA_VSYNC,			//vertical syncoutput	[15:0]	VGAD,		//VGA data//cmos interfaceoutput			CMOS_SCLK,		//cmos i2c clockinout			CMOS_SDAT,		//cmos i2c datainput			CMOS_VSYNC,		//cmos vsyncinput			CMOS_HREF,		//cmos hsync refrenceinput			CMOS_PCLK,		//cmos pxiel clockoutput			CMOS_XCLK,		//cmos externl clockinput	[7:0]	CMOS_DB,		//cmos data
//	output			cmos_rst_n,		//cmos reset
//	output			cmos_pwdn,		//cmos pwer downoutput	[3:0]	LED		//led data input
);
assign rst_n = 1'b1;
//---------------------------------------------
wire  clk_camera;
wire	clk_vga;		//vga clock
wire	clk_ref;		//sdram ctrl clock
wire	clk_refout;		//sdram clock output
wire	sys_rst_n;		//global reset
system_ctrl	u_system_ctrl
(.clk				(CLOCK),			//global clock  50MHZ.rst_n				(rst_n),		//external reset.sys_rst_n			(sys_rst_n),	//global reset.clk_c0				(clk_camera),	//13MHz.clk_c1				(clk_vga),		//25MHz.clk_c2				(clk_ref),	   //100MHz.clk_c3				(clk_refout)	//100MHz
);//-----------------------------
wire	[7:0]	I2C_RDATA;		//i2c register data
wire	[7:0]	LUT_INDEX;		//lut index
wire			Config_Done;	//I2C config done
I2C_AV_Config	u_I2C_AV_Config
(//Global clock.iCLK				(clk_vga),		//25MHz.iRST_N				(sys_rst_n),	//Global Reset//I2C Side.I2C_SCLK			(CMOS_SCLK),	//I2C CLOCK.I2C_SDAT			(CMOS_SDAT),	//I2C DATA//CMOS Signal.Config_Done		(Config_Done),	//I2C Config done.I2C_RDATA			(I2C_RDATA),	//CMOS ID.LUT_INDEX			()//(LUT_INDEX)		//ID Index
);
assign	led_data = I2C_RDATA;				//diaplay I2C_RDATA
//-----------------------------------------------
//Seg7_lut	u5	(	LUT_INDEX[7:4],	oSEG5	);
//Seg7_lut	u4	(	LUT_INDEX[3:0],	oSEG4	);
//Seg7_lut	u1	(	I2C_RDATA[7:4],	oSEG1	);
//Seg7_lut	u0	(	I2C_RDATA[3:0],	oSEG0	);//-----------------------------------------------
wire			frame_valid;		//data valid, or address restart
wire	[7:0]	cmos_fps_data;		//cmos frame rate
CMOS_Capture	u_CMOS_Capture
(//Global Clock.iCLK				(clk_camera),		//24MHz.iRST_N				(sys_rst_n),	//global reset//I2C Initilize Done.Init_Done			(Config_Done & sdram_init_done),	//Init Done//Sensor Interface.CMOS_RST_N			(),//(cmos_rst_n),	//cmos work state .CMOS_PWDN			(),//(cmos_pwdn),	//cmos power on	.CMOS_XCLK			(CMOS_XCLK),		//cmos.CMOS_PCLK			(CMOS_PCLK),		//25MHz.CMOS_iDATA			(CMOS_DB),    	//CMOS Data.CMOS_VSYNC			(CMOS_VSYNC),  	 	//L: Vaild.CMOS_HREF			(CMOS_HREF), 		//H: Vaild//Ouput Sensor Data                 .CMOS_oCLK			(sys_we),			//Data PCLK.CMOS_oDATA			(sys_data_in),  	//16Bits RGB.CMOS_VALID			(frame_valid),		//Data Enable.CMOS_FPS_DATA		()//(cmos_fps_data)		//cmos frame rate
);//Seg7_lut	u7	(	cmos_fps_data[7:4],	oSEG7	);	//fsp rate
//Seg7_lut	u6	(	cmos_fps_data[3:0],	oSEG6	);	//fps rate//wire	[8:0]	alpha_data;					//alpha adjust data
//assign	led_data = alpha_data;				//diaplay alpha data
//alpha_control	u_alpha_control
//(
//	.clk				(clk_vga),			//vga clock
//	.rst_n				(sys_rst_n),		//global reset
//
//	.key_data			(key_data),			//key data
//	.alpha_data			(alpha_data)		//aplha adjust data
//);//-------------------------------------
//sdram vga ctrl system
wire			sys_we;						//system data write enable
wire	[15:0]	sys_data_in;				//system data input
wire			sdram_init_done;			//sdram init done
sdram_vga_top	u_sdram_vga_top
(//global clock.clk_vga			(clk_vga),			//vga clock.clk_ref			(clk_ref),			//sdram ctrl clock.clk_refout			(clk_refout),		//sdram clock output.rst_n				(sys_rst_n),		//global reset//sdram control.sdram_clk			(S_CLK),		//sdram clock.sdram_cke			(S_CKE),		//sdram clock enable.sdram_cs_n			(S_NCS),		//sdram chip select.sdram_we_n			(S_NWE),		//sdram write enable.sdram_cas_n		(S_NCAS),		//sdram column address strobe.sdram_ras_n		(S_NRAS),		//sdram row address strobe.sdram_udqm			(S_DQM[1]),		//sdram data enable (H:8).sdram_ldqm			(S_DQM[0]),		//sdram data enable (L:8).sdram_ba			(S_BA),			//sdram bank address.sdram_addr			(S_A),		//sdram address.sdram_data			(S_DB),		//sdram data//lcd port.lcd_dclk			(),			//lcd pixel clock			.lcd_hs				(VGA_HSYNC),			//lcd horizontal sync .lcd_vs				(VGA_VSYNC),			//lcd vertical sync.lcd_sync			(),//(lcd_sync),			//lcd sync.lcd_blank			(),		//lcd blank(L:blank).lcd_red			(VGAD[15:11]),			//lcd red data.lcd_green			(VGAD[10:5]),		//lcd green data.lcd_blue			(VGAD[4:0]),			//lcd blue data//user interface.clk_write			(CMOS_PCLK),			//fifo write clock.sys_we				(sys_we),			//fifo write enable.sys_data_in		(sys_data_in),		//fifo data input.sdram_init_done	(sdram_init_done),	//sdram init done.frame_valid		(frame_valid)		//frame valid
);endmodule
