应用后台网络管控机制

概述

   在维护手管应用时，经常遇到与应用后台网络控制相关的问题，在解决这些问题的过程中，学习了下应用后台网络控制的流程以及一些日志的分析方法，现在把它总结一下，方便自己以及他人的学习。

网络管控流程

   对于后台网络管控主要的参与者如下：

com.meizu.safe:NetworkManager
frameworks/base/services/core/java/com/android/server/net/NetworkPolicyManagerService.java
frameworks/base/services/core/java/com/android/server/NetworkManagementService.java

注：这里其实还有个底层的网络守护进程的参与，但是我们这里不做太多描述，只描述框架层以上的逻辑。

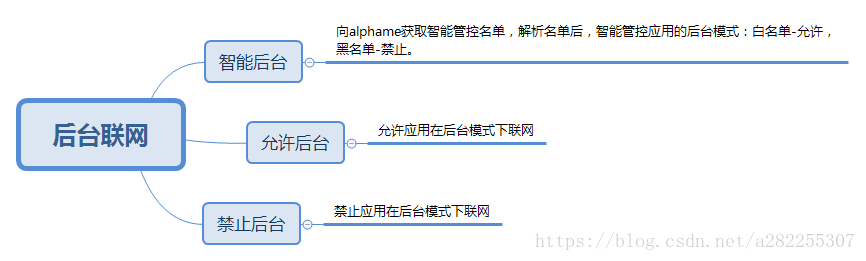

   在介绍总的流程时，先简单的介绍下NetworkManager，顾名思义其是手管中用以控制网络管理的组件，而在应用后台管理时，主要有三种模式，如下。

   从上图可以看出，三种模式中，智能模式其实是在应用规则前做了一层逻辑判断，但最终也是调用禁止或允许的接口，就不在赘述。

   下面大致介绍下后台网络管控的流程。

public void updateBackgroundAppInfo(String pkgName, final int controlType, final int uid) {int uid_key = -1;//获取转换后的过滤uid值if (-1 != uid) {uid_key = uid;} else {//to do parse fensheng app uidLog.d("myTemp66", "app install updateBackgroundAppInfo uid = -1");uid_key = transPkgToUid(mContext, pkgName);}//更新数据库boolean updateResult = trafficDataBase.updateAppControllType(uid, pkgName, controlType);Log.d("myTemp66", "updateBackgroundAppInfo --> updateResult:" + updateResult+ " pkgName:" + pkgName + " controlType:" + controlType + " uid:" + uid_key);if (TrafficConst.STATUS_VALUE_INTELLIGENCE == controlType && updateResult) {//当为智能类型时，才用获取智能模式下的后台联网设置状态AppAlphameInfo alphameInfo = trafficAlphameManager.doQueryAlpmeApp(pkgName, TrafficConst.STATUS_BACKGROUND);Log.d("myTemp66", "intelligence status: " + alphameInfo.toString());appBackGourndNetControl(uid_key, alphameInfo.isWifiState(), alphameInfo.isMobileState());} else if (TrafficConst.STATUS_VALUE_REJECT == controlType && updateResult) {appBackGourndNetControl(uid_key, false, false);Mtj.onEvent(mContext, Mtj.CLICK_TRAFFIC_BGD_APP_BAN, "后台联网应用禁止点击次数");} else if (TrafficConst.STATUS_VALUE_ALLOW == controlType && updateResult) {appBackGourndNetControl(uid_key, true, true);Mtj.onEvent(mContext, Mtj.CLICK_TRAFFIC_BGD_APP_ALLOW, "后台联网应用允许点击次数");}
}

   首先,在用户修改模式后,NetworkManager组件会调用updateBackgroundAppInfo()方法,而在这个方法中会调用updateAppControllType()方法去更新数据库,然后再调用appBackGourndNetControl()去设置后台网络控制。

/*** 设置底层后台流量数据控制接口（通讯组接口）* @param uid 应用的UID* @param isWifiControl WIFI控制：true为打开，false为关闭* @param isMobileControl Mobile控制（与wifi类似）*/
public void appBackGourndNetControl(int uid, boolean isWifiControl, boolean isMobileControl) {Log.i(TAG, "appBackGourndNetControl: uid:" + uid + " wifi:" + isWifiControl + " mobile:" + isMobileControl);if (isWifiControl) {//打开wifiif (!networkControllManager.isAppWifiBackgroundUsageOpened(uid)) {Log.d(TAG, "appBackGourndNetControl: change wifibackground open:" + uid);networkControllManager.openAppWifiBackgroundUsage(uid);}} else {//关闭wifiif (networkControllManager.isAppWifiBackgroundUsageOpened(uid)) {Log.d(TAG, "appBackGourndNetControl: change wifibackground close:" + uid);networkControllManager.closeAppWifiBackgroundUsage(uid);}}if (isMobileControl) {//打开后台移动网络if (!networkControllManager.isAppMobileBackgroundUsageOpened(uid)) {Log.d(TAG, "appBackGourndNetControl: change mobilebackground open:" + uid);networkControllManager.openAppMobileBackgroundUsage(uid);}} else {//关闭后台移动网络if (networkControllManager.isAppMobileBackgroundUsageOpened(uid)) {Log.d(TAG, "appBackGourndNetControl: change mobilebackground close:" + uid);networkControllManager.closeAppMobileBackgroundUsage(uid);}}
}public void closeAppWifiBackgroundUsage(String pkName) {int uid = PackageManagerUtil.getUid(pkName);Log.i(TAG, "close uid=" + uid + " background wifi net");addUidPolicy(new Object[]{uid, getPolicyRejectAppBackgroundNetWifi()});
}/*** 关闭网络．* @param args*/
private void addUidPolicy(Object... args) {Method addUidPolicyMethod = getAddUidPolicyMethod();try {addUidPolicyMethod.invoke(mNetWorkPolicyManager, args);} catch (IllegalAccessException e) {Log.e(TrafficConst.TRAFFIC_EXCEPTION, TAG + ":addUidPolicy --> " + e.toString());} catch (IllegalArgumentException e) {Log.e(TrafficConst.TRAFFIC_EXCEPTION, TAG + ":addUidPolicy --> " + e.toString());} catch (Exception e) {Log.e(TrafficConst.TRAFFIC_EXCEPTION, TAG + ":addUidPolicy --> " + e.toString());}
}

   在appBackGourndNetControl()方法中会通过NetworkControllManager类去调用关闭后台联网的接口,最终通过反射调用到框架层NetworkPolicyManagerService(NPMS)类中的addUidPolicy()方法。

@Override
public void addUidPolicy(int uid, int policy) {mContext.enforceCallingOrSelfPermission(MANAGE_NETWORK_POLICY, TAG);if (!UserHandle.isApp(uid)) {throw new IllegalArgumentException("cannot apply policy to UID " + uid);}synchronized (mRulesLock) {final int oldPolicy = mUidPolicy.get(uid, POLICY_NONE);policy |= oldPolicy;if (oldPolicy != policy) {setUidPolicyUncheckedLocked(uid, oldPolicy, policy, true);}}
}private void setUidPolicyUncheckedLocked(int uid, int policy, boolean persist) {mLastUidPolicy = getUidPolicy(uid);mUidPolicy.put(uid, policy);Slog.d(TAG, "mLastUidPolicy " + mLastUidPolicy + " " + policy);updateRulesForUidWifiAndMobileLocked(uid);// uid policy changed, recompute rules and persist policy.updateRulesForDataUsageRestrictionsLocked(uid);if (persist) {writePolicyLocked();}
}

   在addUidPolicy()方法中,最主要的是调用了setUidPolicyUncheckedLocked()方法,在这方法中,flyme系统添加了updateRulesForUidWifiAndMobileLocked()方法,去设置对应UID进程的网络的规则变化。而对于应用前后台状态改变网络管理,最主要的是updateRulesForDataUsageRestrictionsLocked()方法的管控,下面我们来看下该方法：

private void updateRulesForDataUsageRestrictionsLocked(int uid, boolean uidDeleted) {...//获取进程的策略final int uidPolicy = mUidPolicy.get(uid, POLICY_NONE);//获取进程旧规则final int oldUidRules = mUidRules.get(uid, RULE_NONE);//判断应用进程的前后台状态final boolean isForeground = isUidForegroundOnRestrictBackgroundLocked(uid);//表示是否在黑名单final boolean isBlacklisted = (uidPolicy & POLICY_REJECT_METERED_BACKGROUND) != 0;//表示是否在白名单final boolean isWhitelisted = mRestrictBackgroundWhitelistUids.get(uid);//旧规则final int oldRule = oldUidRules & MASK_METERED_NETWORKS;//新规则int newRule = RULE_NONE;// First step: define the new rule based on user restrictions and foreground state.//第一步，根据用户设置与前后台状态定义新网络规则if (isForeground) {if (isBlacklisted || (mRestrictBackground && !isWhitelisted)) {//暂时允许规则newRule = RULE_TEMPORARY_ALLOW_METERED;} else if (isWhitelisted) {//允许规则newRule = RULE_ALLOW_METERED;}} else {if (isBlacklisted) {//拒绝规则newRule = RULE_REJECT_METERED;} else if (mRestrictBackground && isWhitelisted) {newRule = RULE_ALLOW_METERED;}}//获取新的进程规则int newUidRules = newRule | (oldUidRules & MASK_ALL_NETWORKS);if (LOGV) {Slog.i(TAG, "updateRuleForRestrictBackgroundLocked(" + uid + ")"+ ": isForeground=" +isForeground+ ", isBlacklisted=" + isBlacklisted+ ", isWhitelisted=" + isWhitelisted+ ", oldRule=" + uidRulesToString(oldRule)+ ", newRule=" + uidRulesToString(newRule)+ ", newUidRules=" + uidRulesToString(newUidRules)+ ", oldUidRules=" + uidRulesToString(oldUidRules));}if (!isForeground && (uidPolicy & POLICY_REJECT_APP_BACKGROUND_NET_MOBILE) != 0) {newUidRules |= RULE_REJECT_BACKGROUND_MOBILE;}if (!isForeground && (uidPolicy & POLICY_REJECT_APP_BACKGROUND_NET_WIFI) != 0) {newUidRules |= RULE_REJECT_BACKGROUND_WIFI;}boolean rule3gBackgroundChanged = false;boolean ruleWifiBackgroundChanged = false;//第二步，根据状态的改变应用后台网控规则// Second step: apply bw changes based on change of state.//获取网络规则变化rule3gBackgroundChanged = ((oldUidRules & RULE_REJECT_BACKGROUND_MOBILE)^ (newUidRules & RULE_REJECT_BACKGROUND_MOBILE)) != 0;ruleWifiBackgroundChanged = ((oldUidRules & RULE_REJECT_BACKGROUND_WIFI)^ (newUidRules & RULE_REJECT_BACKGROUND_WIFI)) != 0;Slog.i(TAG, "rule3gBackgroundChanged " + uid + " " + rule3gBackgroundChanged);Slog.i(TAG, "ruleWifiBackgroundChanged " + uid + " " + ruleWifiBackgroundChanged);if (rule3gBackgroundChanged) {//获取移动数网络状态final boolean allow = (newUidRules & RULE_REJECT_BACKGROUND_MOBILE) == 0;Slog.i(TAG, "rule3gBackgroundChanged " + allow);try {//将规则设置到网络守护进程mNetworkManagerFlyme.setFirewallUidChainRule(uid, TYPE_MOBILE, allow);} catch (IllegalStateException e) {e.printStackTrace();} catch (RemoteException e) {e.printStackTrace();}}if (ruleWifiBackgroundChanged) {//获取无线网络状态final boolean allow = (newUidRules & RULE_REJECT_BACKGROUND_WIFI) == 0;Slog.i(TAG, "ruleWifiBackgroundChanged " + allow);try {//将规则设置到网络守护进程mNetworkManagerFlyme.setFirewallUidChainRule(uid, TYPE_WIFI, allow);} catch (IllegalStateException e) {e.printStackTrace();} catch (RemoteException e) {e.printStackTrace();}}// @}if (newUidRules == RULE_NONE) {mUidRules.delete(uid);} else {mUidRules.put(uid, newUidRules);}...//分发回调接口// Dispatch changed rule to existing listeners.mHandler.obtainMessage(MSG_RULES_CHANGED, uid, newUidRules).sendToTarget();}

   根据以上的代码，可以看到，后台网络控制主要分为两步：

1. 第一步，根据用户设置与前后台状态定义新网络规则；
2. 第二步，根据状态的改变应用后台网控规则；
3. 第三步，回调状态改变消息。

   在第一步里，有个判断进程前后台状态的方法isUidForegroundOnRestrictBackgroundLocked(),其最终调用的是isProcStateAllowedWhileOnRestrictBackgroundLocked()方法会根据进程的运状态去判断进程前后台的状态，当应用的状态小于等于所设定的值，系统即不认为应用处于后台状态，反之则是。

private boolean isUidForegroundOnRestrictBackgroundLocked(int uid) {final int procState = mUidState.get(uid, ActivityManager.PROCESS_STATE_CACHED_EMPTY);return isProcStateAllowedWhileOnRestrictBackgroundLocked(procState);
}static boolean isProcStateAllowedWhileOnRestrictBackgroundLocked(int procState) {// return procState <= ActivityManager.PROCESS_STATE_TOP;return procState <= ActivityManager.PROCESS_STATE_FOREGROUND_SERVICE;}

注：这里可能会是大多数应用现在无法被限制后台联网的原因，这是由于之前Google的GMS还未接入我们系统时，我们的设定的临界指是ActivityManager.PROCESS_STATE_TOP = 2，而接入Google的GMS后，由于要过CTS，用例要求我们需要将临界值修改为ActivityManager.PROCESS_STATE_FOREGROUND_SERVICE = 4;

   这里需要提下：应用进入后台时，AMS通过Binder通知NPMS, 然后NPMS检测应用是否在后台（查看 AMS 传递过来的processState），在禁止后台联网情况下，应用若在后台，则禁止访问网络；否则就允许。这块的代码逻辑如下

final private IUidObserver mUidObserver = new IUidObserver.Stub() {@Override public void onUidStateChanged(int uid, int procState) throws RemoteException {Slog.i(TAG, "onUidStateChanged uid=" + uid + " " + procState);synchronized (mRulesLock) {updateUidStateLocked(uid, procState);}updateNetworkStats(uid, isUidStateForegroundLocked(procState));}@Override public void onUidGone(int uid) throws RemoteException {synchronized (mRulesLock) {removeUidStateLocked(uid);}updateNetworkStats(uid, false);}@Override public void onUidActive(int uid) throws RemoteException {}@Override public void onUidIdle(int uid) throws RemoteException {}
};private void updateUidStateLocked(int uid, int uidState) {final int oldUidState = mUidState.get(uid, ActivityManager.PROCESS_STATE_CACHED_EMPTY);if (oldUidState != uidState) {// state changed, push updated rulesmUidState.put(uid, uidState);updateRestrictBackgroundRulesOnUidStatusChangedLocked(uid, oldUidState, uidState);if (isProcStateAllowedWhileIdleOrPowerSaveMode(oldUidState)!= isProcStateAllowedWhileIdleOrPowerSaveMode(uidState) ) {if (isUidIdle(uid)) {updateRuleForAppIdleLocked(uid);}if (mDeviceIdleMode) {updateRuleForDeviceIdleLocked(uid);}if (mRestrictPower) {updateRuleForRestrictPowerLocked(uid);}updateRulesForPowerRestrictionsLocked(uid);}}
}

   第二步中，获取到的新规则会通过Binder通信，调用网络管理服务NetworkManagementService（以下简称NMS）中的setFirewallUidChainRule方法，如下:

public void setFirewallUidChainRule(int uid, int networkType, boolean allow) {//enforceSystemUid();final String MOBILE = "mobile";final String WIFI = "wifi";final String rule = allow ? "allow" : "deny";final String chain = (networkType == 1) ? WIFI : MOBILE;try {//向网络守护进程发送执行事件mFlymeDaemonConnector.execute("firewall", "set_uid_fw_rule", uid, chain, rule);} catch (NativeDaemonConnectorException e) {throw e.rethrowAsParcelableException();}
}

   紧接着NMS会通过守护进程的连接者NativeDaemonConnector(NDC)使用Socket通信向守护进程发送对应的事件，从而让底层去根据事件来做出对应的反馈。

注：这里的通信流程由于代码比较多，就不附上了，有兴趣的可以搜索源码中NativeDaemonConnector这个类去查看。

   第三步，设置完规则后，NPMS会回调进程网络规则改变的接口，通知整个Android该应用的规则改变，从而完成后台网络控制。

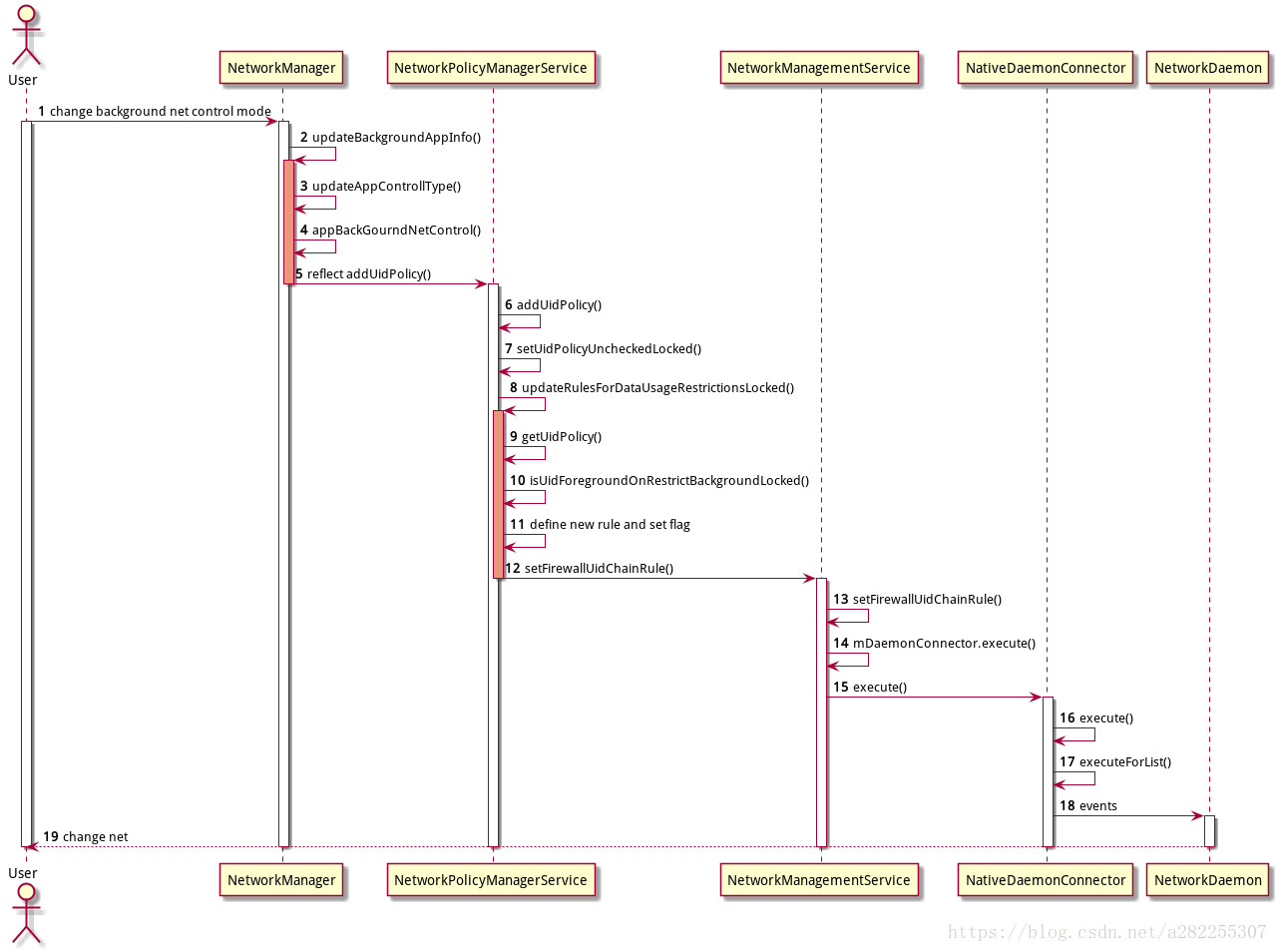

   简单的绘制了下该过程的流程，如下。

日志分析

   在分析这类网络问题的时候，学习了下日志分析方法，把它总结出来，以便学习查阅。

准备前提

1. 使用logreport抓取Log（包括NetWork Log）；
2. 使用以下指令抓取应用的前后台状态oom_adj；

while [ 1 ];do date +%Y-%m-%d-%H:%M:%S-%N;adb shell dumpsys activity oom| sed -En -e '/Proc .* trm:.*com.*\.youku/,/state: /p';printf "\n";sleep 1;done >oom_adj.txt

注：这里的.youku需要换成指定应用的包名信息

1. 使用以下指令抓取网络访问流量情况。

adb shell "while [ 1 ];do cat /proc/net/xt_qtaguid/stats |grep \"wlan0.*10081\";sleep 1;done"

注：10081指的是应用进程的uid，根据不同的应用进行修改

分析

Log

   对于Log，最主要的是mainlog、netpolicy以及辅助的eventlog（用以查看应用前后台状态）。

   分析mainlog时，首先从上层手管应用开始。

01-22 16:55:52.671 9321 9536 D myTemp66: 更新应用后台网络控制类型 记录已存在,更新 pkName=com.tencent.qqmusic, uid=10092
01-22 16:55:52.676 9321 9536 D myTemp66: updateBackgroundAppInfo --> updateResult:true pkgName:com.tencent.qqmusic controlType:0 uid:1009201-22 16:55:52.676 9321 9536 I TrafficControlImpl: appBackGourndNetControl: uid:10092 wifi:false mobile:false
01-22 16:55:52.676 9321 9536 D TrafficControlImpl: appBackGourndNetControl: change wifibackground close:10092
01-22 16:55:52.676 9321 9536 I trafficNetworkControll: close uid=10092 background wifi net
01-22 16:55:52.715 9321 9536 D TrafficControlImpl: appBackGourndNetControl: change mobilebackground close:10092
01-22 16:55:52.715 9321 9536 D trafficNetworkControll: close uid=10092 background modern net

   其中myTemp66指的是在修改模式后，手管去更新数据的打印日志，会根据更新的情况反馈不同的信息日志；TrafficControlImpl则是设置底层后台流量数据控制接口的日志；trafficNetworkControll则是成功调用底层接口的标志，从这些log上我们可以了解上层应用逻辑是否存在问题。

   其次是分析框架层日志。

//NPMS检测到优酷进入后台，
01-22 16:55:53.926702 3172 3172 D WifiService: onReceive, action:android.intent.action.SCREEN_OFF
01-22 16:55:53.932184 3172 3188 D NetworkPolicy: rule3gBackgroundChanged 10081 true
01-22 16:55:53.932238 3172 3188 D NetworkPolicy: ruleWifiBackgroundChanged 10081 true
01-22 16:55:53.973140 3172 3188 D NetworkPolicy: ruleWifiBackgroundChanged false // 禁止10081访问网络，并设定iptable
01-10 16:24:53.985761 321 3172 I iptables: /system/bin/iptables -I wifi -m owner --uid-owner 10081 -j REJECT --reject-with icmp-net-prohibited// 但是很快又检测到 优酷到了前台，
01-22 16:55:54.067005 3172 3172 D WifiStateMachine: onReceive, action:android.intent.action.SCREEN_ON
01-22 16:55:54.082619 3172 3188 D NetworkPolicy: rule3gBackgroundChanged 10081 true
01-22 16:55:54.082675 3172 3188 D NetworkPolicy: ruleWifiBackgroundChanged 10081 true
01-22 16:55:54.117942 3172 3188 D NetworkPolicy: ruleWifiBackgroundChanged true // 设定 优酷 允许访问网络
01-22 16:55:54.133298 321 3172 I iptables: /system/bin/iptables -D wifi -m owner --uid-owner 10081 -j REJECT --reject-with icmp-net-prohibited01-22 16:56:01.537 3172 3188 I NetworkPolicy: onUidStateChanged uid=10081 2//前台进程UID状态
01-22 16:56:19.745 3172 3188 I NetworkPolicy: onUidStateChanged uid=10081 3//后台进程UID状态

   NetworkPolicy: ruleWifiBackgroundChanged/rule3gBackgroundChanged false通过这条日志，可以判断进程在后台时的wifi或移动数据的状态，true表示可以联网，false表示禁止联网。iptables: /system/bin/iptables -I wifi -m owner --uid-owner 10081 -j REJECT --reject-with icmp-net-prohibited将联网信息设定到iptable中。通过以上日志就可以分析出，出问题应用进程在后台联网的状态。

   然后再根据dump中的netpolicy日志中的UID=10081 policy=[]REJECT_APP_BACKGROUND_NET_MOBILE
REJECT_APP_BACKGROUND_NET_WIFI进一步确认后台联网规则。

   从以上日志里，基本上可以提炼出一个应用进程从上层到框架层的后台联网信息。

注：上面的日志最后两条，onUidStateChanged，表示的就是AMS向NPMS发送进程状态改变的消息，最后一列的值表示进程在的状态值具体参考以下数据。

/** @hide Process is a persistent system process. */
public static final int PROCESS_STATE_PERSISTENT = 0;/** @hide Process is a persistent system process and is doing UI. */
public static final int PROCESS_STATE_PERSISTENT_UI = 1;/** @hide Process is hosting the current top activities.  Note that this covers* all activities that are visible to the user. */
public static final int PROCESS_STATE_TOP = 2;/** @hide Process is hosting a foreground service due to a system binding. */
public static final int PROCESS_STATE_BOUND_FOREGROUND_SERVICE = 3;/** @hide Process is hosting a foreground service. */
public static final int PROCESS_STATE_FOREGROUND_SERVICE = 4;/** @hide Same as {@link #PROCESS_STATE_TOP} but while device is sleeping. */
public static final int PROCESS_STATE_TOP_SLEEPING = 5;/** @hide Process is important to the user, and something they are aware of. */
public static final int PROCESS_STATE_IMPORTANT_FOREGROUND = 6;/** @hide Process is important to the user, but not something they are aware of. */
public static final int PROCESS_STATE_IMPORTANT_BACKGROUND = 7;/** @hide Process is in the background running a backup/restore operation. */
public static final int PROCESS_STATE_BACKUP = 8;/** @hide Process is in the background, but it can't restore its state so we want* to try to avoid killing it. */
public static final int PROCESS_STATE_HEAVY_WEIGHT = 9;/** @hide Process is in the background running a service.  Unlike oom_adj, this level* is used for both the normal running in background state and the executing* operations state. */
public static final int PROCESS_STATE_SERVICE = 10;/** @hide Process is in the background running a receiver.   Note that from the* perspective of oom_adj receivers run at a higher foreground level, but for our* prioritization here that is not necessary and putting them below services means* many fewer changes in some process states as they receive broadcasts. */
public static final int PROCESS_STATE_RECEIVER = 11;/** @hide Process is in the background but hosts the home activity. */
public static final int PROCESS_STATE_HOME = 12;/** @hide Process is in the background but hosts the last shown activity. */
public static final int PROCESS_STATE_LAST_ACTIVITY = 13;/** @hide Process is being cached for later use and contains activities. */
public static final int PROCESS_STATE_CACHED_ACTIVITY = 14;/** @hide Process is being cached for later use and is a client of another cached* process that contains activities. */
public static final int PROCESS_STATE_CACHED_ACTIVITY_CLIENT = 15;/** @hide Process is being cached for later use and is empty. */
public static final int PROCESS_STATE_CACHED_EMPTY = 16;

oom_adj分析

   oom_adj是dumpsys activity p 中表示应用进程状态的信息，以下是截取的QQ应用以及微信在N机器的上的前后台信息。

QQ前台状态
2018-02-06-15:01:10-625398404
Proc # 0: fore T/A/T trm: 0 16235:com.tencent.mobileqq/u0a100 (top-activity)
oom: max=1001 curRaw=0 setRaw=0 cur=0 set=0
state: cur=T set=T lastPss=166MB lastSwapPss=11MB lastCachedPss=0.00
Proc # 6: vis F/ /T trm: 0 18259:com.tencent.mobileqq:TMAssistantDownloadSDKService/u0a100 (service)
com.tencent.mobileqq/com.tencent.tmdownloader.TMAssistantDownloadService<=Proc{16235:com.tencent.mobileqq/u0a100}
oom: max=1001 curRaw=100 setRaw=100 cur=100 set=100
state: cur=T set=T lastPss=21MB lastSwapPss=603KB lastCachedPss=0.00
Proc # 1: vis F/ /SB trm: 0 16285:com.tencent.mobileqq:MSF/u0a100 (service)
com.tencent.mobileqq/.msf.service.MsfService<=Proc{21231:com.tencent.mobileqq:qzone/u0a100}
oom: max=1001 curRaw=100 setRaw=100 cur=100 set=100
state: cur=SB set=SB lastPss=28MB lastSwapPss=4.3MB lastCachedPss=0.00
Proc # 5: svc B/ /S trm: 0 21231:com.tencent.mobileqq:qzone/u0a100 (started-services)
oom: max=1001 curRaw=500 setRaw=500 cur=500 set=500
state: cur=S set=S lastPss=0.00 lastSwapPss=0.00 lastCachedPss=0.00QQ后台状态2018-02-06-15:01:11-698162429
Proc # 6: prcp F/ /SB trm: 0 18259:com.tencent.mobileqq:TMAssistantDownloadSDKService/u0a100 (service)
com.tencent.mobileqq/com.tencent.tmdownloader.TMAssistantDownloadService<=Proc{16235:com.tencent.mobileqq/u0a100}
oom: max=1001 curRaw=200 setRaw=200 cur=200 set=200
state: cur=SB set=SB lastPss=21MB lastSwapPss=603KB lastCachedPss=0.00
Proc # 2: prcp F/ /SB trm: 0 16285:com.tencent.mobileqq:MSF/u0a100 (service)
com.tencent.mobileqq/.msf.service.MsfService<=Proc{16235:com.tencent.mobileqq/u0a100}
oom: max=1001 curRaw=200 setRaw=200 cur=200 set=200
state: cur=SB set=SB lastPss=28MB lastSwapPss=4.3MB lastCachedPss=0.00
Proc # 1: prcp F/S/SB trm: 0 16235:com.tencent.mobileqq/u0a100 (fg-service)
oom: max=1001 curRaw=200 setRaw=200 cur=200 set=200
state: cur=SB set=SB lastPss=166MB lastSwapPss=11MB lastCachedPss=0.00
Proc # 5: svc B/ /S trm: 0 21231:com.tencent.mobileqq:qzone/u0a100 (started-services)
oom: max=1001 curRaw=500 setRaw=500 cur=500 set=500
state: cur=S set=S lastPss=0.00 lastSwapPss=0.00 lastCachedPss=0.00微信前台状态
2018-02-06-15:55:22-743317581
Proc # 0: fore T/A/T trm: 0 23765:com.tencent.mm/u0a99 (top-activity)
oom: max=1001 curRaw=0 setRaw=0 cur=0 set=0
state: cur=T set=T lastPss=138MB lastSwapPss=8.8MB lastCachedPss=76MB
Proc # 3: vis F/ /SB trm: 0 14557:com.tencent.mm:push/u0a99 (service)
com.tencent.mm/.booter.CoreService<=Proc{23765:com.tencent.mm/u0a99}
oom: max=1001 curRaw=100 setRaw=100 cur=100 set=100
state: cur=SB set=SB lastPss=15MB lastSwapPss=3.4MB lastCachedPss=0.00
Proc #36: svcb B/ /S trm: 0 24482:com.tencent.mm:sandbox/u0a99 (started-services)
oom: max=1001 curRaw=800 setRaw=800 cur=800 set=800
state: cur=S set=S lastPss=24MB lastSwapPss=308KB lastCachedPss=0.00
Proc # 5: cch B/ /CE trm: 0 25785:com.tencent.mm:appbrand0/u0a99 (cch-empty)
oom: max=1001 curRaw=900 setRaw=900 cur=900 set=900
state: cur=CE set=CE lastPss=14MB lastSwapPss=240KB lastCachedPss=14MB
Proc #19: cch+2 B/ /CE trm: 0 25918:com.tencent.mm:tools/u0a99 (cch-empty)
oom: max=1001 curRaw=902 setRaw=902 cur=902 set=902
state: cur=CE set=CE lastPss=17MB lastSwapPss=255KB lastCachedPss=17MB微信后台状态
2018-02-06-15:55:23-830229592
Proc # 3: svc B/ /S trm: 0 14557:com.tencent.mm:push/u0a99 (started-services)
oom: max=1001 curRaw=500 setRaw=500 cur=500 set=500
state: cur=S set=S lastPss=15MB lastSwapPss=3.4MB lastCachedPss=0.00
Proc # 1: prev B/ /S trm: 0 23765:com.tencent.mm/u0a99 (cch-started-ui-services)
oom: max=1001 curRaw=700 setRaw=700 cur=700 set=700
state: cur=S set=S lastPss=138MB lastSwapPss=8.8MB lastCachedPss=76MB
Proc #36: svcb B/ /S trm: 0 24482:com.tencent.mm:sandbox/u0a99 (started-services)
oom: max=1001 curRaw=800 setRaw=800 cur=800 set=800
state: cur=S set=S lastPss=24MB lastSwapPss=308KB lastCachedPss=0.00
Proc # 5: cch B/ /CE trm: 0 25785:com.tencent.mm:appbrand0/u0a99 (cch-empty)
oom: max=1001 curRaw=900 setRaw=900 cur=900 set=900
state: cur=CE set=CE lastPss=14MB lastSwapPss=240KB lastCachedPss=14MB
Proc #19: cch+2 B/ /CE trm: 0 25918:com.tencent.mm:tools/u0a99 (cch-empty)
oom: max=1001 curRaw=902 setRaw=902 cur=902 set=902
state: cur=CE set=CE lastPss=17MB lastSwapPss=255KB lastCachedPss=17MB

   从log中可以清楚的看到状态信息的变化，从这边的结果看，QQ是无法正常禁止后台联网，微信可以（微信可能第一个消息收的到，后面发的消息收不到）。而产生这个问题的原因是这样的，谷歌CTS要求我们的网控机制判断应用前后台的状态的临界点是ActivityManager.PROCESS_STATE_FOREGROUND_SERVICE = 4，qq退到后台的状态是ActivityManager.PROCESS_STATE_BOUND_FOREGROUND_SERVICE = 3，不满足我们禁网的条件；微信退到后台的状态是ActivityManager.PROCESS_STATE_SERVICE = 10，满足禁网的条件，所以才会导致这样的问题。

   因此以后遇到这类的问题，可以先从这步入手。

流量log
   抓这个log主要是为了查看应用在后台联网时，是否有流量的使用，直接上图吧。

结语

   基本上一个应用的后台联网问题，可以通过以上分析方法去分析，然后根据结果去找对应的人设去处理，上述分析，如有问题或者疑问可以相互交流。
